(a) How much charge can be placed on a capacitor with air between the plates before...

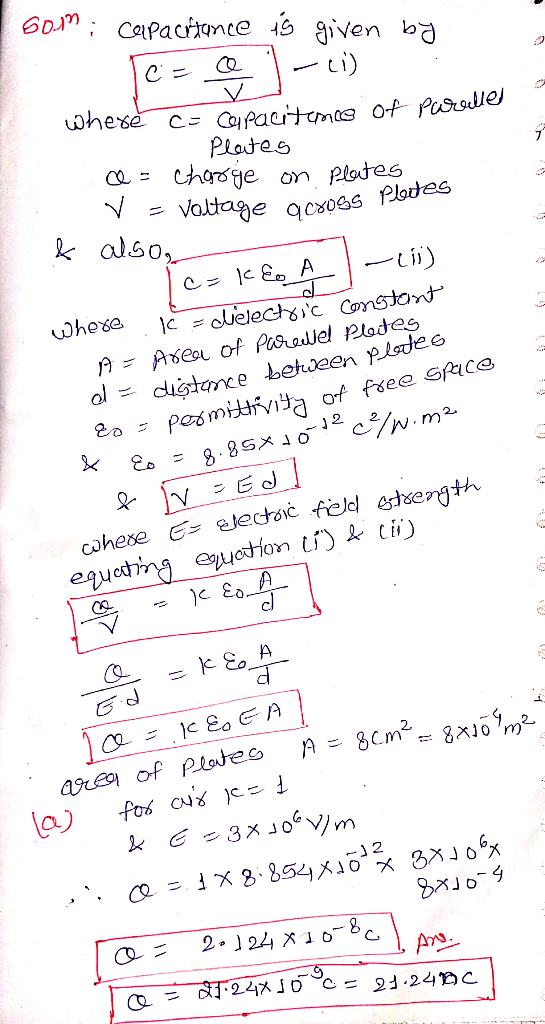

(a) How much charge can be placed on a capacitor with air between the plates before it breaks down if the area of each plate is 8.00 cm²?
____ nC

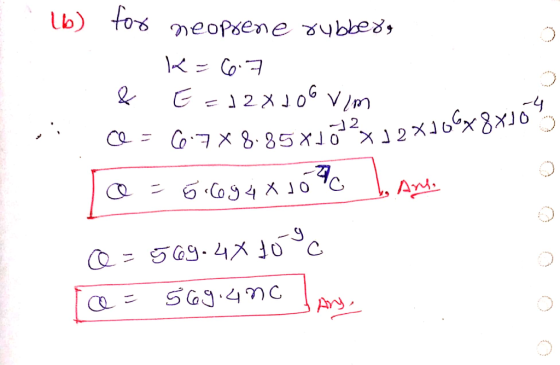

(b) Find the maximum charge if neoprene rubber is used between the plates instead of air.

____ nC

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment
