1) Which of these molecules have resonance structures? If they have resonance structures, list how many...

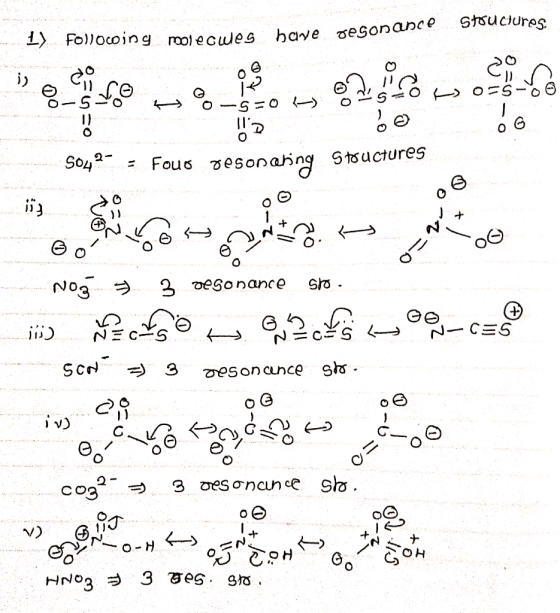

1) Which of these molecules have resonance structures? If they have resonance structures, list how many for each.

2) Which of these molecules have an overall dipole moment?

CH₄

CH₂Cl₂

CH₄O

H₂O

H₃O⁺

HF

N₂

NH₃

C₂H₄

C₂H₂

C₂H₂Br₂

C₂H₆

SO₄^2-

NO₃^-

CO₂

SCN^-

CO₃^2-

HNO₃

science chemistry

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
