Compare the electric energy that can be stored in a capacitor to the magnetic energy that...
Compare the electric energy that can be stored in a capacitor to the magnetic energy that can be stored in an inductor of the same size (that is, the same volume). For the capacitor, assume that air is between the plates; the maximum electric field is then the breakdown strength of air, about 3 MV/m. The maximum magnetic field attainable in an ordinary solenoid with an air core is on the order of 10 T.

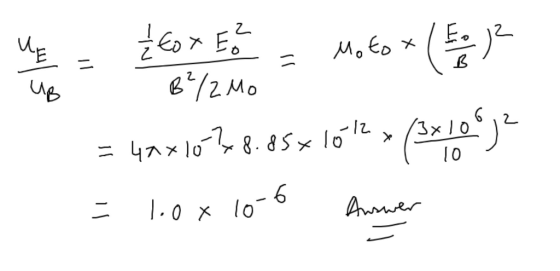

uE /uB = __× 10^__
Homework Answers
Add Answer to:
Compare the electric energy that can be stored in a capacitor to
the magnetic energy that...
The dielectric in a capacitor serves two purposes. It increases the capacitance, compared to an otherwise...
The dielectric in a capacitor serves two purposes. It increases the capacitance, compared to an otherwise identical capacitor with an air gap, and it increases the maximum potential difference the capacitor can support. If the electric field in a material is sufficiently strong, the material will suddenly become able to conduct, creating a spark. The critical field strength, at which breakdown occurs, is 3.0 MV/m for air, but 60 MV/m for Teflon. A parallel-plate capacitor consists of two square plates...
The dielectric in a capacitor serves two purposes. It increases the capacitance, compared to an otherwise...
The dielectric in a capacitor serves two purposes. It increases the capacitance, compared to an otherwise identical capacitor with an air gap, and it increases the maximum potential difference the capacitor can support. If the electric field in a material is sufficiently strong, the material will suddenly become able to conduct, creating a spark. The critical field strength, at which breakdown occurs, is 3.0 MV/m for air, but 60 MV/m for Teflon. 1. A parallel-plate capacitor consists of two square...
What is the maximum charge that can be stored on the 1.90-cm2 plates of an air-filled...
What is the maximum charge that can be stored on the 1.90-cm2
plates of an air-filled parallel-plate capacitor before breakdown
occurs? The dielectric strength of air is 3.00 MV/m.
C
If you could show a step by step solution, that would be
great.
13.。-M points KatzPSEf1 27,P.071 My Notes Ask Your Tea What is the maximum charge that can be stored on the 1.90-cm2 plates of an air-filled parallel-plate capacitor before breakdown occurs? The dielectric strength of air is 3.00...
Write down an expression for the energy stored in the magnetic field of an inductor when...
Write down an expression for the energy stored in the magnetic field of an inductor when the current is i. Use this expression to derive an equation for the magnetic energy density of a solenoid. A resistor, inductor and capacitor all store energy through different mechanisms. Briefly describe the way that each of these components stores energy
A parallel plate capacitor is made of plates of area 0.05 m? each. The plates are...
A parallel plate capacitor is made of plates of area 0.05 m? each. The plates are separated by a distance of 0.200 mm. Initially, the space between the plates is filled with air. (a) What is the capacitance of this air-filled capacitor? (b) If the electric field inside the capacitor exceeds 3.00 x 106 V/m, the air undergoes electrical break- down. (This maximum field is known as the dielectric strength of air.) From this, calculate the maxi- mum voltage (potential...
plz answer all and give exolination thanks 4. The magnetic field inside a superconducting solenoid is...
plz answer all and give exolination thanks 4. The magnetic field inside a superconducting solenoid is 4.70 T. The solenoid has an inner diameter of 6.20 cm and a length of 26.0 cm. (a) Determine the magnetic energy density in the field. uB = J / m3 (b) Determine the energy stored in the magnetic field within the solenoid. UB = kJ 5.–/2 pointsPSE6 32.P.032. At t = 0, an emf of 540 V is applied to a coil that...
An air capacitor is made from two flat parallel plates 2.15 mm apart. The magnitude of...
An air capacitor is made from two flat parallel plates 2.15 mm apart. The magnitude of charge on each plate is 0.0153 mu C when the potential difference is 200 V. (a) What is the capacitance? PF (b) What is the area of each plate? m^2 (c) What maximum voltage can be applied without dielectric breakdown? (Dielectric breakdown for air occurs at an electric-field strength of 3.00 times 10^6 V/m.) V (d) When the charge is 0.0153 mu C, what...
QUESTION 6 What happens to the electric field in the capacitor as the charge, Q, stored...
QUESTION 6 What happens to the electric field in the capacitor as the charge, Q, stored in it increases? The field increases as Q. The field decreases as 1/Q. The field increases as Q2. The field decreases as 17Q2. QUESTION 7 A parallel plate capacitor Creates an electric field by pulling electrons off of atoms in the air Creates a uniform electric field between two oppositely charged plates Creates a uniform electric field between two plates with the same sign...
The electric potential energy stored in the capacitor of a defibrillator is 63 , and the...
The electric potential energy stored in the capacitor of a defibrillator is 63 , and the capacitance is 114 what is the potential difference that exists across the capacitor plates?
<CH 21 HW 14 of 15 Problem 21.85 Review Constants Periodic Table Part A The dielectric...
<CH 21 HW 14 of 15 Problem 21.85 Review Constants Periodic Table Part A The dielectric in a capacitor serves two purposes. It Increases the capacitance, compared to an otherwise identical capacitor with an air gap, and it increases the maximum potential difference the capacitor can support. If the electric field in a material is sufficiently strong, the material wil suddenly become able to conduct, creating a spark. The critical field strength, at which breakdown occurs, is 3.0 MV/m for...
What is the maximum charge that can be stored on the 1.90-cm2
plates of an air-filled parallel-plate capacitor before breakdown
occurs? The dielectric strength of air is 3.00 MV/m.
C
If you could show a step by step solution, that would be
great.
13.。-M points KatzPSEf1 27,P.071 My Notes Ask Your Tea What is the maximum charge that can be stored on the 1.90-cm2 plates of an air-filled parallel-plate capacitor before breakdown occurs? The dielectric strength of air is 3.00...
Write down an expression for the energy stored in the magnetic field of an inductor when the current is i. Use this expression to derive an equation for the magnetic energy density of a solenoid. A resistor, inductor and capacitor all store energy through different mechanisms. Briefly describe the way that each of these components stores energy
A parallel plate capacitor is made of plates of area 0.05 m? each. The plates are separated by a distance of 0.200 mm. Initially, the space between the plates is filled with air. (a) What is the capacitance of this air-filled capacitor? (b) If the electric field inside the capacitor exceeds 3.00 x 106 V/m, the air undergoes electrical break- down. (This maximum field is known as the dielectric strength of air.) From this, calculate the maxi- mum voltage (potential...
An air capacitor is made from two flat parallel plates 2.15 mm apart. The magnitude of charge on each plate is 0.0153 mu C when the potential difference is 200 V. (a) What is the capacitance? PF (b) What is the area of each plate? m^2 (c) What maximum voltage can be applied without dielectric breakdown? (Dielectric breakdown for air occurs at an electric-field strength of 3.00 times 10^6 V/m.) V (d) When the charge is 0.0153 mu C, what...
QUESTION 6 What happens to the electric field in the capacitor as the charge, Q, stored in it increases? The field increases as Q. The field decreases as 1/Q. The field increases as Q2. The field decreases as 17Q2. QUESTION 7 A parallel plate capacitor Creates an electric field by pulling electrons off of atoms in the air Creates a uniform electric field between two oppositely charged plates Creates a uniform electric field between two plates with the same sign...
The electric potential energy stored in the capacitor of a defibrillator is 63 , and the capacitance is 114 what is the potential difference that exists across the capacitor plates?
<CH 21 HW 14 of 15 Problem 21.85 Review Constants Periodic Table Part A The dielectric in a capacitor serves two purposes. It Increases the capacitance, compared to an otherwise identical capacitor with an air gap, and it increases the maximum potential difference the capacitor can support. If the electric field in a material is sufficiently strong, the material wil suddenly become able to conduct, creating a spark. The critical field strength, at which breakdown occurs, is 3.0 MV/m for...
