The dielectric in a capacitor serves two purposes. It increases the capacitance, compared to an otherwise identical capacitor with an air gap, and it increases the maximum potential difference the capacitor can support. If the electric field in a material is sufficiently strong, the material will suddenly become able to conduct, creating a spark. The critical field strength, at which breakdown occurs, is 3.0 MV/m for air, but 60 MV/m for Teflon.
1. A parallel-plate capacitor consists of two square plates 17 cm on a side, spaced 0.40 mm apart with only air between them. What is the maximum energy that can be stored by the capacitor?
Express your answer in joules.
2. What is the maximum energy that can be stored if the plates are separated by a 0.40-mm-thick Teflon sheet?
Express your answer in joules.
|
|

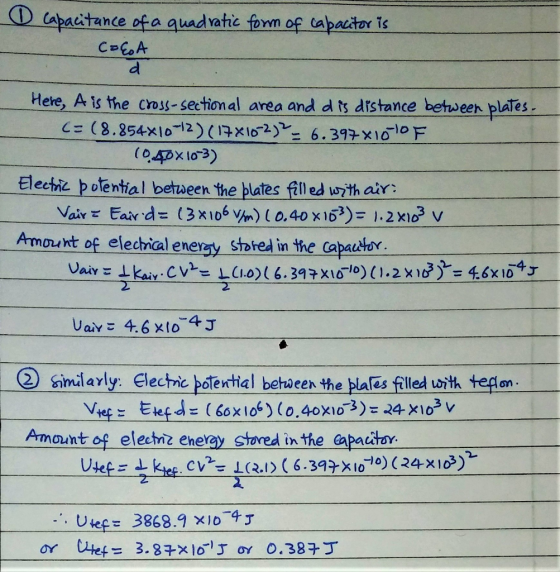

Homework Answers
Alright
Dude, If that worked for you... dont forget to give THUMBS UP.(that
will work for me!)
Please Vote...
If I missed something feel free to leave a comment.
atleast before giving downvote.
and, Thanks for using Chegg- Smarter way to study.
