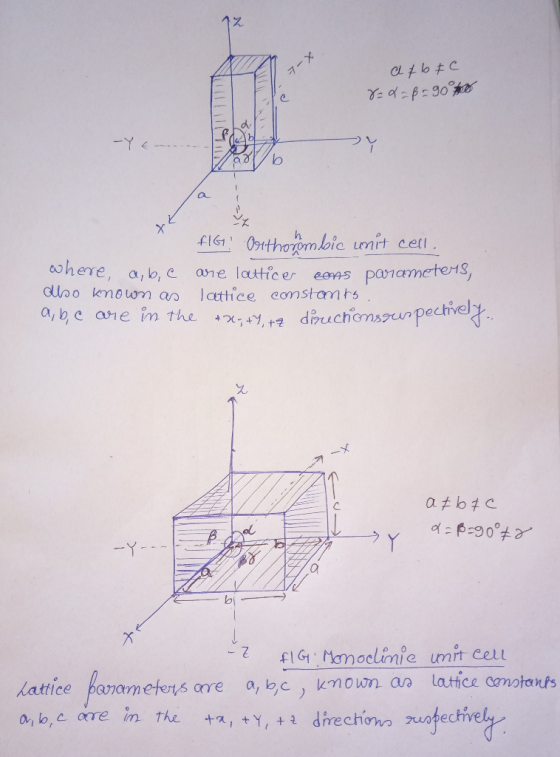

Sketch (a) an Orthorhombic unit cell and (b) a Monoclinic unit cell. Label the lattice parameters...
Sketch (a) an Orthorhombic unit cell and (b) a Monoclinic unit cell. Label the lattice parameters that are required to completely describe each. (2 marks)
physics
Homework Answers
Add Answer to:
Sketch (a) an Orthorhombic unit cell and (b) a Monoclinic unit
cell. Label the lattice parameters...
Consider an orthorhombic unit cell containing 4 atoms where the lattice parameters have the following relationship:...
Consider an orthorhombic unit cell containing 4 atoms where the lattice parameters have the following relationship: a = 2.5b = 1.5c. If the atomic radius, R, of the component atom is related to the lattice by R=0.5b, what is the Atomic Packing Factor for this unit cell?
C-centered Bravais lattices exist in the monoclinic and orthorhombic systems but not in the tetragonal system....
C-centered Bravais lattices exist in the monoclinic and orthorhombic systems but not in the tetragonal system. That is because the C-centered tetragonal lattice is equivalent to one of the other Bravais lattices. Which one is it? Show with a drawing how that lattice is related to the C-centered tetragonal lattice. How many atoms are in the unit cell of that lattice?
How to sketch the tetragonal unit cell with lattice parameters {2, 2, 3, 90, 90, 90}...
How to sketch the tetragonal unit cell with lattice parameters {2, 2, 3, 90, 90, 90} and outline the planes (using a separate unit cell sketch for each plane).
a) Sketch a unit cell of a bcc lattice b) Compute the atomic packing factor for...
a) Sketch a unit cell of a bcc lattice b) Compute the atomic packing factor for the bcc lattice. c) How much does the atomic packing factor change if the lattice is defective and one in every 10 atoms is missing from the lattice?
A1 The primitive lattice vectors of a 2-dimensional lattice where and are unit vectors along the...
A1 The primitive lattice vectors of a 2-dimensional lattice where and are unit vectors along the horizontal and vertical, respectively. Sketch this lattice, including on your sketch the lattice points, primitive vectors, and primitive unit cell ax and p2 (a/2)( are p Write down an expression for the conventional lattice vectors, and state the number of lattice points in a conventional unit cell Draw conventional lattice vectors on your sketch 6 Marks A2 m) atoms at each site, the dispersion...
5) For the following structure, give the Bravais lattice and determine the lattice parameters, the packing...
5) For the following structure, give the Bravais lattice and determine the lattice parameters, the packing factor and the theoretical density. If the unit cell is smaller than that shown, sketch the smaller unit cell. Show your work. Open circles represent A atoms: ra = 1.5 Å, AWA = 100 g/mole Filled circles represent B atoms: rb = 1.0 Å, AWB = 40 g/mole Cross-hatched (or gray) circles represent: C atoms: rc = 1.3 Å, AWB = 60 g/mole Na...
Zinc has an HCP unit cell for which the ratio of the lattice parameters c/a is...
Zinc has an HCP unit cell for which the ratio of the lattice parameters c/a is 1.85. If the radius of the Zn atom is 0.1332 nm. a) determine the unit cell volume (You can still assume a = 2r the 2D planes are just not closely packed anymore) b) calculate the density of Zn and compare it with the literature value. *Explain why the values might be different.
The crystal lattice and lattice parameters of sodium chloride (NaCl) salt are given below. a =...
The crystal lattice and lattice parameters of sodium chloride (NaCl) salt are given below. a = b = c = 2.8 A, a=B=y=90° Atomic radii (in A): Ina -1.80 and rc -1.00 Ionic radii (in A): Na+ = 1.13 and Ta-- 1.67 (a) Identify the lattice points and unit cell of NaCl. (3 marks) (b) Name the Bravais lattice of NaCl. (1 mark) (c) Determine the density (ing cm) of Naci. (3 marks) (d) Determine the atomic packing factor of...
8. The monoclinic unit cell is shown below including the angles of the cell. How many...
8. The monoclinic unit cell is shown below including the angles of the cell. How many atoms below exclusively to the unit cell? Is this primitive or non-primitive? Use the angels as a guide the identify the a, b and c edges on the drawing at left. Please show (draw) the two-fold axis and the mirror plane on the model at right. 222 </ 2 w2
2) The primitive translation vectors of a hexagonal space lattice of parameters a and c are...
2) The primitive translation vectors of a hexagonal space lattice of parameters a and c are given by -; (53i+j) (-53i+j) PCR a- Find the volume of the unit cell, primitive cell and Wigner-Seitz cell. b. Show that the reciprocal lattice has also hexagonal symmetry with parameters c , then calculate the volume of a primitive cell in the reciprocal space (vr).
A1 The primitive lattice vectors of a 2-dimensional lattice where and are unit vectors along the horizontal and vertical, respectively. Sketch this lattice, including on your sketch the lattice points, primitive vectors, and primitive unit cell ax and p2 (a/2)( are p Write down an expression for the conventional lattice vectors, and state the number of lattice points in a conventional unit cell Draw conventional lattice vectors on your sketch 6 Marks A2 m) atoms at each site, the dispersion...
5) For the following structure, give the Bravais lattice and determine the lattice parameters, the packing factor and the theoretical density. If the unit cell is smaller than that shown, sketch the smaller unit cell. Show your work. Open circles represent A atoms: ra = 1.5 Å, AWA = 100 g/mole Filled circles represent B atoms: rb = 1.0 Å, AWB = 40 g/mole Cross-hatched (or gray) circles represent: C atoms: rc = 1.3 Å, AWB = 60 g/mole Na...
The crystal lattice and lattice parameters of sodium chloride (NaCl) salt are given below. a = b = c = 2.8 A, a=B=y=90° Atomic radii (in A): Ina -1.80 and rc -1.00 Ionic radii (in A): Na+ = 1.13 and Ta-- 1.67 (a) Identify the lattice points and unit cell of NaCl. (3 marks) (b) Name the Bravais lattice of NaCl. (1 mark) (c) Determine the density (ing cm) of Naci. (3 marks) (d) Determine the atomic packing factor of...
8. The monoclinic unit cell is shown below including the angles of the cell. How many atoms below exclusively to the unit cell? Is this primitive or non-primitive? Use the angels as a guide the identify the a, b and c edges on the drawing at left. Please show (draw) the two-fold axis and the mirror plane on the model at right. 222 </ 2 w2
2) The primitive translation vectors of a hexagonal space lattice of parameters a and c are given by -; (53i+j) (-53i+j) PCR a- Find the volume of the unit cell, primitive cell and Wigner-Seitz cell. b. Show that the reciprocal lattice has also hexagonal symmetry with parameters c , then calculate the volume of a primitive cell in the reciprocal space (vr).
