a) Sketch a unit cell of a bcc lattice b) Compute the atomic packing factor for...

Question

Question

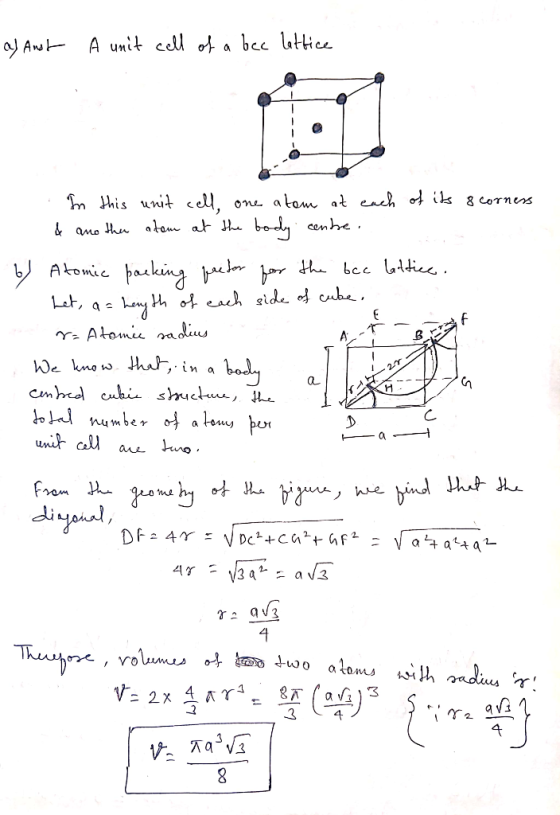

a) Sketch a unit cell of a bcc lattice

b) Compute the atomic packing factor for the bcc lattice.

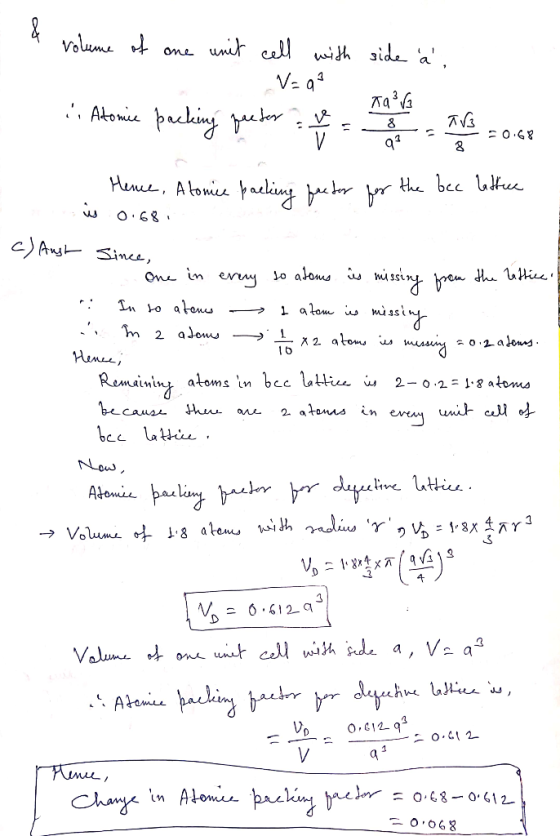

c) How much does the atomic packing factor change if the lattice is defective and one in every 10 atoms is missing from the lattice?

engineering Chemical-Engineering

Answer 1

Answer #1

Thanks, please upvote.

Answer 2
