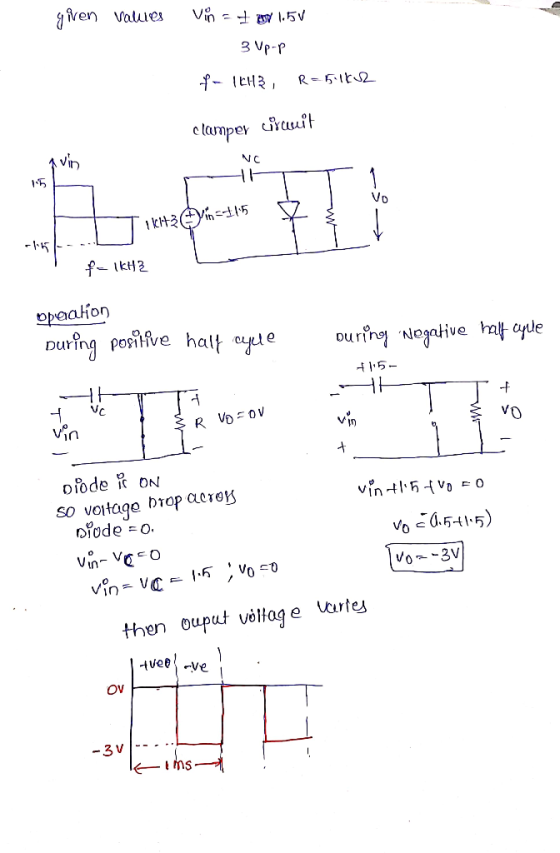

Design a clamper to clamp the upper limit of the input voltage
to 0 V. Assume that the input signal is I kHz and that the load is
5.1 k ohms. Construct the design circuit and use a 1 kHz, 3Vp-p
square wave input signal. Use a IN4148 diode. Measure and capture
the input and output
waveforms. Note what happens when the input amplitude is
varied.
