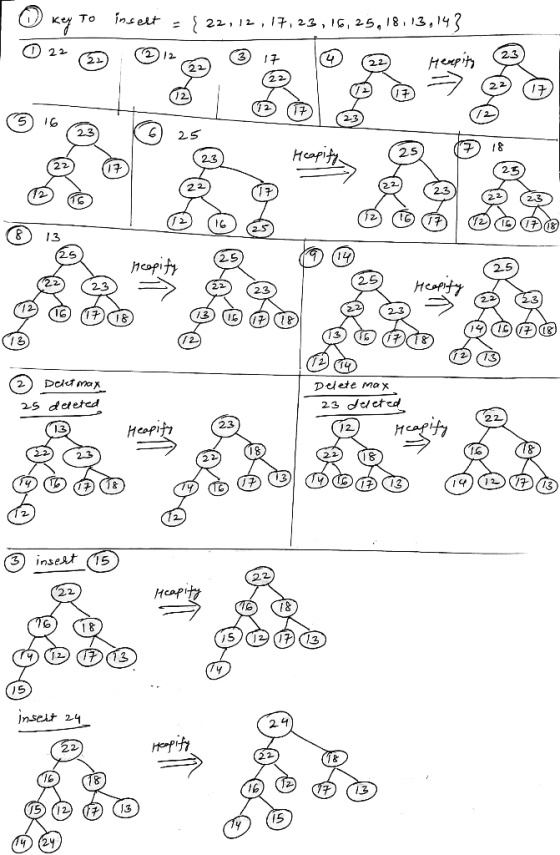

1. Show the result of inserting the following keys into a heap. {22, 12, 17, 23, 16, 25, 18, 13, 14}

2. Show what would happen if two deleteMax operations were completed.

3. Show what would happen when {15, 24} are inserted.

Assume that higher numbers have higher priority.

engineering Computer-Science

Answer 1

Answer #1

Answer 2
