A wave has a height of 1.5 m in water 5 m deep and a wave period of 6 s.

Plot the horizontal component of velocity, the vertical component of acceleration,

and the dynamic pressure at a point 2 m below the still water level versus

time for a 6-s interval. Plot the three values on the same diagram and comment

on the results.

engineering Civil-Engineering

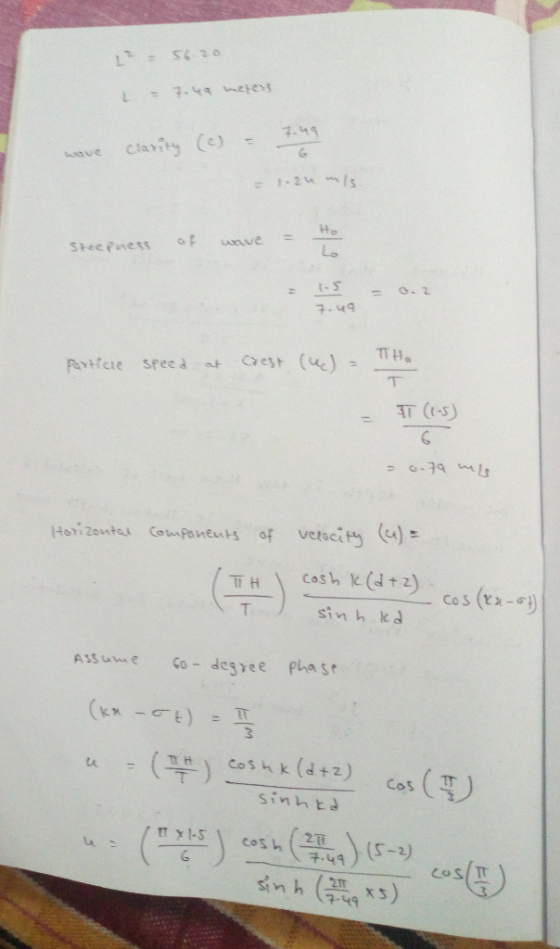

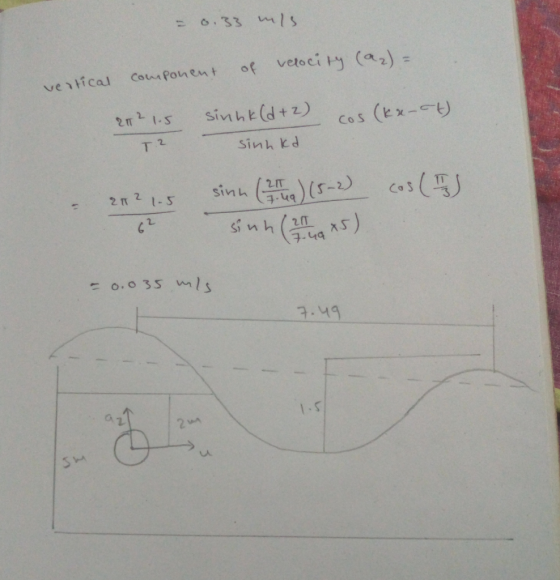

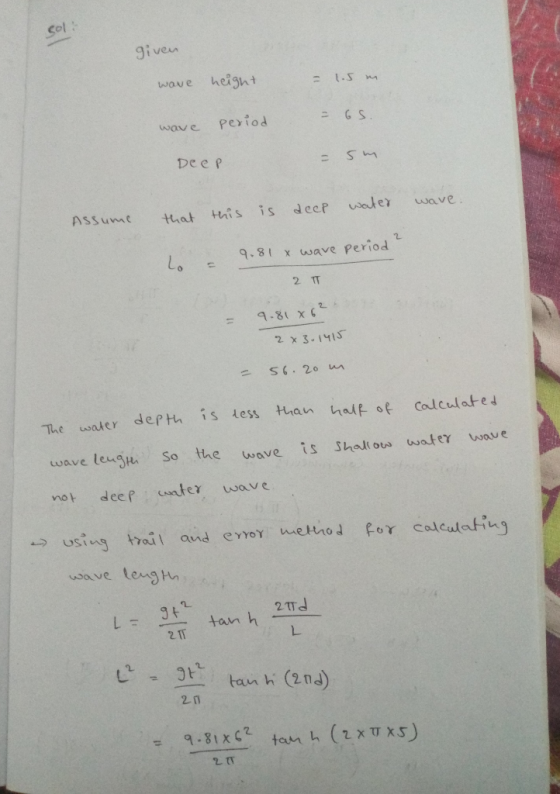

Answer 1

Answer #1

Answer 2
