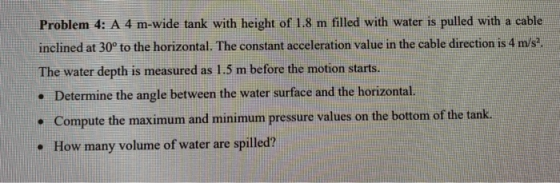

Problem 4: A 4 m-wide tank with height of 1.8 m filled with water is pulled...
A tank is filled with water to a height H, 22 m. A hole is punched...
A tank is filled with water to a height H, 22 m. A hole is punched in one of the walls at a depth h, 7.04 m, below the water surface (see the figure). What is the distance x from the base of the tank to the point at which the resulting stream strikes the floor? Could a hole be punched at another depth to produce a second stream that would have the same range? If so, at what depth?...
Imagine you have a tank filled with water. The total height of the tank is 20...
Imagine you have a tank filled with water. The total height of the tank is 20 m. The water in the tank has temperature of 20 °C and density of 998 kg/m3. What is the gauge pressure and absolute pressure of the water at the depth of 10m? Assume that the atmospheric pressure is 101kPa 20m 10m
A tank of water of length 20 m, 10 m, and height 3.8 m is filled...
A tank of water of length 20 m, 10 m, and height 3.8 m is filled with water of density 1.2 g/cm3. Find the pressure (in Pa) of water on one of the walls at a point 165 cm above the bottom. Round off the answer to 2 decimal places.
A 6-m-hight, 4-m-wide rectangular gate is located at the end of an open freshwater tank. The...
A 6-m-hight, 4-m-wide rectangular gate is located at the end of an open freshwater tank. The gate is hinged at the top and held in place by a force F. The pressure is proportional to the depth of the water and the average pressure p_avg exerted on the gate by the water is: where deltap is the difference in pressure between the bottom of the gate (P_1) and the surface (p_0). The resulting force of the water on the gate...
4. [1pt] A. B. C. The three tanks shown above are filled with water to an...
4. [1pt]
A.
B.
C.
The three tanks shown above are filled with water to an equal
depth. All the tanks have an equal height. Tank A has the greatest
surface area at the bottom, tank B the middle and tank C the
least.
(Select T-True, F-False, G-Greater than, L-Less than, E-Equal to.
If the first is F the second L and the rest G, enter
FLGGGG).
A) The force exerted by the water on the bottom of tank C...
4. A rectangular tank water (width 14.0m, length 14.0m, and height 20 m) is filled with...
4. A rectangular tank water (width 14.0m, length 14.0m, and height 20 m) is filled with water and open to the atmosphere. The water level in the tank is 1 m below the top of the tank. This tank sits upon a platform of height h. If the water tank is plugged at the bottom so no water is flowing, what is the resultant force exerted by the water on the bottom face of the container? What is the resultant...
A cylindrical water-storage tank has a height of 8.3 m and a radius of 5.8 m....
A cylindrical water-storage tank has a height of 8.3 m and a radius of 5.8 m. The storage tank is full of water but is vented to the atmosphere. The bottom of the tank is 33 m off the ground. A 14 cm diameter pipe runs vertically down from the tank and goes 1.5 m underground before turning horizontal. The water flow in the horizontal pipe is 79 L/s. A) What is the water pressure (gauge) in the horizontal pipe...
A water tank is filled to a depth of 10m, and the bottom of the tank...
A water tank is filled to a depth of 10m, and the bottom of the tank is 20m above ground. A water-filled hose that is 2.0cm in diameter extends from the bottom of the tank to ground, but no water is flowing in this hose. The water pressure at ground level in the hose is closest to which of the following values? The density of water is 1000kg/m^3 For best answer/full points you must provide detailed, legible solution, that defines...
Problem 3: [CL0 2] A 6 m deep and 2 m wide tank is filled with...
Problem 3: [CL0 2] A 6 m deep and 2 m wide tank is filled with layers of 2.50 m of crude oil, 2.00 m of water, and 1.40 m of mercury, respectively from top to bottom. Considering the temperature of the liquids as 20°C 110) a) compute the total hydrostatic force on any wall of the tank. b) draw a representative (non-scaled) pressure distribution diagram for the given system.
7.24 A pump is used to pressurize air in a tank to 300 kPa abs. e tank has a diameter of 2 m and a height of 4 m. Th...
7.24 A pump is used to pressurize air in a tank to 300 kPa abs. e tank has a diameter of 2 m and a height of 4 m. The initial level of water in the tank is 1 m, and the initial pressure at the tank water surface is 0 kPa gage. The atmospheric pressure is 100 kPa. The pump provides a constant head of 50 m. The water is drawn from a reservoir that is 4 m below...
Imagine you have a tank filled with water. The total height of the tank is 20 m. The water in the tank has temperature of 20 °C and density of 998 kg/m3. What is the gauge pressure and absolute pressure of the water at the depth of 10m? Assume that the atmospheric pressure is 101kPa 20m 10m
A 6-m-hight, 4-m-wide rectangular gate is located at the end of an open freshwater tank. The gate is hinged at the top and held in place by a force F. The pressure is proportional to the depth of the water and the average pressure p_avg exerted on the gate by the water is: where deltap is the difference in pressure between the bottom of the gate (P_1) and the surface (p_0). The resulting force of the water on the gate...
4. [1pt]
A.
B.
C.
The three tanks shown above are filled with water to an equal
depth. All the tanks have an equal height. Tank A has the greatest
surface area at the bottom, tank B the middle and tank C the
least.
(Select T-True, F-False, G-Greater than, L-Less than, E-Equal to.
If the first is F the second L and the rest G, enter
FLGGGG).
A) The force exerted by the water on the bottom of tank C...
Problem 3: [CL0 2] A 6 m deep and 2 m wide tank is filled with layers of 2.50 m of crude oil, 2.00 m of water, and 1.40 m of mercury, respectively from top to bottom. Considering the temperature of the liquids as 20°C 110) a) compute the total hydrostatic force on any wall of the tank. b) draw a representative (non-scaled) pressure distribution diagram for the given system.
7.24 A pump is used to pressurize air in a tank to 300 kPa abs. e tank has a diameter of 2 m and a height of 4 m. The initial level of water in the tank is 1 m, and the initial pressure at the tank water surface is 0 kPa gage. The atmospheric pressure is 100 kPa. The pump provides a constant head of 50 m. The water is drawn from a reservoir that is 4 m below...
