Question

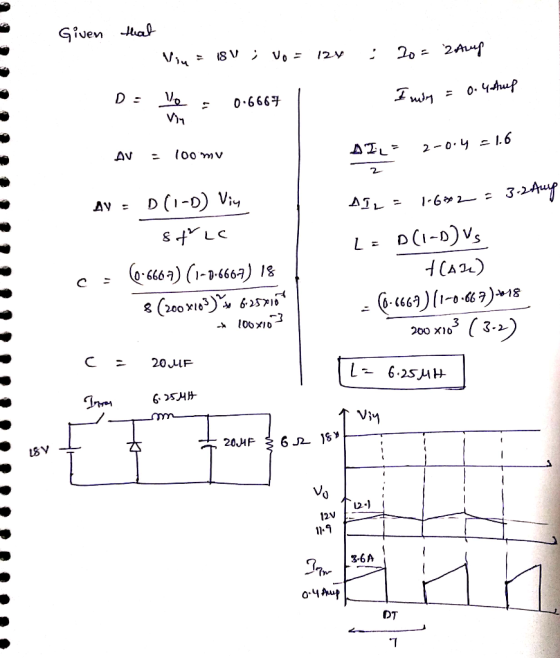

design a Buck converter that converts from 18 to 12 volts at 2 amps with 100...

design a Buck converter that converts from 18 to 12 volts at 2 amps with 100

mV of ripple. Choose an inductor such that its lowest current is 400mA. Give values for all

components and sketch waveforms for V

DIODE

and the transistor current. Assume a switching

frequency of 200kHz.

0 0
Add a comment Improve this question Transcribed image text
