Construct the DFA for (aaa)*. The alphabet is just {a} and then Construct the DFA for...

Question

Question

Construct the DFA for (aaa)*. The alphabet is just {a}

and then

Construct the DFA for (aa)*. The alphabet is just {a}. construct the union DFA. Use the partition algorithm. Then construct the intersection DFA.

engineering Computer-Science

Answer 1

Answer #1

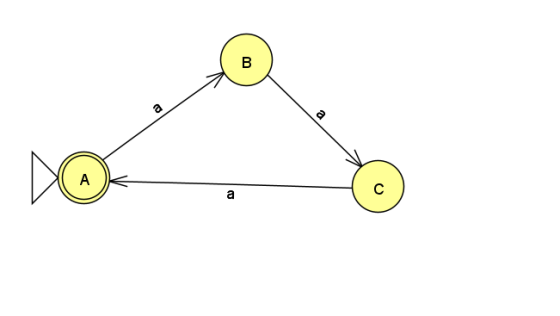

DFA for (aaa)*

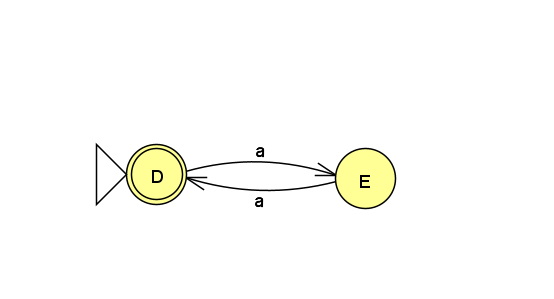

DFA for (aa)*

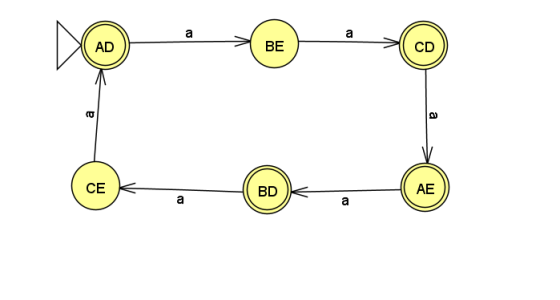

UNION:

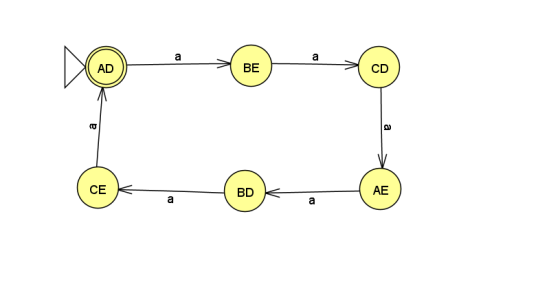

INTERSECTION:

Answer 2
