HomeworkLib
Question

A 8-m wide rectangular channel carries a flow of 96 m3/s at a flow depth of...

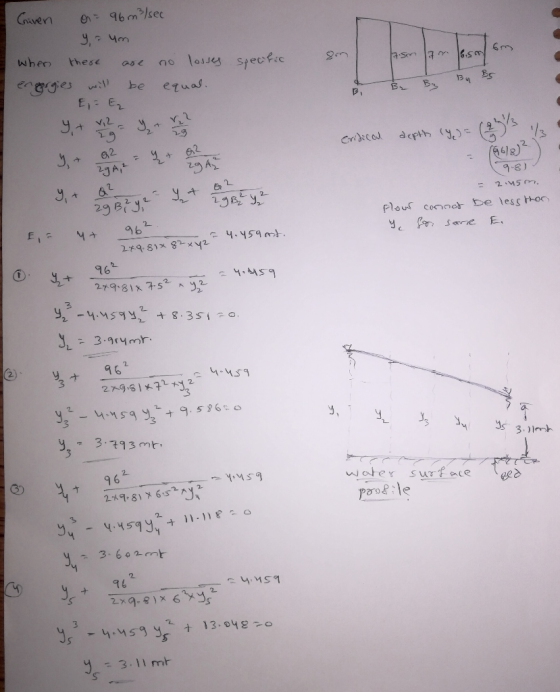

A 8-m wide rectangular channel carries a flow of 96 m3/s at a flow depth of 4 m. The channel width is constricted to 6 m in a length of 5 m. Assuming the channel transition has straight and vertical sides, and there are no losses, plot the water-surface profile in the transition. Hint: you should find the water depth when the channel width is 8 m, 7.5 m, 7 m, 6.5 m, and 6 m.

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 8-m wide rectangular channel carries a flow of 96 m3/s at a flow depth of...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 10-m wide rectangular channel is carrying a discharge of 400 m3/s at a flow depth...

    A 10-m wide rectangular channel is carrying a discharge of 400 m3/s at a flow depth of 3.0 m. Determine the flow depth downstream of a step of 0.3 m if the step is: (i) a rise, and (ii) a drop. Does the water surface rise or drop downstream of the step in each case?

  • 1. a) A rectangular channel is 5m wide and carries a flow of 5m3 /s. Plot...

    1. a) A rectangular channel is 5m wide and carries a flow of 5m3 /s. Plot the specific energy diagram for 0 < y < 2m. What is the critical depth and minimum specific energy? If the flow has a specific energy of 1.5m, what are the two possible flow depths? b) The channel in a) is narrowed to pass through a culvert 2m wide. It still carries 5m3 /s. What is the flow rate/unit width q (m2 /s) in...

  • 9) A rectangular channel 8 feet wide carries 2.5 ft/s of water at a depth of...

    9) A rectangular channel 8 feet wide carries 2.5 ft/s of water at a depth of 3.2 feet. a) What are the most efficient attributes (d, A, P, and R) of the channel? b) If a 1-foot wide pier is placed in the middle of the channel, find the elevation of the water surface at the pier. What is the minimum width of the constriction that will not cause a rise in the upstream water surface?

  • A rectangular channel 3 m wide carries 4m3/s of water at a depth of 1.5m. if...

    A rectangular channel 3 m wide carries 4m3/s of water at a depth of 1.5m. if an obstruction 15 cm high is placed across the channel, calculate the elevation of the water surface over the obstruction.

  • chanud! Par ritengaalr Alternative a for rectes gual 25 pts) A rectangular channel is 3.50 m...

    chanud! Par ritengaalr Alternative a for rectes gual 25 pts) A rectangular channel is 3.50 m wide conveys a discharge of 14.0 m/s at a depth of 2.0 m. It is proposed to reduce the width of the channel at a hydraulic structure. Assuming the transition to be horizontal and the flow to be frictionless determine the water surface elevations upstream and downstream of the constriction when the constricted width is: (a) 3 m. (Plot the specific energy versus depth...

  • A 1.7 m wide, 4000 m long rectangular channel carries 1.6 m/s of water. The depth...

    A 1.7 m wide, 4000 m long rectangular channel carries 1.6 m/s of water. The depth of the flow is 0.9 m. The channel is constructed from rough-formed concrete with a roughness coefficient of n-0.015. What is the difference in elevation between the two ends of the channel?

  • A 8 m wide rectangular channel is carrying water at 180 m3/s

    A 8 m wide rectangular channel is carrying water at 180 m3/s. The channel is constructed of concrete (Manning's N = 0.013) and is laid at a slope of 0.28 %. Find the normal depth

  • 9) A rectangular channel 8 feet wide carries 2.5 ft/s of water at a depth of...

    9) A rectangular channel 8 feet wide carries 2.5 ft/s of water at a depth of 3.2 feet. What are the most efficient attributes (d, A, P, and R) of the channel?

  • 2. A 2.5 m wide rectangular channel conveys m wide rectangular channel conveys water at a...

    2. A 2.5 m wide rectangular channel conveys m wide rectangular channel conveys water at a normal depth of 2 m. In a part of the channel, the channel width is expanded to 5 m. The local energy loss due to this expansion is about 10% of the upstream velocity head. If the channel slope is 0.03% and the Manning roughness coefficient is about 0.012, calculate the water depth over this transition and show the situation with a simple sketch.

  • Water flows within the 4-m-wide rectangular channel at 25 m3/s.

     Water flows within the 4-m-wide rectangular channel at 25 m3/s. Take yA = 0.4 m. Part A Determine the depth of flow yB at the downstream end. Part B Determine the velocity of flow at A.

ADVERTISEMENT
Free Homework Help App
Download From Google Play
Scan Your Homework
to Get Instant Free Answers
Need Online Homework Help?
Ask a Question
Get Answers For Free
Most questions answered within 3 hours.
ADVERTISEMENT
ADVERTISEMENT
