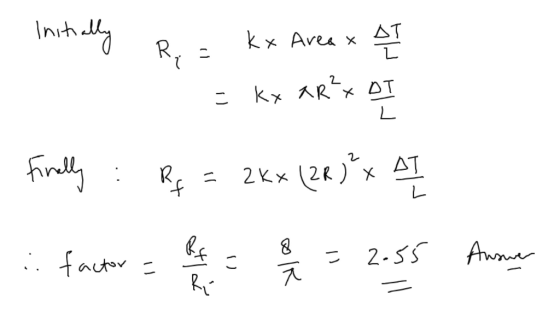

Two machine parts are connected by a cylindrical rod of length L, thermal conductivity k, and...
Two machine parts are connected by a cylindrical rod of length
L, thermal conductivity
k, and circular cross sectional radius R. If this rod is replaced
by another one
of the same length, but with thermal conductivity 2k and a square
cross section with
side length 2R, by what factor does the rate of heat conduction
increase?
Homework Answers
Add Answer to:
Two machine parts are connected by a cylindrical rod of length
L, thermal conductivity
k, and...
A long cylindrical rod of diameter 220 mm with thermal conductivity 0.5 W/m-K expe riences uniform...
A long cylindrical rod of diameter 220 mm with thermal conductivity 0.5 W/m-K expe riences uniform volumetric heat generation of 25,000 W/m3. The rod is encapsulated by a circular sleeve having 7 W/m K. The outer surface of the sleeve is exposed to cross flow of air at 25°C with a convection coefficient of 25 W/m2-K. Find the temperature at the interface between the rod and sleeve, and on the outer surface. an outer diameter of 410 mm and thermal...
18. A cylinder of radius r and made of a material of thermal conductivity kiis surrounded...
18. A cylinder of radius r and made of a material of thermal conductivity kiis surrounded by a cylindrical shell of inner radius r and outer radius 2r. This outer shell is made of a material of thermal conductivity k2. The two ends of the combined system are maintained at two different temperatures. Under steady state conditions and no loss of heat across the cylindrical surface, the effective thermal conductivity of the arrangement would be: (a) k,+k2 (6) kk kitk,...
A long cylindrical rod of diameter 100 mm with thermal conductivity of 0.5 W/mK experiences uniform...
A long cylindrical rod of diameter 100 mm with thermal conductivity of 0.5 W/mK experiences uniform volumetric heat generation of 5.0 x 10 W/m². The rod is encapsulated by a circular sleeve having an outer diameter of 400 mm and a thermal conductivity of 4 W/mK. The outer surface of the sleeve is exposed to cross flow of air at 27°C with a convection coefficient of 25 W/m2K (a) Find the temperature at the Interface between the rod and sleeve...
Consider a rectangular bar of thermal conductivity k W/m-K and total length 2L, as shown in...
Consider a rectangular bar of thermal conductivity k W/m-K and
total length 2L, as shown in the figure, is connected to a hot
surface that is at a temperature T1. The connection between the bar
and the surface is imperfect and results in a thermal contact
resistance of R’’ m2-K/W. The width of the rod into the depth of
the paper is W meters and the thickness of the rod is t meters. The
first section of the rod of...
Show all work and explain how you get the correct answer highlighted below: A rod of...
Show all work and explain how you get the correct answer
highlighted below:
A rod of length L and square cross-section with side length a conducts heat between two machine parts. In order to modify the machine but maintain the same rate of heat conduction, you replace the rod with a new one of the same material that has a square cross-section with side length 3a/2. What is the new rod's length? A. 3L/2 B. 9L/4 C. 2L/3 D. 4L/9
Can you send me the right answer? QUESTION 3 A rod, of length L and square...
Can you send me the right answer?
QUESTION 3 A rod, of length L and square cross section of side a, has a resistance R. What is the new value of the resistance R' if the length is doubled (2L) and the cross section side is halved (a/2)? a R' R 4 R'=R R' = 2R R R' QUESTION 3 A rod, of length L and square cross section of side a, has a resistance R. What is the new...
A thin rod of radius r, length 3L, and thermal conductivity, k is divided into three...
A thin rod of radius r, length 3L, and thermal conductivity, k is divided into three regions, each of length L. Regions 1 and 2 are surrounded by a perfectly insulating wall, while Region 3 protrudes into ambient air well-insulated. Uniform heat generation, q, occus only in Region 1 Sketch the temperature prolile along the entire length of the rod. For each region, specify why the temperature prolile has the shape you have decided on. Also, specify the nature of...
A rod, in the form of a cylinder of length L and circular cross-section of radius...
A rod, in the form of a cylinder of length L and circular cross-section of radius r, has a resistance R. What is the new value of the resistance R if the length is doubled (2L) and the radius is doubled (2r)?
QUESTION 3 A rod, of length L and square cross section of side a, has a...
QUESTION 3 A rod, of length L and square cross section of side a, has a resistance R. What is the new value of the resistance R' if the length is doubled (21) and the cross section side is halved (a/2)? OR'-2R OR 4 R' = R 2 RER
A plane wall with thermal conductivity of k, is insulated on one side and is exposed...
A plane wall with thermal conductivity of k, is insulated on one side and is exposed to ambient air at To and convection coefficient of h, on the other side. A heat source in the 3) wall is generating a uniform heat rate per unit volume of For one-dimensional steady-state conduction in the wall, derive a proper differential equation for the temperature by either using the heat equations or doing the energy balance. Identify proper boundary conditions and find the...
A long cylindrical rod of diameter 220 mm with thermal conductivity 0.5 W/m-K expe riences uniform volumetric heat generation of 25,000 W/m3. The rod is encapsulated by a circular sleeve having 7 W/m K. The outer surface of the sleeve is exposed to cross flow of air at 25°C with a convection coefficient of 25 W/m2-K. Find the temperature at the interface between the rod and sleeve, and on the outer surface. an outer diameter of 410 mm and thermal...
18. A cylinder of radius r and made of a material of thermal conductivity kiis surrounded by a cylindrical shell of inner radius r and outer radius 2r. This outer shell is made of a material of thermal conductivity k2. The two ends of the combined system are maintained at two different temperatures. Under steady state conditions and no loss of heat across the cylindrical surface, the effective thermal conductivity of the arrangement would be: (a) k,+k2 (6) kk kitk,...
A long cylindrical rod of diameter 100 mm with thermal conductivity of 0.5 W/mK experiences uniform volumetric heat generation of 5.0 x 10 W/m². The rod is encapsulated by a circular sleeve having an outer diameter of 400 mm and a thermal conductivity of 4 W/mK. The outer surface of the sleeve is exposed to cross flow of air at 27°C with a convection coefficient of 25 W/m2K (a) Find the temperature at the Interface between the rod and sleeve...
Consider a rectangular bar of thermal conductivity k W/m-K and
total length 2L, as shown in the figure, is connected to a hot
surface that is at a temperature T1. The connection between the bar
and the surface is imperfect and results in a thermal contact
resistance of R’’ m2-K/W. The width of the rod into the depth of
the paper is W meters and the thickness of the rod is t meters. The
first section of the rod of...
Show all work and explain how you get the correct answer
highlighted below:
A rod of length L and square cross-section with side length a conducts heat between two machine parts. In order to modify the machine but maintain the same rate of heat conduction, you replace the rod with a new one of the same material that has a square cross-section with side length 3a/2. What is the new rod's length? A. 3L/2 B. 9L/4 C. 2L/3 D. 4L/9
Can you send me the right answer?
QUESTION 3 A rod, of length L and square cross section of side a, has a resistance R. What is the new value of the resistance R' if the length is doubled (2L) and the cross section side is halved (a/2)? a R' R 4 R'=R R' = 2R R R' QUESTION 3 A rod, of length L and square cross section of side a, has a resistance R. What is the new...
A thin rod of radius r, length 3L, and thermal conductivity, k is divided into three regions, each of length L. Regions 1 and 2 are surrounded by a perfectly insulating wall, while Region 3 protrudes into ambient air well-insulated. Uniform heat generation, q, occus only in Region 1 Sketch the temperature prolile along the entire length of the rod. For each region, specify why the temperature prolile has the shape you have decided on. Also, specify the nature of...
QUESTION 3 A rod, of length L and square cross section of side a, has a resistance R. What is the new value of the resistance R' if the length is doubled (21) and the cross section side is halved (a/2)? OR'-2R OR 4 R' = R 2 RER
A plane wall with thermal conductivity of k, is insulated on one side and is exposed to ambient air at To and convection coefficient of h, on the other side. A heat source in the 3) wall is generating a uniform heat rate per unit volume of For one-dimensional steady-state conduction in the wall, derive a proper differential equation for the temperature by either using the heat equations or doing the energy balance. Identify proper boundary conditions and find the...
