A compound microscope has an objective of focal length 0.300 cm and an eyepiece of focal...

A compound microscope has an objective of focal length 0.300 cm and an eyepiece of focal length 2.50 cm. If an object is 3.40 mm from the objective, what is the magnification? (Hint: Use the lens equation for the objective.)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

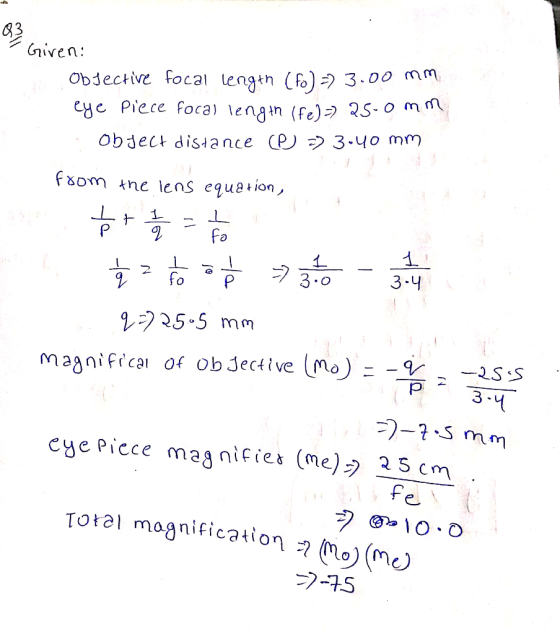

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A compound microscope has an objective of focal length 0.300 cm and an eyepiece of focal...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A compound microscope has an objective lens of focal length 10.0 mm with an eyepiece of...

    A compound microscope has an objective lens of focal length 10.0 mm with an eyepiece of focal length 15.5 mm , and it produces its final image at infinity. The object to be viewed is placed 2.0 mm beyond the focal point of the objective lens. a. How far from the objective lens is the first image formed? b. What is the overall magnification of this microscope?

  • A compound microscope has an objective lens of focal length 10.3 mm with an eyepiece of...

    A compound microscope has an objective lens of focal length 10.3 mm with an eyepiece of focal length 15.0 mm , and it produces its final image at infinity. The object to be viewed is placed 2.0 mm beyond the focal point of the objective lens. Part A: How far from the objective lens is the first image formed? Express your answer in millimeters to three significant figures. Part B: What is the overall magnification of this microscope? Express your...

  • A microscope has an objective lens with a focal length of 19.5 mm and an eyepiece with a focal length of 6.2 mm. With the length of the barrel set an 33.0 cm, the diameter of a red blood cell’s image...

    A microscope has an objective lens with a focal length of 19.5 mm and an eyepiece with a focal length of 6.2 mm. With the length of the barrel set an 33.0 cm, the diameter of a red blood cell’s image subtends an angle of 1.2 milli-radians with the eye. The final image distance is 29.0 cm from the eyepiece. (a) What is the length of the image of the of the cell produced by the eyepiece? (b) Using the...

  • A compound microscope has an objective lens of focal length 10.5 mm with an eyepiece of...

    A compound microscope has an objective lens of focal length 10.5 mm with an eyepiece of focal length 15.4 mm, and it produces its final image at infinity. The object to be viewed is placed 2.0 mm beyond the focal point of the objective lens. Part A How far from the objective lens is the first image formed? Express your answer in millimeters to three significant figures. VO AZO ? 81 Imm Submit Request Answer Part B What is the...

  • A compound microscope has an objective lens with a focal length of 0.40 cm and an...

    A compound microscope has an objective lens with a focal length of 0.40 cm and an ocular (eyepiece) with a focal length of 4.25 cm. The separation between the lenses is 20 cm. (a) Find the total magnification. (b) What focal length of the objective should be used to double the total magnification, if the focal length of the eyepiece and its separation from the objective remain the same?

  • In a compound microscope, the focal length of the objective is 3.71 cm and that of...

    In a compound microscope, the focal length of the objective is 3.71 cm and that of the eyepiece is 6.60 cm. The distance between the lenses is 17.6 cm. (a) What is the angular magnification of the microscope if the person using it has a near point of 32.1 cm? (b) If, as normal, the first image lies just inside the focal point of the eyepiece, as in the drawing, how far is the object from the objective? (c) What...

  • A compound microscope has the objective and eyepiece mounted in a tube that is 18.8 cm...

    A compound microscope has the objective and eyepiece mounted in a tube that is 18.8 cm long. The focal length of the eyepiece is 2.55 cm , and the near-point distance of the person using the microscope is 24.0 cm . If the person can view the image produced by the microscope with a completely relaxed eye, and the magnification is -4516, what is the distance between the objective lens and the object to be examined?

  • In a compound microscope, the objective has a focal length of 0.48 cm, while the eyepiece...

    In a compound microscope, the objective has a focal length of 0.48 cm, while the eyepiece has a focal length of 1.9 cm. The separation between the objective and the eyepiece is L = 10.0 cm. Another microscope that has the same angular magnification can be constructed by interchanging the two lenses, provided that the distance between the lenses is adjusted to a value L'. Find L'.

  • Experiment 22: The Compound Microscope f2 Object 2 1 (Objective Lens)d L, (Eyepiece) d#150mm The Compound Microsco...

    Experiment 22: The Compound Microscope f2 Object 2 1 (Objective Lens)d L, (Eyepiece) d#150mm The Compound Microscope A compound microscope uses two lenses to provide greater magnification of near objects than is possible using a single lens as a magnifier. The setup is shown above. The objective lens, L1, functions as a projector. The object is placed just beyond the focal point of L1 so a real, magnified, inverted image is formed. The eyepiece, L2, functions as a magnifier. It...

  • The focal lengths of the objective and the eyepiece in a microscope are 0.25 cm and...

    The focal lengths of the objective and the eyepiece in a microscope are 0.25 cm and 1.0 cm, respectively. An object is placed at 0.30 cm from the objective lens and the image of this object is viewed with the eyepiece adjusted for minimum eyestrain. The near-point distance of the person using the microscope is 25.0 cm. What is the final magnification of the microscope?
