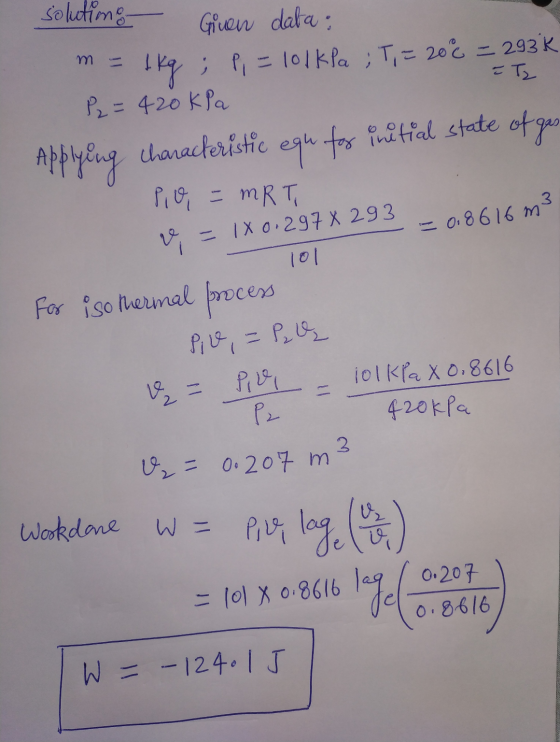

One kg of nitrogen is compressed isothermally form 101 kPa and 20°C to 420 kPa Calculate...
One kg of nitrogen is compressed isothermally form 101 kPa and 20°C to 420 kPa Calculate the work done by the process. (R Niogen K) = 0.297Jkg
Homework Answers
Add Answer to:
One kg of nitrogen is compressed isothermally form 101
kPa and 20°C to 420 kPa Calculate...
Nitrogen at 120 kPa and 30°C is compressed to 620 kPa in an adiabatic compressor. Calculate...
Nitrogen at 120 kPa and 30°C is compressed to 620 kPa in an adiabatic compressor. Calculate the minimum work needed for this process in kJ/kg. Use the table containing the ideal gas specific heats of various common gases. The minimum work needed for this process is k J/kg.
One kg of a perfect gas is compressed polytropically from 110 kPa and 27°C to 660...
One kg of a perfect gas is compressed polytropically from 110 kPa and 27°C to 660 KPa and 180°C with index ne1.3. Calculate the work done. (R gas =0.208 kJkg K)
1.) Nitrogen expands in a turbine at a rate of 0.17 kg/s. The nitrogen enters the...
1.) Nitrogen expands in a turbine at a rate of 0.17 kg/s. The nitrogen enters the turbine at 750 kPa, 580 K and it exits at 195 kPa, 323 K. The power delivered by the turbine is measured to 38 kW. Neglect potential and kinetic energies. For Nitrogen, Cp = 1039 j/Kg.k - Calculate the amount of heat transfer. Determine if the heat is added to the system or lost from the system. - Plot the TV diagram showing all...
1.) Nitrogen expands in a turbine at a rate of 0.17 kg/s. The nitrogen enters the...
1.) Nitrogen expands in a turbine at a rate of 0.17 kg/s. The nitrogen enters the turbine at 750 kPa, 580 K and it exits at 195 kPa, 323 K. The power delivered by the turbine is measured to 38 kW. Neglect potential and kinetic energies. For Nitrogen, Cp = 1039 j/Kg.k - Calculate the amount of heat transfer. Determine if the heat is added to the system or lost from the system. - Plot the TV diagram showing all...
1.) Nitrogen expands in a turbine at a rate of 0.17 kg/s. The nitrogen enters the...
1.) Nitrogen expands in a turbine at a rate of 0.17 kg/s. The nitrogen enters the turbine at 750 kPa, 580 K and it exits at 195 kPa, 323 K. The power delivered by the turbine is measured to 38 kW. Neglect potential and kinetic energies. For Nitrogen, Cp = 1039j/Kg.k - Calculate the amount of heat transfer. Determine if the heat is added to the system or lost from the system. Plot the TV diagram showing all the states...
A piston-cylinder device contains 0.78 kg of nitrogen gas at 140 kPa and 37°C. The gas...
A piston-cylinder device contains 0.78 kg of nitrogen gas at 140 kPa and 37°C. The gas is now compressed slowly in a polytropic process during which PV1.3 = constant. The process ends when the volume is reduced by one-half. Determine the entropy change of nitrogen during this process. The gas constant of nitrogen is R= 0.2968 kJ/kg-K. The constant volume specific heat of nitrogen at room temperature is Cr=0.743 kJ/kg-K. (Round the final answer to five decimal places.) The entropy...
A piston-cylinder device contains 0.63 kg of nitrogen gas at 140 kPa and 37°C. The gas...
A piston-cylinder device contains 0.63 kg of nitrogen gas at 140 kPa and 37°C. The gas is now compressed slowly in a polytropic process during which PV1.3. constant. The process ends when the volume is reduced by one-halt. Determine the entropy change of nitrogen during this process. The gas constant of nitrogen is R-0.2968 kJ/kg K. The constant volume specific heat of nitrogen at room temperature is C -0.743 kJ/kg K. (Round the final answer to five decimal places.) The...
Argon is compressed in a polytropic process with n= 1 from 120 kPa and 10°C to...
Argon is compressed in a polytropic process with n= 1 from 120 kPa and 10°C to 600 kPa in a piston–cylinder device. Determine the work produced and heat transferred during this compression process, in kJ/kg. For Argon, R is 0.2081 KJ/kg K, Cv =0.3122 KJ/kg K
One-half kilogram of air is compressed isothermally and qusistatically in a closed system from 100 kPa...
One-half kilogram of air is compressed isothermally and qusistatically in a closed system from 100 kPa gage pressure and 30C to a final gage pressure of 240 kPa. Determine (a) the internal energy change and (b) the heat transfer and its direction, in kJ?
15. An 8-L cylinder contains air at 300 kPa and 300 K. Now air is compressed...
15. An 8-L cylinder contains air at 300 kPa and 300 K. Now air is compressed isothermally to a volume of 2 L. The work done on air during this compression process is: (b) 1.8 kJ (c) 3.3 kJ (a) 119 kJ (d) 4.5 kJ
Nitrogen at 120 kPa and 30°C is compressed to 620 kPa in an adiabatic compressor. Calculate the minimum work needed for this process in kJ/kg. Use the table containing the ideal gas specific heats of various common gases. The minimum work needed for this process is k J/kg.
1.) Nitrogen expands in a turbine at a rate of 0.17 kg/s. The nitrogen enters the turbine at 750 kPa, 580 K and it exits at 195 kPa, 323 K. The power delivered by the turbine is measured to 38 kW. Neglect potential and kinetic energies. For Nitrogen, Cp = 1039 j/Kg.k - Calculate the amount of heat transfer. Determine if the heat is added to the system or lost from the system. - Plot the TV diagram showing all...
1.) Nitrogen expands in a turbine at a rate of 0.17 kg/s. The nitrogen enters the turbine at 750 kPa, 580 K and it exits at 195 kPa, 323 K. The power delivered by the turbine is measured to 38 kW. Neglect potential and kinetic energies. For Nitrogen, Cp = 1039 j/Kg.k - Calculate the amount of heat transfer. Determine if the heat is added to the system or lost from the system. - Plot the TV diagram showing all...
1.) Nitrogen expands in a turbine at a rate of 0.17 kg/s. The nitrogen enters the turbine at 750 kPa, 580 K and it exits at 195 kPa, 323 K. The power delivered by the turbine is measured to 38 kW. Neglect potential and kinetic energies. For Nitrogen, Cp = 1039j/Kg.k - Calculate the amount of heat transfer. Determine if the heat is added to the system or lost from the system. Plot the TV diagram showing all the states...
A piston-cylinder device contains 0.78 kg of nitrogen gas at 140 kPa and 37°C. The gas is now compressed slowly in a polytropic process during which PV1.3 = constant. The process ends when the volume is reduced by one-half. Determine the entropy change of nitrogen during this process. The gas constant of nitrogen is R= 0.2968 kJ/kg-K. The constant volume specific heat of nitrogen at room temperature is Cr=0.743 kJ/kg-K. (Round the final answer to five decimal places.) The entropy...
A piston-cylinder device contains 0.63 kg of nitrogen gas at 140 kPa and 37°C. The gas is now compressed slowly in a polytropic process during which PV1.3. constant. The process ends when the volume is reduced by one-halt. Determine the entropy change of nitrogen during this process. The gas constant of nitrogen is R-0.2968 kJ/kg K. The constant volume specific heat of nitrogen at room temperature is C -0.743 kJ/kg K. (Round the final answer to five decimal places.) The...
15. An 8-L cylinder contains air at 300 kPa and 300 K. Now air is compressed isothermally to a volume of 2 L. The work done on air during this compression process is: (b) 1.8 kJ (c) 3.3 kJ (a) 119 kJ (d) 4.5 kJ
