14.) Let L1 = L(a∗baa∗) and L2 = L(aba∗). Find L1/L2. This is a Formal Languages...

14.) Let L1 = L(a∗baa∗) and L2 = L(aba∗). Find L1/L2.

This is a Formal Languages and Automata question...

I need to see what the dfa for L1/L2 looks like and how you know what the final states are... Thanks!

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

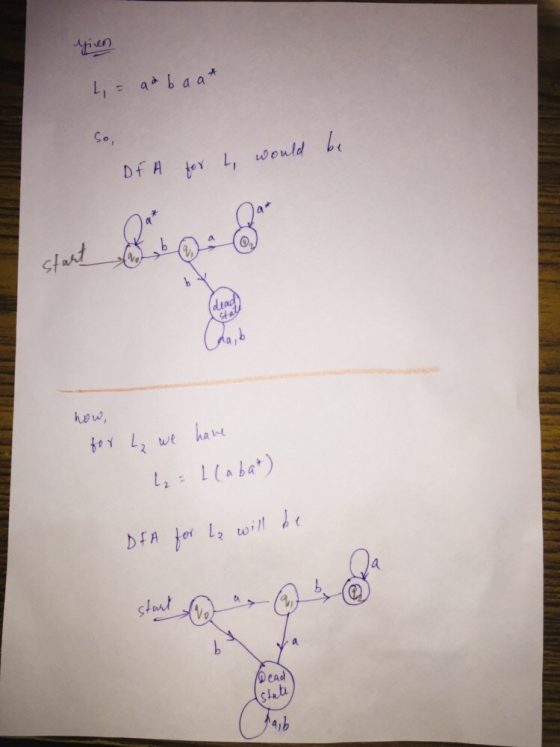

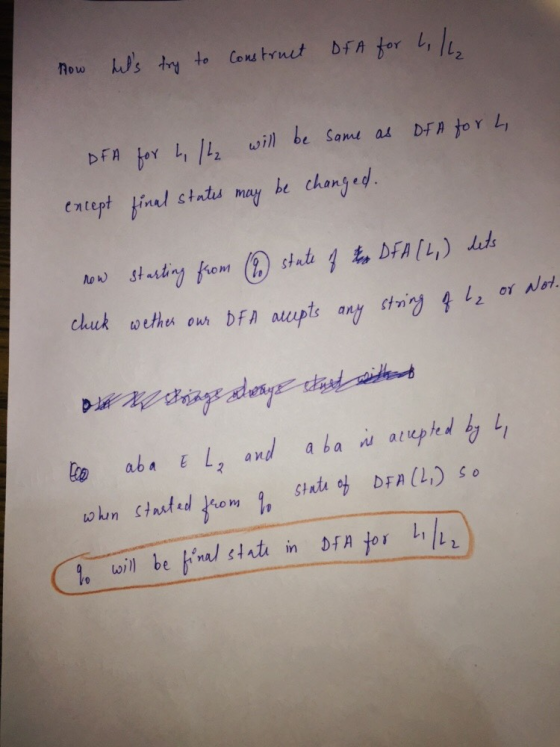

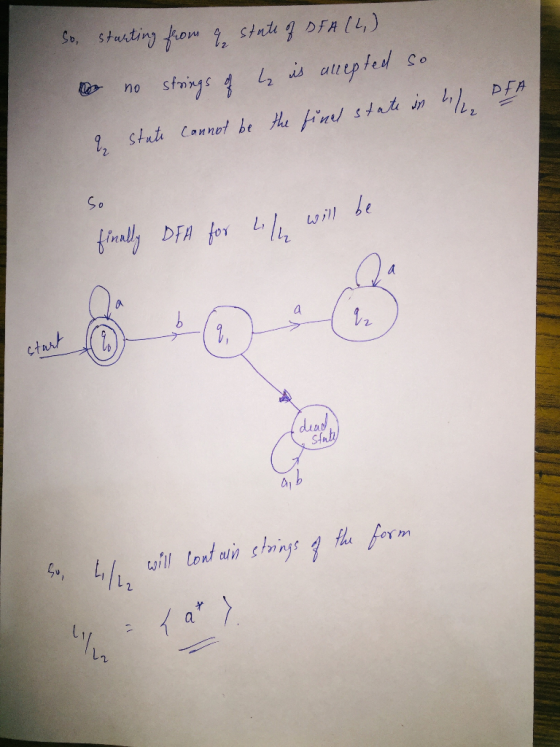

L1 /L2 finite automata is nothing but L1 automata but there is s change in the final states .

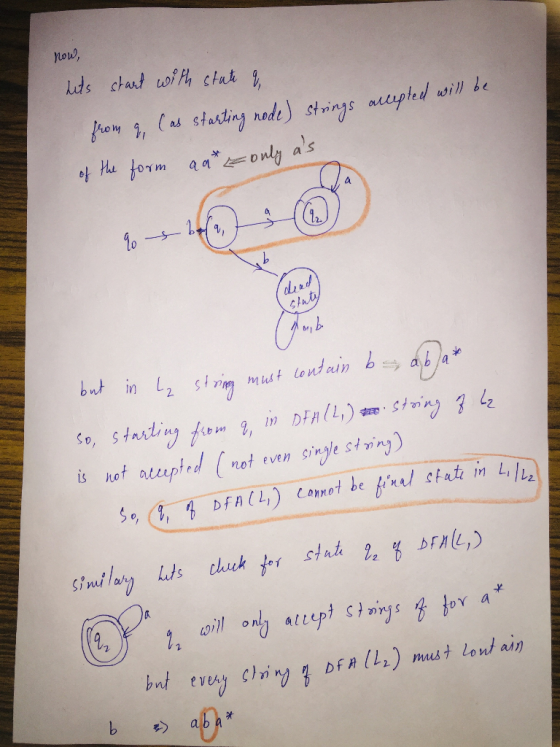

from L1 automata , starting from the first state , consider the total automata .If this automata accepts any string of L2 then make first state of L1 as final state otherwise non final .

now starting from the second state , consider the total automata .If it accepts any string of L2 them make that state as the final state otherwise non final .

Repeat this process for every state to decide whether the state is final or non final .

0 0
