A proton moves with a speed of 8.0 × 106 m/s at an angle of 30°...
A proton moves with a speed of 8.0 × 106 m/s at an angle of 30° to a magnetic field of 2T, shown in the figure in question 1, (the charge of a proton = 1.60 × 10-19 C). Calculate the magnitude of the magnetic force on the proton.
Homework Answers

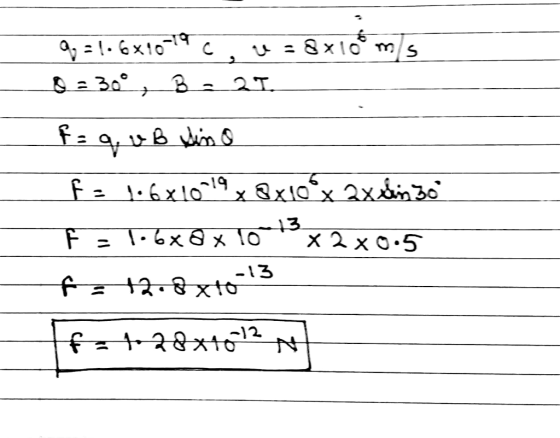

F
= qvB Sin theta
F = 1.6 × 10^-19 × 8 × 10^6 × 2 × Sin 30
F = 12.8 × 10^-13
F = 1.28 × 10^ -12 N
A proton moves to the left with a speed of 1.25 · 106 m/s into a...
A proton moves to the left with a speed of 1.25 · 106 m/s into a region of constant magnetic field as shown in the figure below. The magnitude of the magnetic field is 1.91 · 10-2 T and the direction of the field is into the page. When the proton initially enters the magnetic field, the magnitude of the force on the proton (in N) is A: 2.160×10-15 B: 2.872×10-15 C: 3.820×10-15 D: 5.081×10-15 E: 6.757×10-15 F: 8.987×10-15 G:...
A proton travels with a speed of 5.10 ✕ 106 m/s at an angle of 64°...
A proton travels with a speed of 5.10 ✕ 106 m/s at an angle of 64° with the direction of a magnetic field of magnitude 0.190 T in the positive x-direction. (a) What is the magnitude of the magnetic force on the proton? _____ N (b) What is the proton's acceleration? (Give the magnitude.) _____ m/s/s
A proton moves in the magnetic field B⃗ =0.56i^T with a speed of 9.0×106 m/s in...
A proton moves in the magnetic field B⃗ =0.56i^T with a speed of
9.0×106 m/s in the directions shown in the figure. (Figure 1)
Part B
In Figure (b), what is the magnetic force
F⃗ on the proton? Give your answers in
component form.
Express vector F⃗
in the form of
Fx,
Fy,
Fz , where the
x,
y, and
z components are separated by
commas.
will rate, thanks! A proton travels with a speed of 5.05 106 m/s at an angle...
will rate, thanks!
A proton travels with a speed of 5.05 106 m/s at an angle of 62° with the direction of a magnetic field of magnitude 0.230 T in the positive x-direction. (a) What is the magnitude of the magnetic force on the proton? N (b) What is the proton's acceleration? (Give the magnitude.) m/s2
A proton travels with a speed of 5.00 x 106 m/s at an angle of 61°...
A proton travels with a speed of 5.00 x 106 m/s at an angle of 61° with the direction of a magnetic field of magnitude 0.150 T in the positive x-direction. (a) What is the magnitude of the magnetic force on the proton? (b) What is the proton's acceleration? (Give the magnitude.) Need Help? Read
A proton moves to the right with a speed of 4.44 middot 10^6 m/s into a...
A proton moves to the right with a speed of 4.44 middot 10^6 m/s into a region of constant magnetic field as shown in the figure below. The magnitude of the magnetic field is 2.94 middot 10^-2 T and the direction of the field is out of the page. When the proton initially enters the magnetic field, the magnitude of the force on the proton (in N) is When the proton initially enters the magnetic field, the direction of the...
1 A proton in a particle accelerator has a speed of 5.0 x 106 m/s.Proton is...
1 A proton in a particle accelerator has a speed of 5.0 x 106 m/s.Proton is with a magnetic field whose magnitude is 0.40 T and your address is 30 degrees with respect to the speed of the proton.Halle the magnitude of the magnetic force acting on the proton and find its acceleration. 2) A particle with the same mass and charge a proton into a region where the magnetic field has a magnitude of 4000 G.The particle moves in...
009 (part 1 of 3) 10.0 points A proton travels with a speed of 4.8×106 m/s...
009 (part 1 of 3) 10.0 points A proton travels with a speed of 4.8×106 m/s at an angle of 96◦ west of north. A magnetic field of 4.6 T points to the north. Find the magnitude of the magnetic force on the proton. (The magnetic force experienced by the proton in the magnetic field is proportional to the component of the proton’s velocity that is perpendicular to the magnetic field.) Answer in units of N. 010 (part 2 of...
A proton with charge 1.602 x 10^-19 C moves at a speed of 300 m/s in...
A proton with charge 1.602 x 10^-19 C moves at a speed of 300 m/s in a magnetic field at an angle of 65 degrees. If the strength of the magnetic field is 19 T, what would be the magnitude of the force the charge experiences? 8.28 x 10^-16 N 13.78 x 10^-15 N 5.09 x 10^-14 N 7.75 x 10^-17 N An alpha particle travelling at 2155 m/s enters a magnetic field of strength 12.2 T. The particle is...
A proton travels with a speed of 3.00 x 10 m/s at an angle of 34.0°...
A proton travels with a speed of 3.00 x 10 m/s at an angle of 34.0° with the direction of a magnetic field of 0.400 T in the y direction. What is the magnitude of the magnetic force on the proton? (Your result must be in multiples of 10-14 N and include 1 digit after the decimal point. That means if you get a result of a 92.2 x 10-14 just type 92.2 in the answer box. Maximum of 5%...
A proton moves in the magnetic field B⃗ =0.56i^T with a speed of
9.0×106 m/s in the directions shown in the figure. (Figure 1)
Part B
In Figure (b), what is the magnetic force
F⃗ on the proton? Give your answers in
component form.
Express vector F⃗
in the form of
Fx,
Fy,
Fz , where the
x,
y, and
z components are separated by
commas.
will rate, thanks!
A proton travels with a speed of 5.05 106 m/s at an angle of 62° with the direction of a magnetic field of magnitude 0.230 T in the positive x-direction. (a) What is the magnitude of the magnetic force on the proton? N (b) What is the proton's acceleration? (Give the magnitude.) m/s2
A proton travels with a speed of 5.00 x 106 m/s at an angle of 61° with the direction of a magnetic field of magnitude 0.150 T in the positive x-direction. (a) What is the magnitude of the magnetic force on the proton? (b) What is the proton's acceleration? (Give the magnitude.) Need Help? Read
A proton moves to the right with a speed of 4.44 middot 10^6 m/s into a region of constant magnetic field as shown in the figure below. The magnitude of the magnetic field is 2.94 middot 10^-2 T and the direction of the field is out of the page. When the proton initially enters the magnetic field, the magnitude of the force on the proton (in N) is When the proton initially enters the magnetic field, the direction of the...
A proton travels with a speed of 3.00 x 10 m/s at an angle of 34.0° with the direction of a magnetic field of 0.400 T in the y direction. What is the magnitude of the magnetic force on the proton? (Your result must be in multiples of 10-14 N and include 1 digit after the decimal point. That means if you get a result of a 92.2 x 10-14 just type 92.2 in the answer box. Maximum of 5%...
