An ohmmeter is sometimes used to determine the "direction" of a diode by connecting the ohmmeter...

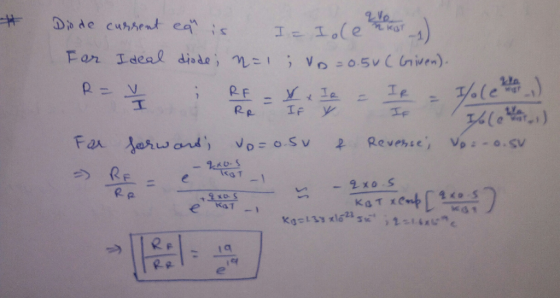

An ohmmeter is sometimes used to determine the
"direction" of a diode by connecting the ohmmeter to the
diode one way and then reversing the ohmmeter leads. If
the ohmmeter applies an emf of 0.5 V to the diode in
order to determine resistance, what would be the ratio
of reverse resistance to forward resistance at 300 K?
Assume the diode behaves as an ideal p-n junction. What

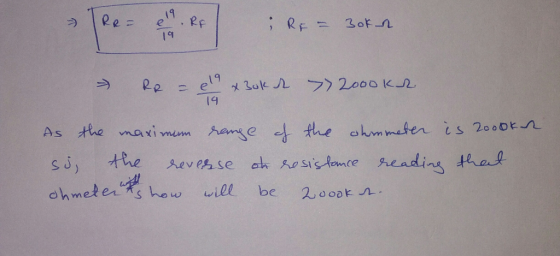

do you conclude from this calculation if the forward
resistance is 30 kΩ and the maximum range of the
ohmmeter is 2000 kΩ?
Homework Answers
