What is the ratio of the time for the capacitor in an RC series circuit to...

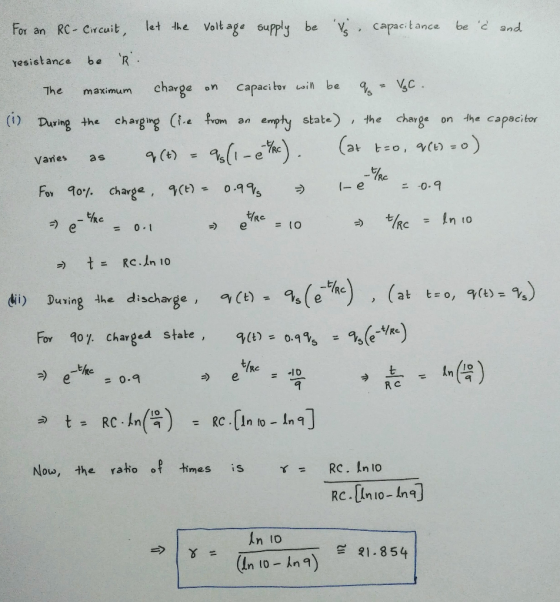

What is the ratio of the time for the capacitor in an RC series circuit to reach 90% of capacity from an empty state, to that for the circuit to discharge from a ‘full’ state to 90% capacity?
Homework Answers
Add Answer to:
What is the ratio of the time for the capacitor in an RC series
circuit to...
In an RC circuit with an initially uncharged capacitor, the time constant is the time that...
In an RC circuit with an initially uncharged capacitor, the time constant is the time that is required for the current through the resistor to reach what percentage of its initial value? 50% 63% 90% 37% 100%
The capacitor in an RC circuit is discharged with a time constant of 10.0ms. a) At...
The capacitor in an RC circuit is discharged with a time constant of 10.0ms. a) At what time after the discharge begins is the charge on the capacitor reduced to half its initial value? b) At what time after the discharge begins is the energy stored in the capacitor reduced to half its initial value?
Draw the time response for the voltage across the capacitor in series RC circuit with DC...
Draw the time response for the voltage across the capacitor in series RC circuit with DC excitations
How long does it take for the energy stored in a capacitor in a series RC...
How long does it take for the energy stored in a capacitor in a series RC circuit to reach 75% of its maximum value? Express answer in terms of the time constant t = RC.
13. RC circuit A RC circuit has a resistor of 100k and a capacitor of 2004....
13. RC circuit A RC circuit has a resistor of 100k and a capacitor of 2004. What is the time constant? (5) 2. Figure 3 shows the voltage across a capacitor versus time in a RC-circuit experiment. (5) The applied voltage to the capacitor is V-6. What is the estimated time constant for this capacitor? a) 1-50 b) 50-100s c) 100-150 d) 200-250 e)300-350s Figure 3: Voltage versus time for a capacitor. 3. Working Problem (show all your work!) Figure...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
A 4.0-uF parallel-plate capacitor is charged to 6.0-volts. A series RC circuit is then formed using...
A 4.0-uF parallel-plate capacitor is charged to 6.0-volts. A series RC circuit is then formed using this capacitor, a 3.0-MS resistor, and a 12-V battery. After making the connection to the battery, how much time will it take for the capacitor reach 9.0 volts between its plates? Enter your answer in seconds to 2 sig fig without a unit.
An RC circuit consists of a 5 uF capacitor, an 80,000 ohm resistor, and a 12-V...
An RC circuit consists of a 5 uF capacitor, an 80,000 ohm resistor, and a 12-V battery. The switch is closed at t=0. a) Find the time constant of the circuit. b) Find the time to reach 90% of the maximum charge across the capacitor.
HE In the given RC circuit, a capacitor is connected to a resistor in series and...
HE In the given RC circuit, a capacitor is connected to a resistor in series and is getting charged after closing the Switch. The time constant of the circuit is 10 (s). R = 109 (0) C =? (F) A- Calculate the capacitance of the capacitor. B- How much time does it take for the capacitor to become fully (about 99%) charged? C- If we close the Switch and the capacitor starts getting charged, what is the charge at the...
HA In the given RC circuit, a capacitor is connected to a resistor in series and...
HA In the given RC circuit, a capacitor is connected to a resistor in series and is getting charged after closing the Switch. The time constant of the circuit is 10 (S). R = 10° (0) C =? (F) A- Calculate the capacitance of the capacitor. B- How much time does it take for the capacitor to become fully (about 99%) charged? C- If we close the Switch and the capacitor starts getting charged, what is the charge at the...
13. RC circuit A RC circuit has a resistor of 100k and a capacitor of 2004. What is the time constant? (5) 2. Figure 3 shows the voltage across a capacitor versus time in a RC-circuit experiment. (5) The applied voltage to the capacitor is V-6. What is the estimated time constant for this capacitor? a) 1-50 b) 50-100s c) 100-150 d) 200-250 e)300-350s Figure 3: Voltage versus time for a capacitor. 3. Working Problem (show all your work!) Figure...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
A 4.0-uF parallel-plate capacitor is charged to 6.0-volts. A series RC circuit is then formed using this capacitor, a 3.0-MS resistor, and a 12-V battery. After making the connection to the battery, how much time will it take for the capacitor reach 9.0 volts between its plates? Enter your answer in seconds to 2 sig fig without a unit.
HE In the given RC circuit, a capacitor is connected to a resistor in series and is getting charged after closing the Switch. The time constant of the circuit is 10 (s). R = 109 (0) C =? (F) A- Calculate the capacitance of the capacitor. B- How much time does it take for the capacitor to become fully (about 99%) charged? C- If we close the Switch and the capacitor starts getting charged, what is the charge at the...
HA In the given RC circuit, a capacitor is connected to a resistor in series and is getting charged after closing the Switch. The time constant of the circuit is 10 (S). R = 10° (0) C =? (F) A- Calculate the capacitance of the capacitor. B- How much time does it take for the capacitor to become fully (about 99%) charged? C- If we close the Switch and the capacitor starts getting charged, what is the charge at the...
