You found the input and output resistances of your common-emitter amplifier. Explain, in your own words,...

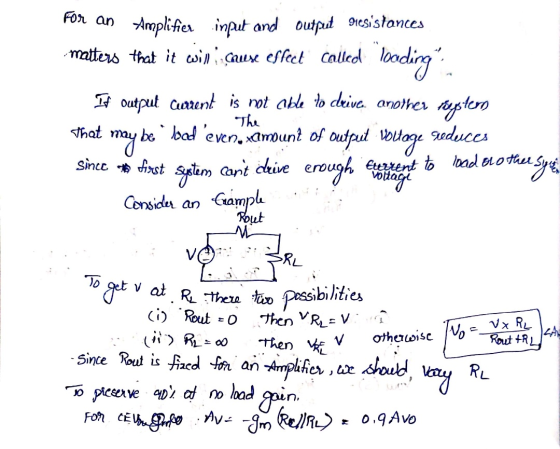

You found the input and output resistances of your
common-emitter amplifier. Explain, in your own words, why these
values are of practical interest when designing
circuits. What happens to your gain, generally, when you attach a

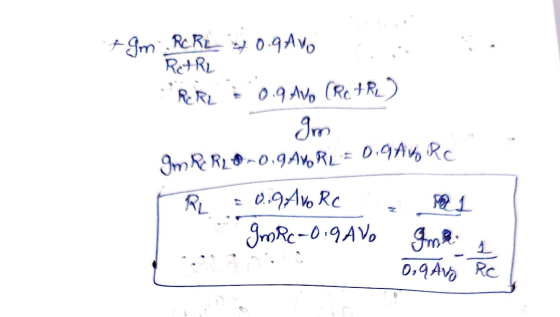

load resistance? If you wanted to preserve at least 90% of your
measured no-load gain when you hook up a load, how to calculate the
value of the minimum load resistance value that would be
acceptable.
Homework Answers
