A 250 W, 120 V, 60 Hz capacitor-start single-phase induction motor has the following constants for the main and auxiliary windings at starting:
ZM = 4.5 + j 4.7 ohm, ZA = 3.8 + j 3.6 ohm.
i-What are the values of the added capacitor and resistance such that the main and auxiliary currents at starting are equal and shifted by 90 degree?
ii-What is the ratio of the starting torque with the added components to that without them?
Homework Answers

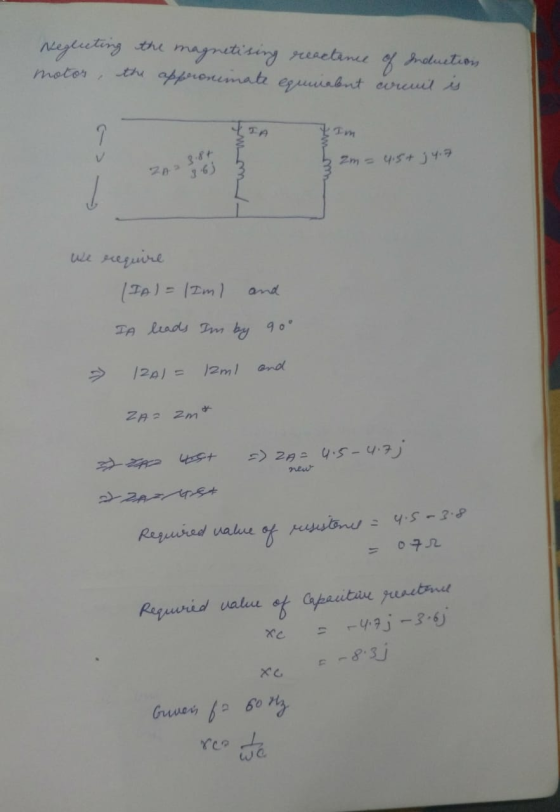

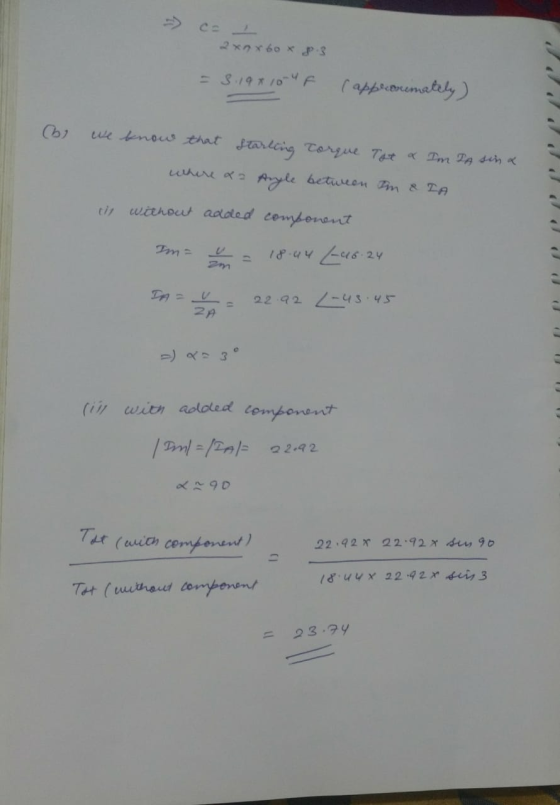

The
problem has been solved by using approximate circuit. The answer
provided is close to exact solution
