For each of the following molecules find: a) SnF4 b) GeH2Br2 c) SiF2l2 d) AlClF2 e)...

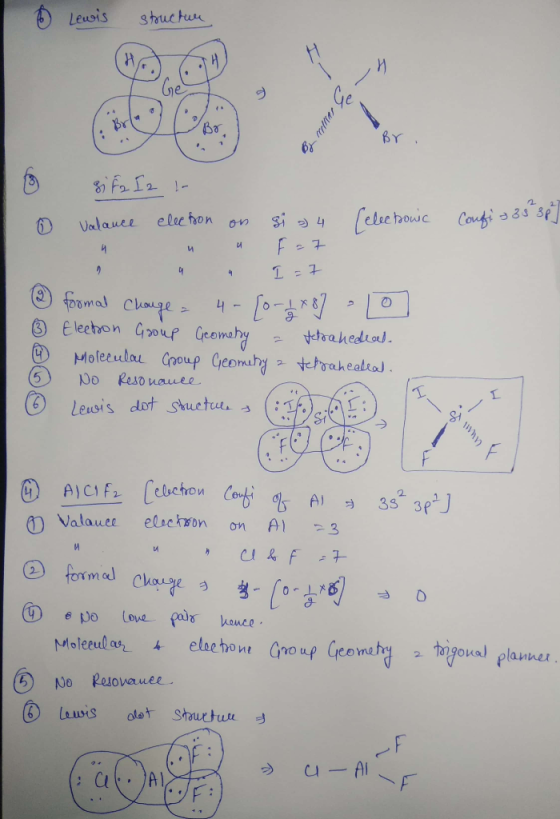

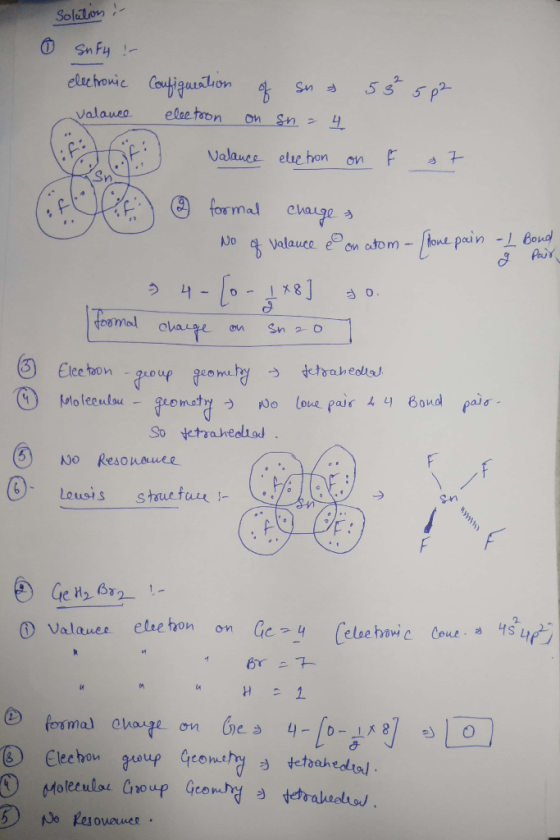

For each of the following molecules find: a) SnF4 b) GeH2Br2 c) SiF2l2 d) AlClF2 e) BBrCl2
1. Number of valence electrons
2. Formal charges on central atoms
3. Electron-group Geometry
4. Molecular Geometry
5. Resonance (if any)
6. Lewis Structures for each molecule
Homework Answers
