Two 4-microfarad capacitors are connected in series with a 12-volt battery. The energy stored in each...

Question

Question

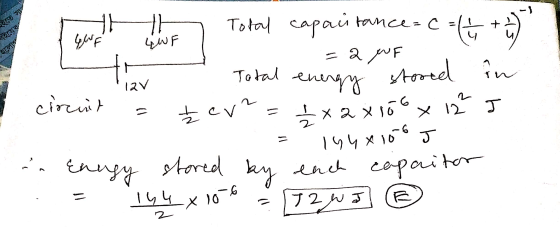

Two 4-microfarad capacitors are connected in series with a 12-volt battery. The energy stored in each capacitor is:

A.) 144μJ

B.) 4μJ

C.) 12μJ

D.) 36μJ

E.) 72μJ

science physics

Answer 1

Answer #1

Answer 2
