An Electric Circuit Question: A voltage divider consists of two 56kilo ohms resistors and a 15V...

An Electric Circuit Question: A voltage divider consists of two 56kilo ohms resistors and a 15V source. Caculate the unloaded output voltage. What will the output voltage be if a load resistor of 1.0 Mega ohm is connected to the output?

***And P.S Please Show steps with use of the voltage divider formula.***

Thank you!!!

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

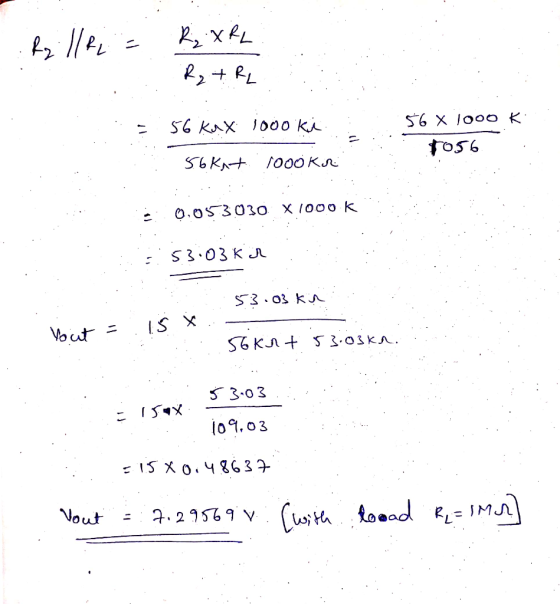

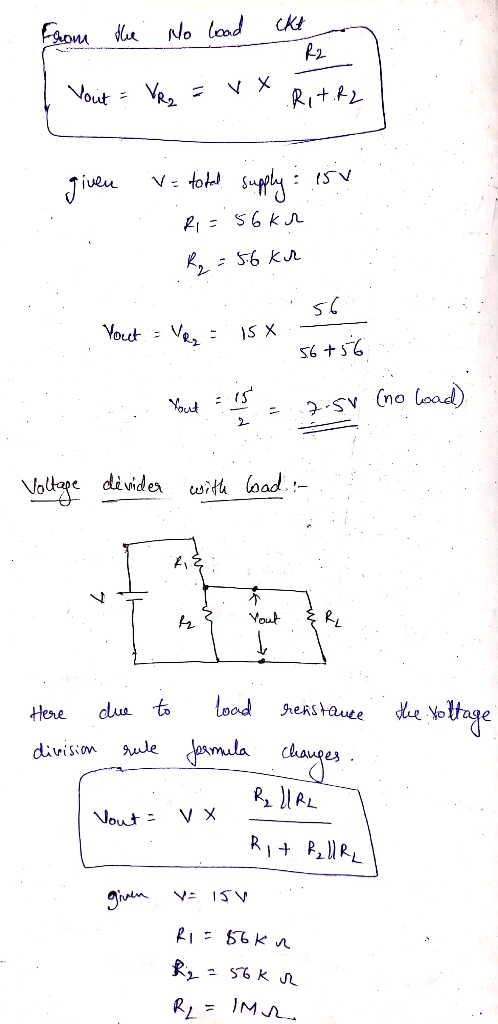

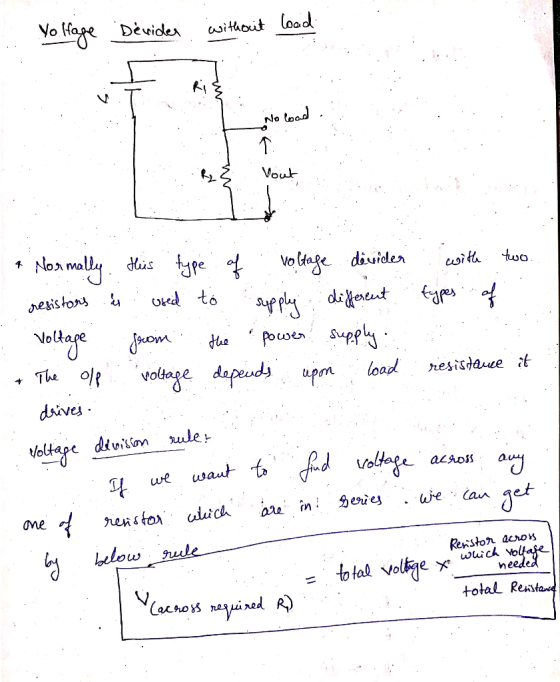

Answer #1

0 0
Add a comment
