A concentration cell is constructed using two Ag-AgBr electrodes, each of which is based on the...

A concentration cell is constructed using two Ag-AgBr electrodes, each of which is based on the half-reaction:

AgBr(s) + e ⇌Ag(s) + Br (aq), E° = 0.070 V. If the anode half-cell contains 0.050 M Br and the cell has an initial potential of 0.090 V at 25°C, what is the concentration of Br− in the cathode?

The answer is .0015M please explain why this is correct and how to solve

science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

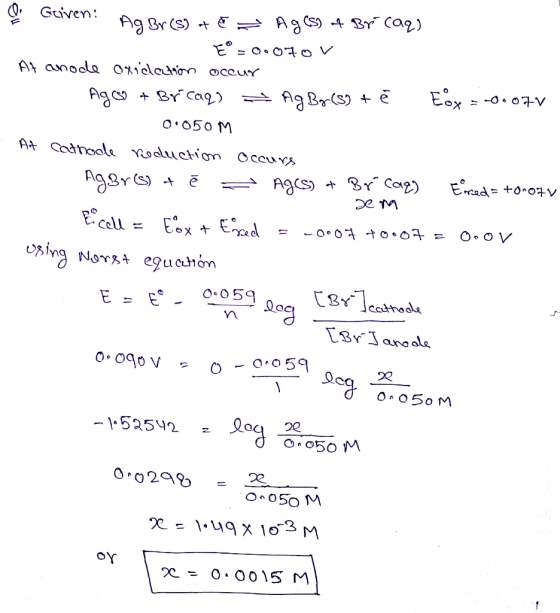

Answer #1

0 0
Add a comment
