The following electrochemical cell was constructed with an unknown concentration of Cl- in the cathode. S.H.E...

The following electrochemical cell was constructed with an unknown concentration of Cl- in the cathode.

S.H.E || Cl- (aq, x M) | AgCl (s) | Ag(s)

a. write the overall cell reaction

b. If the cell potential at 25 C was measured to be +0.267 V, what is the molarity of Cl- in the cathode compartment?

science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

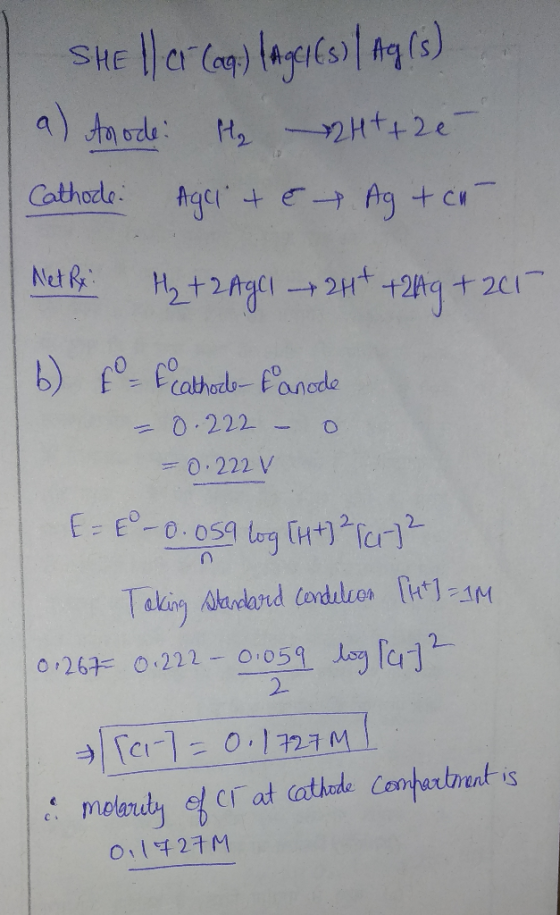

Answer #1

0 0
Add a comment
