A. Calculate the cell potential that would result in the following electrochemical cell at 25oC: Pt...

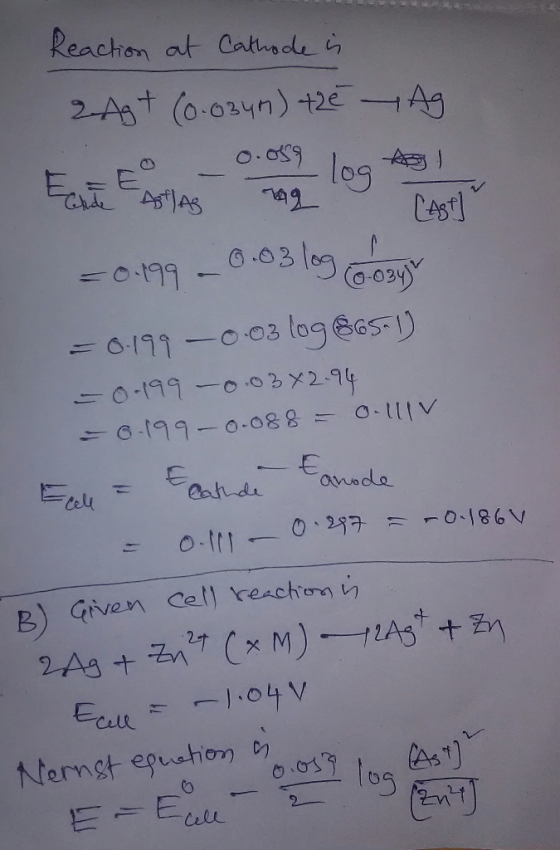

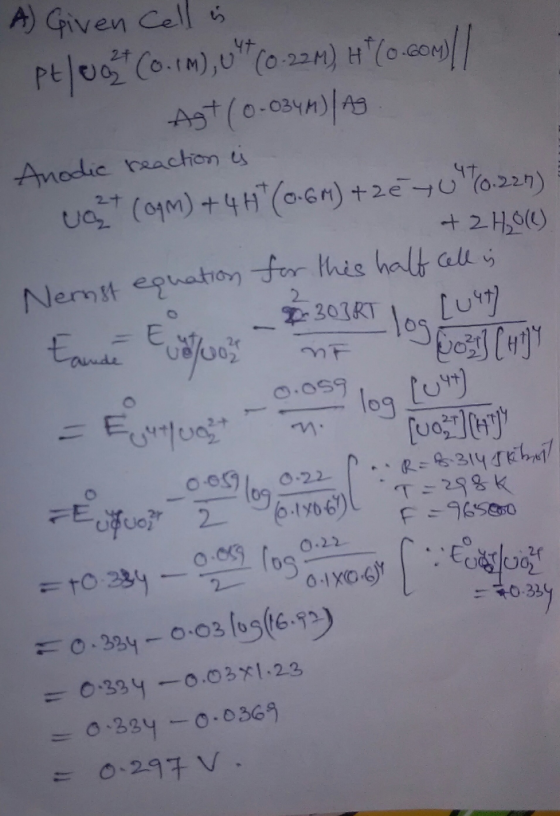

A. Calculate the cell potential that would result in the following electrochemical cell at 25oC: Pt | UO22+(0.10M),U4+(0.22M),H+(0.60M) || Ag+(0.034M) | Ag
Line notation is anode || cathode
Write Nernst equations for the anode and cathode separately. Then Ecell = Ecathode - E anode

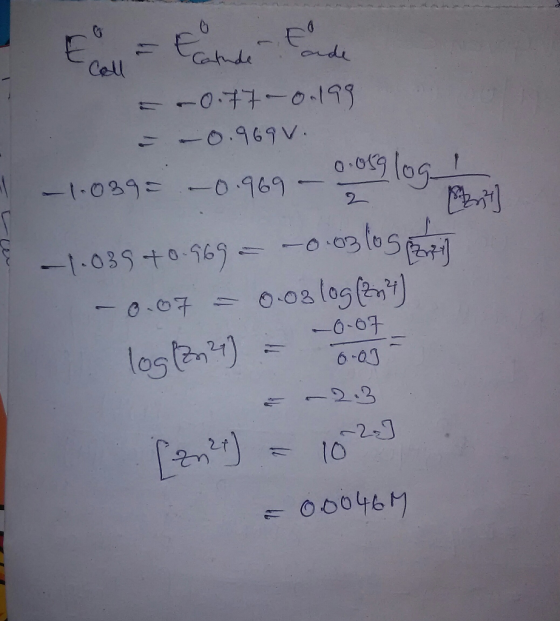

B. If the electrochemical cell Ag/AgCl || Zn2+(x M) | Zn(s) develops a potential of -1.039 volts at 25oC, what is the Zn2+ concentration in the solution? (Answer in decimal format)
Ag/AgCl reference electrode has E=0.199 V
Homework Answers
Add Answer to:
A. Calculate the cell potential that would result in the
following electrochemical cell at 25oC: Pt...
A. Calculate the cell potential that would result in the following electrochemical cell at 25oC: ...
A. Calculate the cell potential that would result in the following electrochemical cell at 25oC: Pt | UO22+(0.10M),U4+(0.22M),H+(0.60M) || Ag+(0.034M) | Ag Line notation is anode || cathode Write Nernst equations for the anode and cathode separately. Then Ecell = Ecathode - E anode B. If the electrochemical cell Ag/AgCl || Zn2+(x M) | Zn(s) develops a potential of -1.039 volts at 25oC, what is the Zn2+ concentration in the solution? (Answer in decimal format) Ag/AgCl reference electrode has E=0.199...
Question 2 Consider a galvanic cell with the following cell notation: Cu(s)|Cu2+(0.0200 M) || Ag+ (0.0200...
Question 2 Consider a galvanic cell with the following cell notation: Cu(s)|Cu2+(0.0200 M) || Ag+ (0.0200 M)|Ag(s) a) Calculate the electrode potential at the cathode (Ecathode) b) Calculate the electrode potential at the anode (Eanode) c) Calculate the cell potential (Ecell)
A concentration cell is called such because both the anode and cathode are build from the same components, meaning the standard cell potential is zero volts and the measured cell potential entirely d...
A concentration cell is called such because both the anode and cathode are build from the same components, meaning the standard cell potential is zero volts and the measured cell potential entirely depends on the relative concentration of ions on either side of the electrochemical cell. Consider the following concentration cell Zns)lZn2() (77M)Zn2()(0.50 M)| Znø) 0.50 M) Zn Given that the concentration of zinc ions in the cathode are 0.50 M, what would the concentration of zinc ions need to...
A voltaic electrochemical cell is constructed using the following reaction. The half-cell components are separated by...
A voltaic electrochemical cell is constructed using the following reaction. The half-cell components are separated by a salt bridge. Zn(s) +12(s)— Zn2+(aq) + 21+(aq) Write the reactions that take place at the anode and at the cathode, the direction in which the electrons migrate in the external circuit, and the direction the anions in the salt bridge migrate. Use smallest possible integer coefficients. If a box is not needed, leave it blank. Enter the reaction that takes place at the...
need help with the rest of the table EXPERIMENT 10 DETERMINATION OF THE ELECTROCHEMICAL SERIES PURPOSE...
need help with the rest of the table
EXPERIMENT 10 DETERMINATION OF THE ELECTROCHEMICAL SERIES PURPOSE To determine the standard cell potential values of several electrochemical coll INTRODUCTION The basis for an electrochemical cell is an oxidation reduction Corredor be divided into two half reactions reaction. This reaction can Oxidation half reaction Gloss of electrons) takes place at the anode, which is the positive electrode that the anions migrate to Chence the name anode) Reduction half reaction (gain of electrons)...
how would you go about solving this problem via using equations just looking for the equation order i should go about solving this problem In this experiment you will be using the two half rea...
how
would you go about solving this problem via using equations
just looking for the equation order i should go about solving this
problem
In this experiment you will be using the two half reactions Cu?"/Cu and Zn2 /Zn. The standard electrode potential, E°, for these half reactions is +0.34V and-0.76V respectively, so the Nernst Equation for these half reactions is the following Cu ea)+2e - Cus) E - 0.34V 0.0592V Cu2+] 0.0592V Zn 2 Note that solids by definition...
Table provided below for context Please answer all parts that you can. 1. Which electrochemical cell...
Table provided below for context
Please answer all parts that you can.
1. Which electrochemical cell had the greatest voltage? Identify the anode and the cathode for this pair, the measured cell potential, and the calculated Eºcell- 2. Which electrochemical cell had the smallest voltage? Identify the anode and the cathode for this pair, the measured cell potential, and the calculated Eºcell- 3. If the oxidation and reduction half-reactions are separated in a battery, this means the oxidizing agent is...
The cell potential of the following electrochemical cell depends on the gold concentration in the cathode...
The cell potential of the following electrochemical cell depends on the gold concentration in the cathode half-cell: Pt(s)|H2(g,1atm)|H+(aq,1.0M)||Au3+(aq,?M)|Au(s). What is the concentration of Au3+ in the solution if Ecell is 1.26 V ? To what pH should you adjust a standard hydrogen electrode to get an electrode potential of -0.117 V ? (Assume that the partial pressure of hydrogen gas remains at 1 atm.) Express your answer using two decimal places.
(10 pornms) For the soltaic cell based on the above reaction, respond to the following The...
(10 pornms) For the soltaic cell based on the above reaction, respond to the following The shoot hand cell notation is The Zn electrode has a f+ OR- charge and is the (anode or cathode?) Write the half-reaction that occurs at the anode Write the half-reaction that occurs at the cathode Complete a sketch of Gibbs Free Energy vs. Reaction Coordinate the reaction Should ΔGo be (+) or (-) ? When the electrochemical cell reaches equilibrium, then AG should be...
answer #4 please. thank you! 3. Calculate the potential of the electrochemical cell described below. Report the answ...
answer #4 please. thank you!
3. Calculate the potential of the electrochemical cell described below. Report the answer to the correct number of significant figures. Cu (S) Cu* (0.00204 M) || Ag+ (0.0439 M) Ag (s) 4. In the electrochemical cell in the above problem, would the cell potential be different if the silver electrode initially had a thin coating of AgCl on it?
A concentration cell is called such because both the anode and cathode are build from the same components, meaning the standard cell potential is zero volts and the measured cell potential entirely depends on the relative concentration of ions on either side of the electrochemical cell. Consider the following concentration cell Zns)lZn2() (77M)Zn2()(0.50 M)| Znø) 0.50 M) Zn Given that the concentration of zinc ions in the cathode are 0.50 M, what would the concentration of zinc ions need to...
A voltaic electrochemical cell is constructed using the following reaction. The half-cell components are separated by a salt bridge. Zn(s) +12(s)— Zn2+(aq) + 21+(aq) Write the reactions that take place at the anode and at the cathode, the direction in which the electrons migrate in the external circuit, and the direction the anions in the salt bridge migrate. Use smallest possible integer coefficients. If a box is not needed, leave it blank. Enter the reaction that takes place at the...
need help with the rest of the table
EXPERIMENT 10 DETERMINATION OF THE ELECTROCHEMICAL SERIES PURPOSE To determine the standard cell potential values of several electrochemical coll INTRODUCTION The basis for an electrochemical cell is an oxidation reduction Corredor be divided into two half reactions reaction. This reaction can Oxidation half reaction Gloss of electrons) takes place at the anode, which is the positive electrode that the anions migrate to Chence the name anode) Reduction half reaction (gain of electrons)...
how
would you go about solving this problem via using equations
just looking for the equation order i should go about solving this
problem
In this experiment you will be using the two half reactions Cu?"/Cu and Zn2 /Zn. The standard electrode potential, E°, for these half reactions is +0.34V and-0.76V respectively, so the Nernst Equation for these half reactions is the following Cu ea)+2e - Cus) E - 0.34V 0.0592V Cu2+] 0.0592V Zn 2 Note that solids by definition...
Table provided below for context
Please answer all parts that you can.
1. Which electrochemical cell had the greatest voltage? Identify the anode and the cathode for this pair, the measured cell potential, and the calculated Eºcell- 2. Which electrochemical cell had the smallest voltage? Identify the anode and the cathode for this pair, the measured cell potential, and the calculated Eºcell- 3. If the oxidation and reduction half-reactions are separated in a battery, this means the oxidizing agent is...
(10 pornms) For the soltaic cell based on the above reaction, respond to the following The shoot hand cell notation is The Zn electrode has a f+ OR- charge and is the (anode or cathode?) Write the half-reaction that occurs at the anode Write the half-reaction that occurs at the cathode Complete a sketch of Gibbs Free Energy vs. Reaction Coordinate the reaction Should ΔGo be (+) or (-) ? When the electrochemical cell reaches equilibrium, then AG should be...
answer #4 please. thank you!
3. Calculate the potential of the electrochemical cell described below. Report the answer to the correct number of significant figures. Cu (S) Cu* (0.00204 M) || Ag+ (0.0439 M) Ag (s) 4. In the electrochemical cell in the above problem, would the cell potential be different if the silver electrode initially had a thin coating of AgCl on it?
