A. Calculate the cell potential that would result in the following electrochemical cell at 25oC: ...

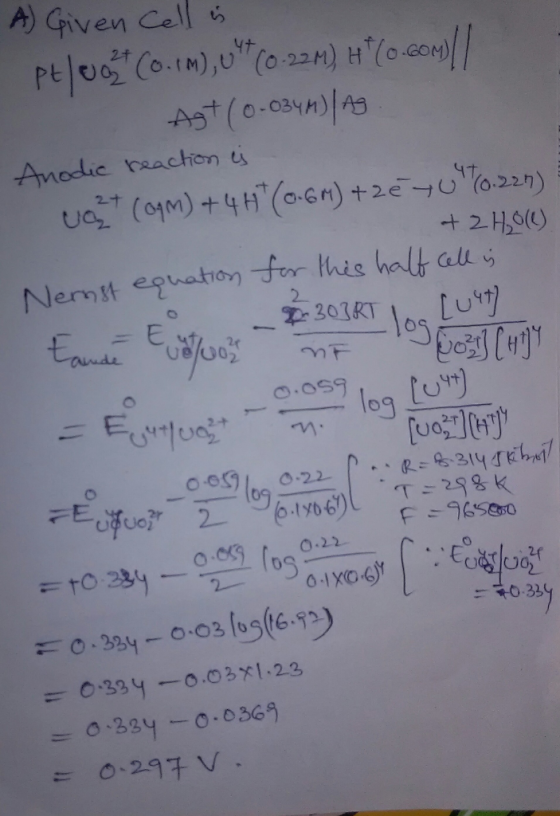

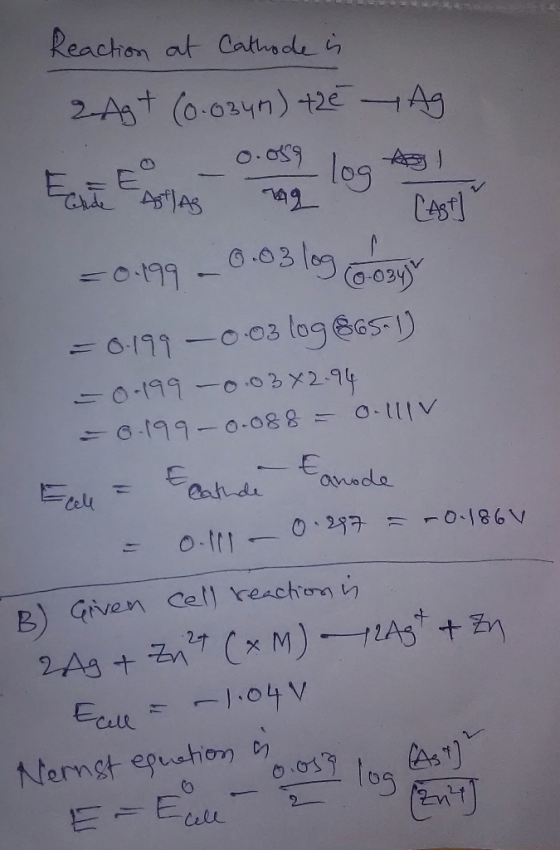

A. Calculate the cell potential that would result in the following electrochemical cell at 25oC: Pt | UO22+(0.10M),U4+(0.22M),H+(0.60M) || Ag+(0.034M) | Ag
Line notation is anode || cathode
Write Nernst equations for the anode and cathode separately. Then Ecell = Ecathode - E anode

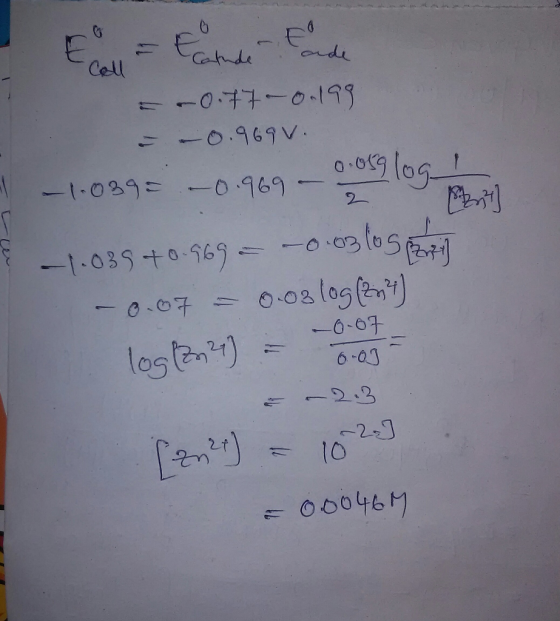

B. If the electrochemical cell Ag/AgCl || Zn2+(x M) | Zn(s) develops a potential of -1.039 volts at 25oC, what is the Zn2+ concentration in the solution? (Answer in decimal format)
Ag/AgCl reference electrode has E=0.199 V
