When does an EM wave undergo only refraction vs only reflection vs reflection and refraction? More...

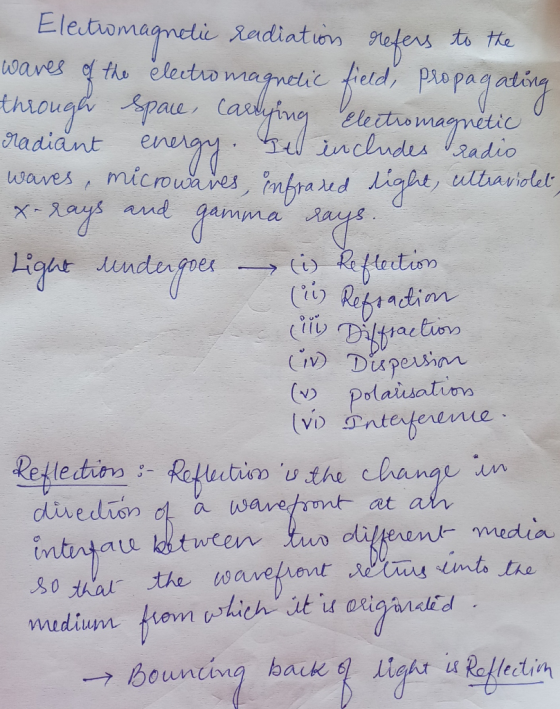

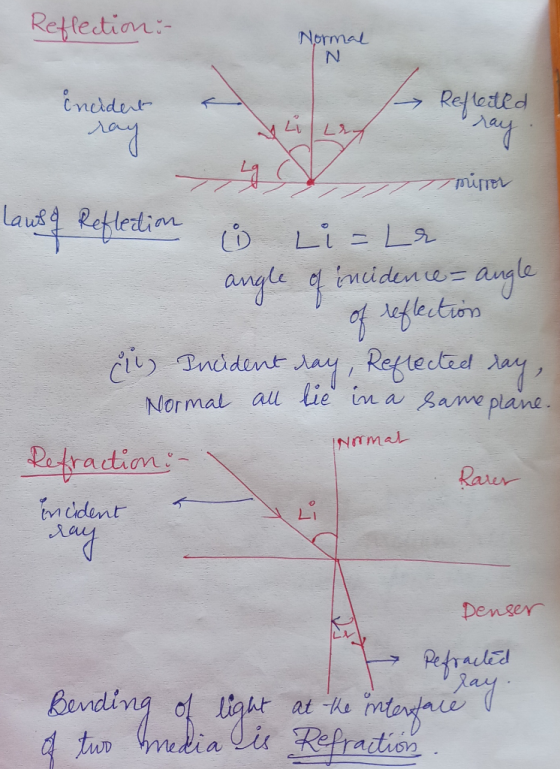

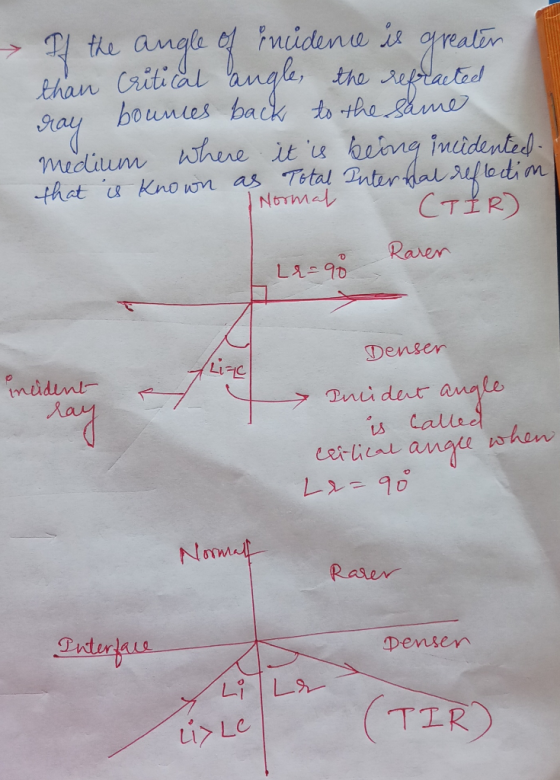

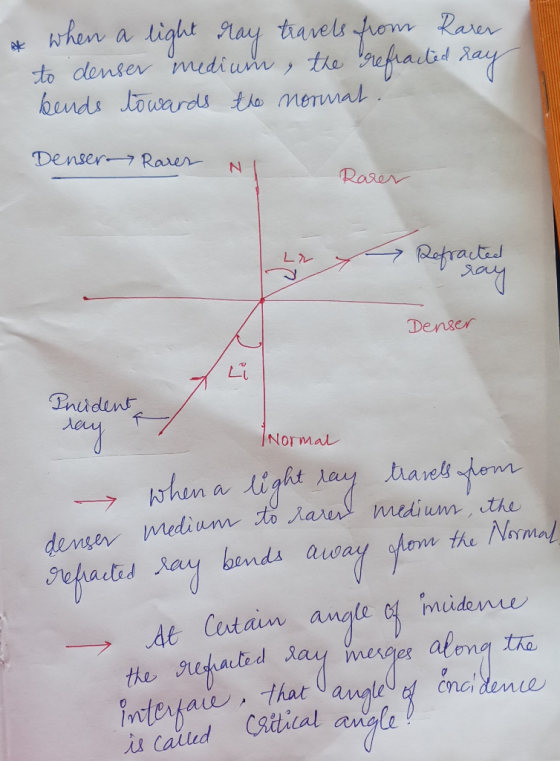

When does an EM wave undergo only refraction vs only reflection vs reflection and refraction? More so, what happens when an EM wave encounters a more dense medium at an angle less than the critical angle? Thank you.
Homework Answers
u
Add Answer to:
When does an EM wave undergo only refraction vs only reflection
vs reflection and refraction? More...
When a light ray travels from a more dense medium to a less dense medium and...
When a light ray travels from a more dense medium to a less dense medium and the light ray intercepts the interface at some angle, the light ray will be deviated away from the normal to the interface. When the angle of the incident light ray is equal or greater than some critical angle , the light ray will be bent away from the normal unit the angle of refraction becomes 90, and total internal reflection occurs. The critical angle, , for two...
Lab 08: Reflection and Refraction of Light You will need to run a simulation to do...
Lab 08: Reflection and Refraction of Light You will need to run a simulation to do the lab. Answer the following questions as you work through the lab. Write your answers in blue. (Note that we may miss your response if it does not stand out ) Re-load the file in word or PDF format in Canvas before the due date. Overview Light bends when it enters from one medium to another. This bending of light is called Refraction of...
Light rays in a material with index of refraction 1.25 can undergo total internal reflection when...
Light rays in a material with index of refraction 1.25 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 65.1 degrees. O A 1.13 OB.226 O C.3.39 OD.4.45 OE. 5.56
Part A Which of the following statements is true when light rays undergo total internal reflection?...
Part A Which of the following statements is true when light rays undergo total internal reflection? The angle of refraction of the light rays is less than the critical angle. The angle of incidence of the light rays is equal to zero. . The angle of refraction of the light rays is equal to the critical angle. The angle of incidence of the light rays is greater than the critical angle. The angle of reflection of the light rays is...
Light rays in a material with index of refrection 1.33 can undergo total internal reflection when...
Light rays in a material with index of refrection 1.33 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 71.50 index of refraction:
Light rays in a material with index of refrection 1.25 can undergo total internal reflection when...
Light rays in a material with index of refrection 1.25 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 78.1° index of refraction:
Light rays in a material with index of refrection 1.31 can undergo total internal reflection when...
Light rays in a material with index of refrection 1.31 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 78.1° .
Light rays in a material with index of refrection 1.27 can undergo total internal reflection when...
Light rays in a material with index of refrection 1.27 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 79.3°.
Snell's Law and the Law of Reflection explain how light is redirected when it encounters a...
Snell's Law and the Law of Reflection explain how light is redirected when it encounters a surface between two media. In the extreme, light may only reflect at a boundary, and go back into the medium it was in. More often, some of it reflects and some goes through. If the boundary is plane and flat, then these laws are easy to interpret. When the boundary is curved, they describe happens at every point on the surface. One of the...
14) A glass prism with an index of refraction of 1.53 sits on a horizontal surface,...
14) A glass prism with an index of refraction of 1.53 sits on a horizontal surface, as shown. A ray of light traveling horizontally, enters the prism on its vertical face, as shown. If the labeled angle is O= 470, then will there be total internal reflection when the light ray strikes the slanted face of the prism? Show your work IDENTIFY: Fill in the blanks with "vertical", "horizontal","zero" or "90". The normal to the vertical face of the prism...
Light rays in a material with index of refraction 1.25 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 65.1 degrees. O A 1.13 OB.226 O C.3.39 OD.4.45 OE. 5.56
Part A Which of the following statements is true when light rays undergo total internal reflection? The angle of refraction of the light rays is less than the critical angle. The angle of incidence of the light rays is equal to zero. . The angle of refraction of the light rays is equal to the critical angle. The angle of incidence of the light rays is greater than the critical angle. The angle of reflection of the light rays is...
Light rays in a material with index of refrection 1.33 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 71.50 index of refraction:
Light rays in a material with index of refrection 1.25 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 78.1° index of refraction:
14) A glass prism with an index of refraction of 1.53 sits on a horizontal surface, as shown. A ray of light traveling horizontally, enters the prism on its vertical face, as shown. If the labeled angle is O= 470, then will there be total internal reflection when the light ray strikes the slanted face of the prism? Show your work IDENTIFY: Fill in the blanks with "vertical", "horizontal","zero" or "90". The normal to the vertical face of the prism...
