Find soil pressure at a depth of 20 feet below ground surface. Water is at 10...

Question

Question

Find soil pressure at a depth of 20 feet below ground surface. Water is at 10 feet below ground surface. Soil unit weight is 100 pcf.

engineering Civil-Engineering

Answer 1

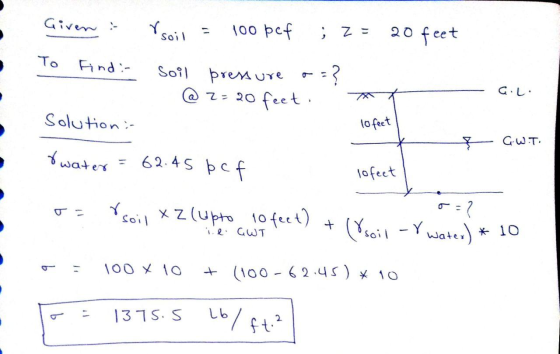

Answer #1

feel free to reach out to me through comment section if any doubt comes, and if you like my work then please thumbs up

Answer 2
