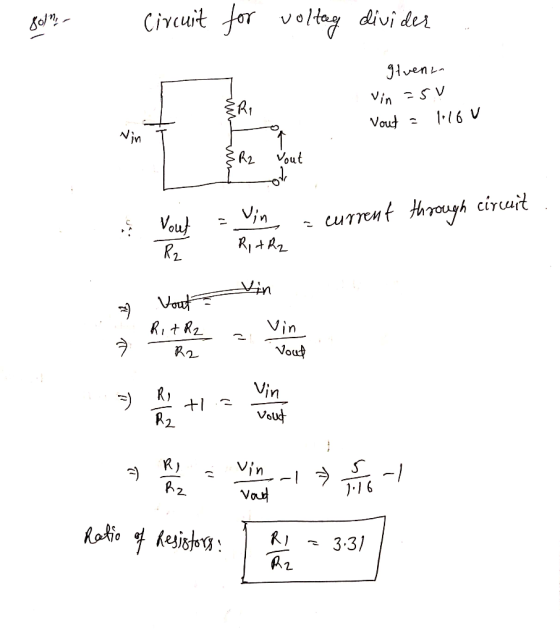

Design a voltage divider where Vin= 5V and Vout= ~1.16V. What ratio of resistors is required?

Question

Question

Design a voltage divider where V_in= 5V and V_out= ~1.16V. What ratio of resistors is required?

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Build this voltage divider below in Multisim. divi der Vortage Vout - 5V Vin= 50N Show...

Build this voltage divider below in Multisim. divi der Vortage Vout - 5V Vin= 50N
Sketch the output Vout of the following circuits as a function of Vin. Mark and expressx- and y- intercepts in terms of parameters given in the drawing. (Hint: voltage divider) Vin Vref-AW R2 Vout VE...

Sketch the output Vout of the following circuits as a function of Vin. Mark and expressx- and y- intercepts in terms of parameters given in the drawing. (Hint: voltage divider) Vin Vref-AW R2 Vout VEE Sketch the output Vout of the following circuits as a function of Vin. Mark and expressx- and y- intercepts in terms of parameters given in the drawing. (Hint: voltage divider) Vin Vref-AW R2 Vout VEE
The circuit diagrams display a device called a voltage divider. Long Resistor Slide Voltage Divider 2...

The circuit diagrams display a device called a voltage divider. Long Resistor Slide Voltage Divider 2 V. m ( R, VOUT = R + Suppose a voltage divider is constructed from two fixed resistors. If VIN = 30 V, R1 = 126.2, what should the value of R2 be so that Vout is 10 V? R2 =

VCC RC1 RC2 Vout+ Vout Q1 NPN Q2 NPN Vin Vin- Q3 NPN Use VA-5V for...

VCC RC1 RC2 Vout+ Vout Q1 NPN Q2 NPN Vin Vin- Q3 NPN Use VA-5V for Q3, and VA-00 for Q1 and Q2. If IEE-1mA, Rc,-12711 Ω, and RC2-1271 2Ω, what is the common mode to differential mode conversion gain? What is the common mode rejection ratio? Use Vr = 26mV and β 100 . Assume IE=Ic tr all a ACM-DMl CMRR- dB
Sketch Vout at DC as a function of input voltage at DC for-5 V < Vin...

Sketch Vout at DC as a function of input voltage at DC for-5 V < Vin < 5V. Assume an ideal silicon diode. R1 10k R2 D1 10k
Sketch Vout at DC as a function of input voltage at DC for-5 V < Vin...

Sketch Vout at DC as a function of input voltage at DC for-5 V < Vin < 5V. Assume an ideal silicon diode. R1 10k R2 D1 10k

Draw a voltage divider that divides a 10V DC supply by half and provides 5V acrosss...

Draw a voltage divider that divides a 10V DC supply by half and provides 5V acrosss a 1K Ω resistor must design the circuit
a) [3 pts.] Design and draw a voltage divider that produces an output voltage of 14.4...

a) [3 pts.] Design and draw a voltage divider that produces an output voltage of 14.4 V. Components given: 12-V batteries, 100-12 resistors, 200-12 resistors, 300-resistors (use as many of each as you would like). b) [3 pts.] Calculate the magnitude of the loading effect as a percentage of nominal voltage if a 10 k2 resistive load is connected to the voltage divider output of 14.4 V?
2. Voltage divider for a group of resistors Ri Figure 2 The voltage divider circuit For...

2. Voltage divider for a group of resistors Ri Figure 2 The voltage divider circuit For the circuit shown above, derive the espression for the output voltage V, as a function of the input voltage and the resistances (V, Ri,and R2)

Assuming that Vin is a 1 Volt amplitude sinusoid at 1000FHz and zero phase, calculate Vout...

Assuming that Vin is a 1 Volt amplitude sinusoid at 1000FHz and zero phase, calculate Vout of the following voltage divider: (be sure to rationalize j to the numerator) 0.01 uf AC Voltage vin out 15K out
