A ball moves in a vertical circle attached to a light string of length 0.3 m...

A ball moves in a vertical circle attached to a light string of length 0.3 m fixed at its center. Assume that the only force acting on the ball are its weight and the tension of the string. Determine the minimum speed the ball must have, when the string makes a 90 degree angle with the vertical, so as to complete the circle by reaching the top.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

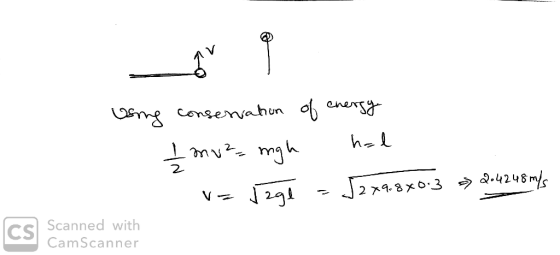

Answer #1

0 0
Add a comment
