A 1 ton (910 kg) bucket of rocks is suspended from a sturdy lightweight beam 0.85m...

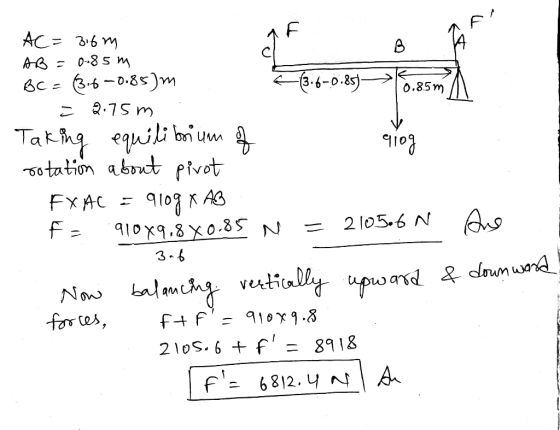

A 1 ton (910 kg) bucket of rocks is suspended from a sturdy lightweight beam 0.85m from a pivot. the man lifts the beam at it's end, 3.6 m from the pivot and holds it steady. How much force must the man apply? What is the force on the beam from the pivot?
Homework Answers
