a four-bar mechanism. Link 2 rotates counterclockwise at a constant 10 rad/s. The weight of links...
a four-bar mechanism. Link 2 rotates counterclockwise at a constant 10 rad/s. The weight of links 2 and 3 is negligible, and link 4 is 17 kg. The radius of gyration of link 4 relative to the center of gravity is 45 mm. Determine the following: 1. The linear acceleration of the center of gravity of link 4, 2. The angular acceleration of link 4, 3. The inertial force and torque of link Using relative velocity method

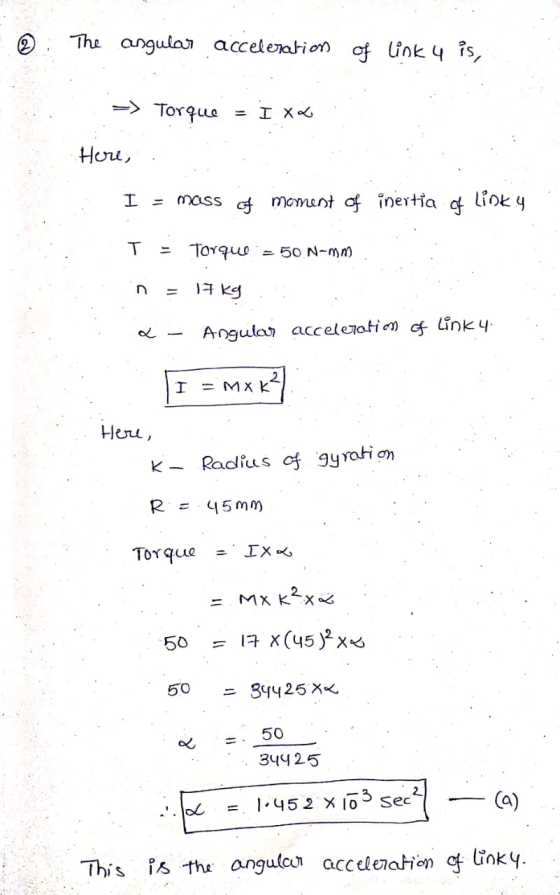

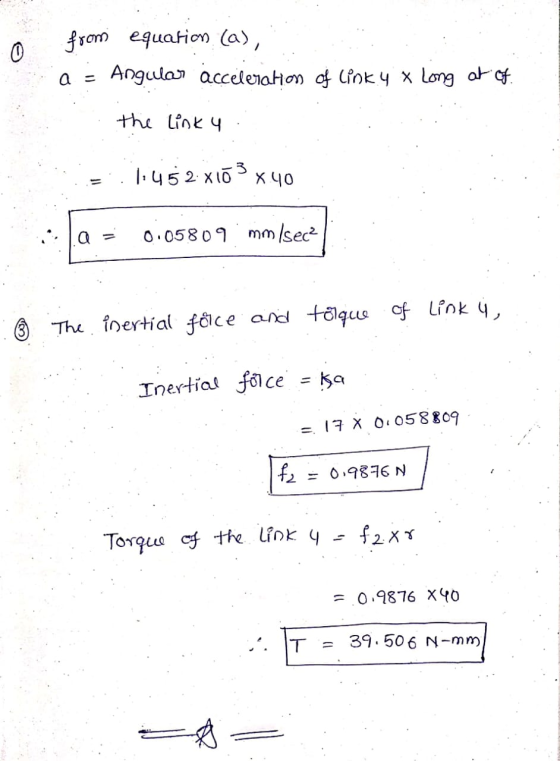

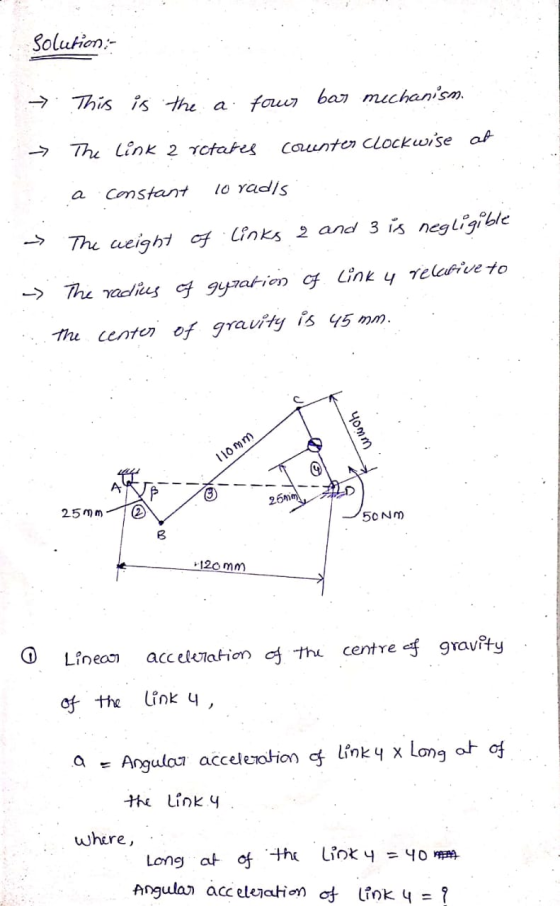

Homework Answers
Add Answer to:
a four-bar mechanism. Link 2 rotates counterclockwise at a
constant 10 rad/s. The weight of links...
1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise...
1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise direction Determine: B D 0 1 1 m -450 S C 1 m 1 m Write the coordinates of all joints and COM. Assume the COM is in the center of each link: A B D С GI G2 G3 X у Write the equations for velocities and solve the system of equations (25 pts): a) Angular velocity of link BD: b) Angular velocity...
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular...
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular acceleration Coc = 2.8 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to the sector. Determine the angular velocity w and the angular acceleration a of the sector. The angular velocity and the angular acceleration are positive if counterclockwise, negative if clockwise. 31 B 305 mm DOC 11 doc OA = 380 mm Answers: rad/s rad/s2 Bar OC...
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 50 rad/s...
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 50 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 85 mm 210 mm OA 135 mm 135 mm Answers: rad/s? OAOT0.00 ap 738 948 ) m/s2
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 30 rad/s...
If link AB of the four-bar linkage has a constant
counterclockwise angular velocity of 30 rad/s during an interval
which includes the instant represented, determine the angular
acceleration of AO (positive if counterclockwise, negative
if clockwise) and the acceleration of point D.
80 mm L - - OAB 195 mm 130 130 mm 1 mm 1 Answers: DAO = rad/s2 ad = 0 + j) m/s2
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 53 rad/s...
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 53 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 90 mm B WAB 190 mm 140 mm 140 mm Answers: CAO = Jrad/s2 ap li) m/s2
P4.2: The four-bar mechanism in Figure P4.2 has the link lengths: LAB = 4", LED =...
P4.2: The four-bar mechanism in Figure P4.2 has the link lengths: LAB = 4", LED = 24", Loc = 14", LA = 30". The location of COM is as follows: LAG = 2.120"; LEG2 = 11.863"; LDG = 6.722". The crank 1 rotates counterclockwise with the angular displacement 8. = 27t-t [rad), angular velocity 0. = , = 21 [rad/s], and angular accelera- tion &= 7= 0 [rad/s). The mass and moment of inertia relative to each link's COM are...
The instrument's link AB rotates counterclockwise at a constant angular acceleration of 6 rad/s. Measure the...
The instrument's link AB rotates counterclockwise at a
constant angular acceleration of 6 rad/s. Measure the angular
velocity of the link BD and DE in the position shown.
D 0.12m 0.30 m -12 m 6 rad/s 0.12 m 2 ?? P16.30 ??? 6 rad/s? ??????? ????. ??
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration...
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration oAB of link AB for the position shown. The angular acceleration is positive if counterclockwise, negative if clockwise 65 mm 13.6 radls 0 AB 135 mm Answers: OAB rad/s2
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this...
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this article, determine the angular velocity w of link AB and the velocity of roller for the position illustrated. The angular velocity is positive if counterclockwise, negative if clockwise. Also, find the magnitude of the velocity of the center of link AB. B 65 mm 11.5 rad/s 50 mm AB.135 mm The instantaneous center of body OA is at O. The velocity of Ais vertical...
Bar OC rotates with a clockwise angular velocity ωOC = 2.2 rad/s and a counterclockwise angular acceleration αOC = 2.3 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to t...
Bar OC rotates with a clockwise angular velocityωOC = 2.2 rad/s and a counterclockwise angular
acceleration αOC = 2.3 rad/s2. The
bar OC is a slotted member which accommodates the pin A
attached to the sector. Determine the angular velocity ωand the angular acceleration α of the sector. The angular
velocity and the angular acceleration are positive if
counterclockwise, negative if clockwise.
1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise direction Determine: B D 0 1 1 m -450 S C 1 m 1 m Write the coordinates of all joints and COM. Assume the COM is in the center of each link: A B D С GI G2 G3 X у Write the equations for velocities and solve the system of equations (25 pts): a) Angular velocity of link BD: b) Angular velocity...
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular acceleration Coc = 2.8 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to the sector. Determine the angular velocity w and the angular acceleration a of the sector. The angular velocity and the angular acceleration are positive if counterclockwise, negative if clockwise. 31 B 305 mm DOC 11 doc OA = 380 mm Answers: rad/s rad/s2 Bar OC...
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 50 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 85 mm 210 mm OA 135 mm 135 mm Answers: rad/s? OAOT0.00 ap 738 948 ) m/s2
If link AB of the four-bar linkage has a constant
counterclockwise angular velocity of 30 rad/s during an interval
which includes the instant represented, determine the angular
acceleration of AO (positive if counterclockwise, negative
if clockwise) and the acceleration of point D.
80 mm L - - OAB 195 mm 130 130 mm 1 mm 1 Answers: DAO = rad/s2 ad = 0 + j) m/s2
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 53 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 90 mm B WAB 190 mm 140 mm 140 mm Answers: CAO = Jrad/s2 ap li) m/s2
P4.2: The four-bar mechanism in Figure P4.2 has the link lengths: LAB = 4", LED = 24", Loc = 14", LA = 30". The location of COM is as follows: LAG = 2.120"; LEG2 = 11.863"; LDG = 6.722". The crank 1 rotates counterclockwise with the angular displacement 8. = 27t-t [rad), angular velocity 0. = , = 21 [rad/s], and angular accelera- tion &= 7= 0 [rad/s). The mass and moment of inertia relative to each link's COM are...
The instrument's link AB rotates counterclockwise at a
constant angular acceleration of 6 rad/s. Measure the angular
velocity of the link BD and DE in the position shown.
D 0.12m 0.30 m -12 m 6 rad/s 0.12 m 2 ?? P16.30 ??? 6 rad/s? ??????? ????. ??
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration oAB of link AB for the position shown. The angular acceleration is positive if counterclockwise, negative if clockwise 65 mm 13.6 radls 0 AB 135 mm Answers: OAB rad/s2
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this article, determine the angular velocity w of link AB and the velocity of roller for the position illustrated. The angular velocity is positive if counterclockwise, negative if clockwise. Also, find the magnitude of the velocity of the center of link AB. B 65 mm 11.5 rad/s 50 mm AB.135 mm The instantaneous center of body OA is at O. The velocity of Ais vertical...
Bar OC rotates with a clockwise angular velocityωOC = 2.2 rad/s and a counterclockwise angular
acceleration αOC = 2.3 rad/s2. The
bar OC is a slotted member which accommodates the pin A
attached to the sector. Determine the angular velocity ωand the angular acceleration α of the sector. The angular
velocity and the angular acceleration are positive if
counterclockwise, negative if clockwise.
