An offset slider-crank mechanism consists of 4 links: Link 1: ground: a horizontal slider track that...
An offset slider-crank mechanism consists of 4 links:
Link 1: ground: a horizontal slider track that passes through the origin O. Also, a fixed pivot at point A, located 50 in. above point O
Link 2: moving, endpoints A & B, R = 10 in., ω2 = 10 deg/s ccw
Link 3: moving, endpoints B & C, R = 65 in.
Link 4: moving slider, point C, located to the right of the origin

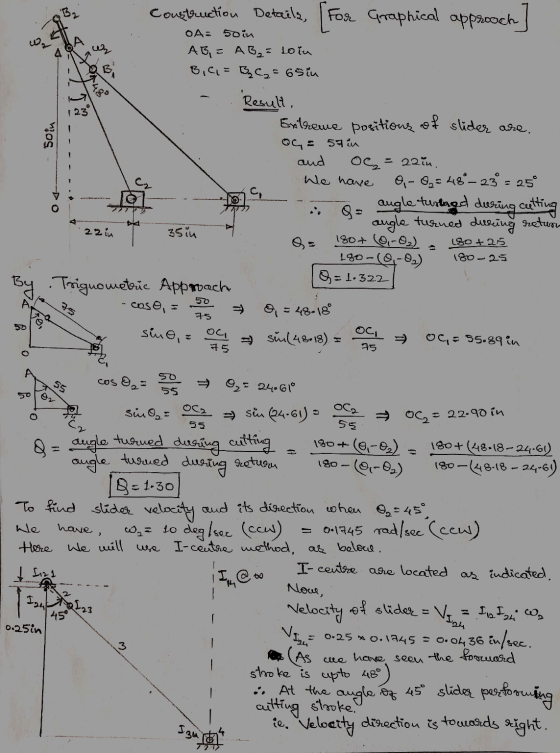

The working stroke is to the right and the return stroke is to the left. Determine the minimum and maximum stroke positions (RCO). Once those are known, determine the timing ratio Q as follows: (1) Use a graphical approach to determine these values. (2) Use a trigonometric approach to determine these values. (3) Estimate the slider velocity and direction, when θ2 = 45°.
Homework Answers
Add Answer to:
An offset slider-crank mechanism consists of 4 links:
Link 1: ground: a horizontal slider track that...
1. The offset slider-crank mechanism illustrated in Figure is driven by slider 4 at a velocity...
1. The offset slider-crank mechanism illustrated in Figure is driven by slider 4 at a velocity Ve-101 m/s at the position shown. Determine the instantaneous velocity of point D and the angular velocities of links 2 and 3. Show details of your work to get full marks (20 points) 50 140 2 45. A(G 20 50 1 of
1. The offset slider-crank mechanism illustrated in Figure is driven by slider 4 at a velocity Ve-101 m/s at the position shown....
P4.3: The crank-slider offset mechanism shown in Figure P4.3 has the link lengths: Las - 4",...
P4.3: The crank-slider offset mechanism shown in Figure P4.3 has the link lengths: Las - 4", Lap = 24", Loc=0.19". The location of COM is as follows: LAG = 2.330"; LEG2 = 12"; LDG: = 0". In the initial position (home position), 0.19" Tact HO CO 1" o 28 the crank AB makes 0° with the horizontal, where the coordinates of contact point Care (28", 1"). The crank 1 rotates counterclockwise with the angu- lar displacement 0 = 2t (rad),...
For the planar mechanism of figure below, link 4 servers as slider support which is free...
For the planar mechanism of figure below, link 4 servers as
slider support which is free to rotate about the z axis, but has
point D kept stationary. Link 3 is a rigid member continuous over
the rotational joint B. The lengths of the links 2 and 5 are
respectively 3 cm and 7 cm, and the distance AB is 6 cm. The angles
of the links 2, 3, and 5 with the positive horizontal are denoted
as θ2 ,...
(20%) posmoN ANALYSIS, A mechanism consists of 4 links: Link 1: ground, R 120 in, endpoints A & D, shown below. Link 2: moving, endpoints A & B, R = 40 in, θ,-65° Link 3: moving, endpoint...
(20%) posmoN ANALYSIS, A mechanism consists of 4 links: Link 1: ground, R 120 in, endpoints A & D, shown below. Link 2: moving, endpoints A & B, R = 40 in, θ,-65° Link 3: moving, endpoints B & C, R 45 in Link 4: moving, endpoints C & D, R = 145 in Unknowns: 03 (angle of Link 3) & 04 (angle of Link 4) There are two possible solutions for the position of this mechanism. Find both unknowns...
This assignment pertains to the planar fourbar mechanism illustrated here. Link 1 is the ground l...
This assignment pertains to the planar fourbar mechanism
illustrated here. Link 1 is the ground link and includes points O2
and O4. Link 2 connects points O2 and A. Link 3 is a rigid body
with moving pivots at points A and B, and Point P is another fixed
point on Link 3. Link 4 connects points O4 and B. A 2-D Cartesian
coordinate system is fixed to ground with its origin at O2.
Can you solve all of it...
1. The offset slider-crank mechanism illustrated in Figure is driven by slider 4 at a velocity Ve-101 m/s at the position shown. Determine the instantaneous velocity of point D and the angular velocities of links 2 and 3. Show details of your work to get full marks (20 points) 50 140 2 45. A(G 20 50 1 of
1. The offset slider-crank mechanism illustrated in Figure is driven by slider 4 at a velocity Ve-101 m/s at the position shown....
P4.3: The crank-slider offset mechanism shown in Figure P4.3 has the link lengths: Las - 4", Lap = 24", Loc=0.19". The location of COM is as follows: LAG = 2.330"; LEG2 = 12"; LDG: = 0". In the initial position (home position), 0.19" Tact HO CO 1" o 28 the crank AB makes 0° with the horizontal, where the coordinates of contact point Care (28", 1"). The crank 1 rotates counterclockwise with the angu- lar displacement 0 = 2t (rad),...
For the planar mechanism of figure below, link 4 servers as
slider support which is free to rotate about the z axis, but has
point D kept stationary. Link 3 is a rigid member continuous over
the rotational joint B. The lengths of the links 2 and 5 are
respectively 3 cm and 7 cm, and the distance AB is 6 cm. The angles
of the links 2, 3, and 5 with the positive horizontal are denoted
as θ2 ,...
(20%) posmoN ANALYSIS, A mechanism consists of 4 links: Link 1: ground, R 120 in, endpoints A & D, shown below. Link 2: moving, endpoints A & B, R = 40 in, θ,-65° Link 3: moving, endpoints B & C, R 45 in Link 4: moving, endpoints C & D, R = 145 in Unknowns: 03 (angle of Link 3) & 04 (angle of Link 4) There are two possible solutions for the position of this mechanism. Find both unknowns...
This assignment pertains to the planar fourbar mechanism
illustrated here. Link 1 is the ground link and includes points O2
and O4. Link 2 connects points O2 and A. Link 3 is a rigid body
with moving pivots at points A and B, and Point P is another fixed
point on Link 3. Link 4 connects points O4 and B. A 2-D Cartesian
coordinate system is fixed to ground with its origin at O2.
Can you solve all of it...
