Light from a laser strikes a diffraction grating that has 5 312 grooves per centimeter. The...

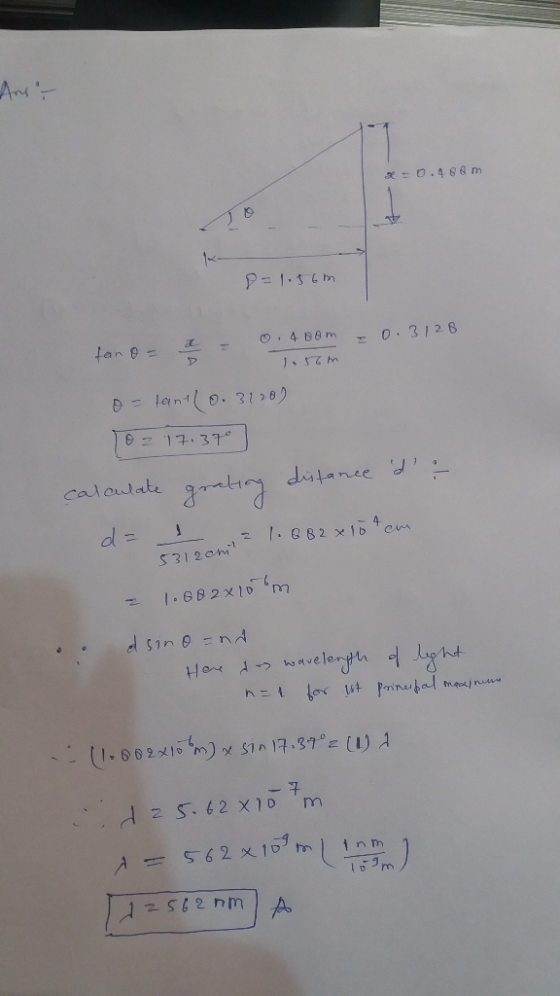

Light from a laser strikes a diffraction grating that has 5 312 grooves per centimeter. The central and first-order principal maxima are separated by 0.488 m on a wall 1.56 m from the grating. Determine the wavelength of the laser light. (In this problem, assume that the light is incident normally on the gratings.)
________nm
5.6128 and 56204 ARE NOT CORRECT
Homework Answers
Add Answer to:
Light from a laser strikes a diffraction grating that has 5 312
grooves per centimeter. The...
Light from an argon laser strikes a dirfraction grating that has 5,166 grooves per centimeter. The...
Light from an argon laser strikes a dirfraction grating that has 5,166 grooves per centimeter. The central and first-order principal maxima are separated by 0.4B8 m on a wall 1.77 m from the grating. Determine the wavelength of the laser light 463x Your response differs from the comect answer by more than 10%. Double check your calculations. nm centimeter
Light from a laser strikes a diffraction grating that has 6500 grooves per centimeter. The interference...
Light from a laser strikes a diffraction grating that has 6500 grooves per centimeter. The interference pattern is observed on a wall 1.00 m from the grating. If the wavelength of the laser light is 454 nm, how far from the central maximum is the first order maximum?
Light from a laser strikes a diffraction grating that has 7127 slits per centimeter. The central...
Light from a laser strikes a diffraction grating that has 7127 slits per centimeter. The central and first-order maxima are separated by 35.1 cm on a wall 1.81 m from the grating. Determine the wavelength of the laser light.
Light from an argon laser strikes a diffraction grating that has 5,816 lines per cm. The...
Light from an argon laser strikes a diffraction grating that has 5,816 lines per cm. The central and first-order principal maxima are separated by 0.5 m on a wall 1.52 m from the grating. What is the wavelength of the laser light in nm? Enter an integer.
White light is spread out into its spectral components by a diffraction grating
White light is spread out into its spectral components by a diffraction grating. If the grating has 1960 grooves per centimeter, at what angle does red light of wavelength 640 nm appear in first order? (Assume that the light is incident normally on the gratings.)
White light is spread out into its spectral components by a diffraction grating. If the grating...
White light is spread out into its spectral components by a diffraction grating. If the grating has 1 970 grooves per centimeter, at what angle does red light of wavelength 640 nm appear in first order? (Assume that the light is incident normally on the gratings.) Mood Holn Bond It Montorit
(a) White light is spread out into its spectral components by a diffraction grating. If the...
(a) White light is spread out into its spectral components by a diffraction grating. If the grating has 2,070 grooves per centimeter, at what angle (in degrees) does red light of wavelength 640 nm appear in first order? (Assume that the light is incident normally on the gratings.) (b) What If? What is the angular separation (in degrees) between the first-order maximum for 640 nm red light and the first-order maximum for green light of wavelength 525 nm? 11. (-/1...
Light of wavelength 500 nm is incident normally on a diffraction grating. The third-order maximum of...
Light of wavelength 500 nm is incident normally on a diffraction grating. The third-order maximum of the diffraction pattern is observed at 32.0°. (a) What is the number of rulings per centimeter for the grating? grooves/cm (b) Determine the total number of primary maxima that can be observed in this situation.
A laser with a wavelength of 532 nm is aimed horizontally at a diffraction grating with 580 grooves per mm in a large, d...
A laser with a wavelength of 532 nm is aimed horizontally at a diffraction grating with 580 grooves per mm in a large, dark room. The grooves are oriented vertically. The laser is 2.7 m away from the diffraction grating, while a flat, white wall is 3.9 m behind the diffraction grating. Describe what appears on the wall and where.
Visible light passes through a diffraction grating that has 900 slits per centimeter, and the interference...
Visible light passes through a diffraction grating that has 900 slits per centimeter, and the interference pattern is observed on a screen that is 2.32 m from the grating. A) In the first-order spectrum, maxima for two different wavelengths are separated on the screen by 3.18 mm . What is the difference between these wavelengths? ___ m
Light from an argon laser strikes a dirfraction grating that has 5,166 grooves per centimeter. The central and first-order principal maxima are separated by 0.4B8 m on a wall 1.77 m from the grating. Determine the wavelength of the laser light 463x Your response differs from the comect answer by more than 10%. Double check your calculations. nm centimeter
White light is spread out into its spectral components by a diffraction grating. If the grating has 1 970 grooves per centimeter, at what angle does red light of wavelength 640 nm appear in first order? (Assume that the light is incident normally on the gratings.) Mood Holn Bond It Montorit
(a) White light is spread out into its spectral components by a diffraction grating. If the grating has 2,070 grooves per centimeter, at what angle (in degrees) does red light of wavelength 640 nm appear in first order? (Assume that the light is incident normally on the gratings.) (b) What If? What is the angular separation (in degrees) between the first-order maximum for 640 nm red light and the first-order maximum for green light of wavelength 525 nm? 11. (-/1...
Light of wavelength 500 nm is incident normally on a diffraction grating. The third-order maximum of the diffraction pattern is observed at 32.0°. (a) What is the number of rulings per centimeter for the grating? grooves/cm (b) Determine the total number of primary maxima that can be observed in this situation.
