A welding operation will take place on carbon steel. The desired welding speed is around 0.8...

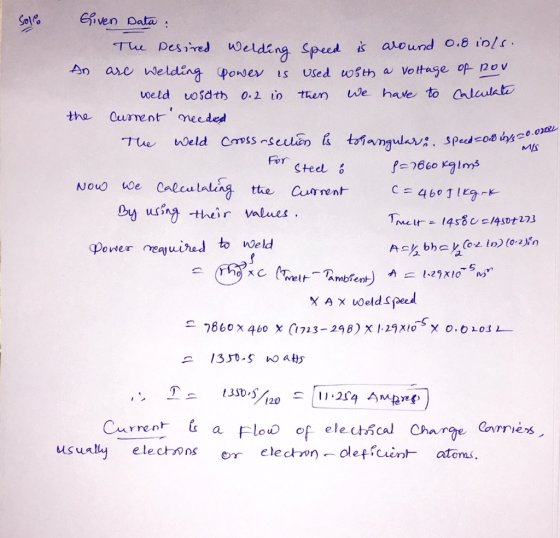

A welding operation will take place on carbon steel. The desired welding speed is around 0.8 in./s. If an arc welding power supply is used with a voltage of 120 V, what current is needed if the weld width is to be 0.2 in? Assume that the weld cross-section is triangular.
(Textbook: Manufacturing and Engineering technology (seventh edition), Author: Serope Kalpakjin)
*I will rate if answered in detail and good answer :)*
Homework Answers
