A resistance spot-welding operation performs a series of spot welds between two parts of sheet steel...

A resistance spot-welding operation performs a series of spot welds between two parts of sheet steel that are each 1/8 in thick. The steel has a unit melting energy = 130 Btu/in3. Weld duration is set at 0.25 sec, and current = 11,000 amp. The weld nugget has a diameter = 0.30 in. Experience has shown that 50% of the supplied heat melts the nugget, and the rest is dissipated. If the electrical resistance between the surfaces is 125 micro-ohms, what is the average thickness of the weld nugget assuming it is disk-shaped (a short cylinder)?

Textbook: Manufacturing of engineering and technology: 7th edition: author: serope Kalpakjian

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A resistance spot-welding operation performs a series of spot welds between two parts of sheet steel...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A resistance seam-welding operation is performed on two pieces of 3-mm-thick austenitic stainless steel to fabricate...

    A resistance seam-welding operation is performed on two pieces of 3-mm-thick austenitic stainless steel to fabricate a container. The weld current in the operation is 12,000 amps, the weld duration = 0.25 sec and the resistance at the interface is 90 micro‑ohms. Continuous motion welding is used, with 250-mm-diameter electrode wheels. The individual weld nuggets formed in this RSEW operation have diameter = 8 mm and thickness = 4 mm (assume the weld nuggets are disc‑shaped). These weld nuggets must...

  • B1) 20 pts. The thickness of each of the two sheets to be resistance spot welded...

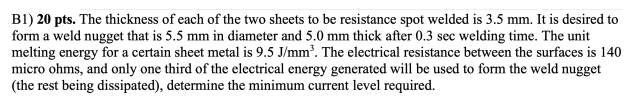

    B1) 20 pts. The thickness of each of the two sheets to be resistance spot welded is 3.5 mm. It is desired to form a weld nugget that is 5.5 mm in diameter and 5.0 mm thick after 0.3 sec welding time. The unit melting energy for a certain sheet metal is 9.5 J/mm². The electrical resistance between the surfaces is 140 micro ohms, and only one third of the electrical energy generated will be used to form the weld...
