3. Atwood’s Machine. (a) The 3 kg weight is initially held still so that the system...

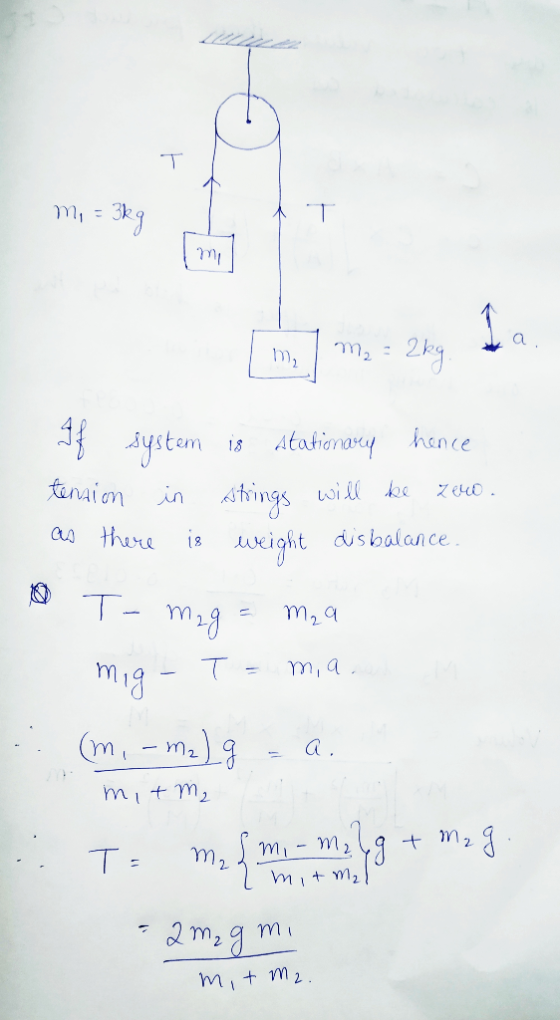

3. Atwood’s Machine.
(a) The 3 kg weight is initially held still so that the system is
stationary. What is the tension in the string
at this time. Second block is 2 kg.
(b) The weight is then released. Does the tension in the string
stay the same, get smaller or get larger?

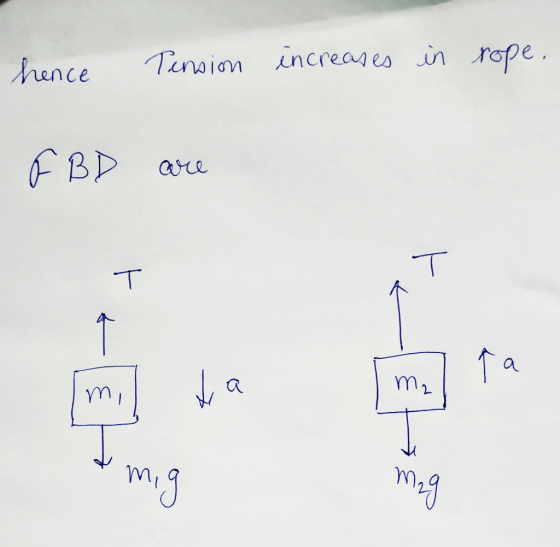

(c) To answer the question in part (b) quantitatively, draw free
body diagrams for each block separately.
Then write down an expression for the net force on each assuming
tension is an unknown quantity T.
Apply Newton’s second law in each case. Hence find the acceleration
of the blocks and the tension in
the string.
Homework Answers
