Question

Lab # 8      The Fan class (Chapter 9:Programming Exercise 9.8)         CSCI 1302

Design a class named Fan to represent a fan. The class contains:

■ Three constants named SLOW, MEDIUM, and FAST with the values 1, 2, and 3 to denote the fan speed.

■ A private int data field named speed that specifies the speed of the fan (the default is SLOW).

■ A private boolean data field named on that specifies whether the fan is on (the default is false).

■ A private double data field named radius that specifies the radius of the fan (the default is 5).

■ A string data field named color that specifies the color of the fan (the default is blue).

■ The accessor and mutator methods for all four data fields.

■ A no-arg constructor that creates a default fan.

■ A method named toString() that returns a string description for the fan. If the fan is on, the method returns the fan speed, color, and radius in one combined string. If the fan is not on, the method returns the fan color and radius along with the string “fan is off” in one combined string.

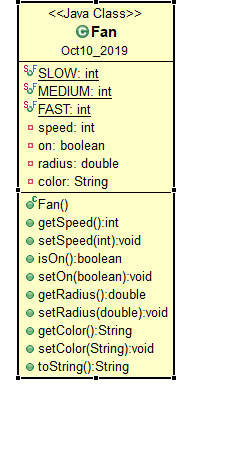

Draw the UML diagram for the class and then implement the class. Write a test program that creates two Fan objects. Assign maximum speed, radius 10, color yellow, and turn it on to the first object. Assign medium speed, radius 5, color blue, and turn it off to the second object. Display the objects by invoking their toString method.

Please write in Java

Answer 1

class Fan {
   public static final int SLOW = 1;
   public static final int MEDIUM = 2;
   public static final int FAST = 3;
   private int speed;
   private boolean on;
   private double radius;
   private String color;

   /**
   * @param aSpeed
   * @param aOn
   * @param aRadius
   * @param aColor
   */
   public Fan() {
       super();
       speed = SLOW;
       on = false;
       radius = 5;
       color = "Blue";
   }

   public int getSpeed() {
       return speed;
   }

   public void setSpeed(int aSpeed) {
       speed = aSpeed;
   }

   public boolean isOn() {
       return on;
   }

   public void setOn(boolean aOn) {
       on = aOn;
   }

   public double getRadius() {
       return radius;
   }

   public void setRadius(double aRadius) {
       radius = aRadius;
   }

   public String getColor() {
       return color;
   }

   public void setColor(String aColor) {
       color = aColor;
   }

   @Override
   public String toString() {
       if (on)
           return "Speed : " + speed + " Radius : " + radius + ", Color : " + color;
       else
           return "Radius : " + radius + ", Color : " + color + " fan is off";

   }

}

public class TestFan {
   public static void main(String[] args) {
       Fan f1 = new Fan();
       f1.setSpeed(Fan.FAST);
       f1.setColor("yellow");
       f1.setRadius(10);
       f1.setOn(true);
       System.out.println(f1);
       Fan f2 = new Fan();
       f2.setColor("blue");
       f2.setSpeed(Fan.MEDIUM);
       f2.setRadius(5);
       f2.setOn(false);
       System.out.println(f2);

   }
}

Note : Please save file name as TestFan.java

if you face any errors please comment the errors

Note : Please comment below if you have concerns. I am here to help you

If you like my answer please rate and help me it is very Imp for me
