Make Routh tables and tell how many roots of the following two
polynomials are in the right half-plane and in the left
half-plane.

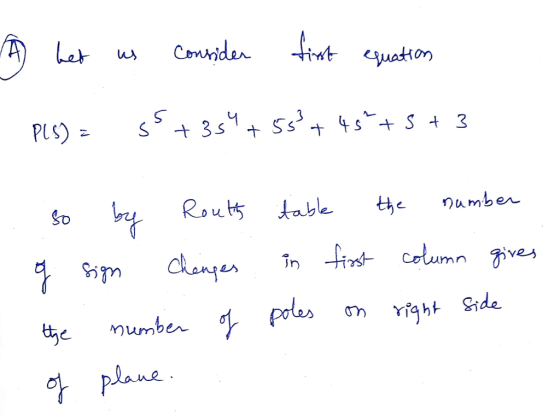

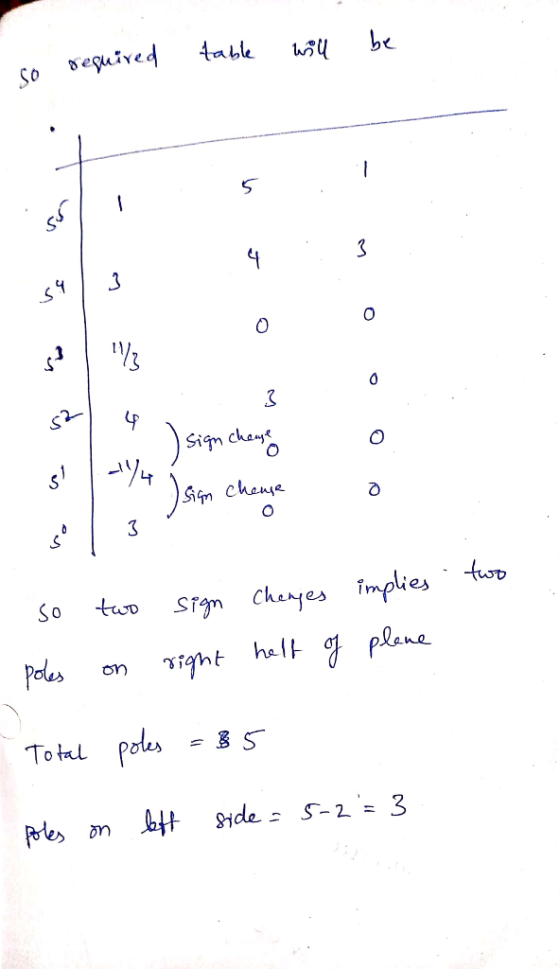

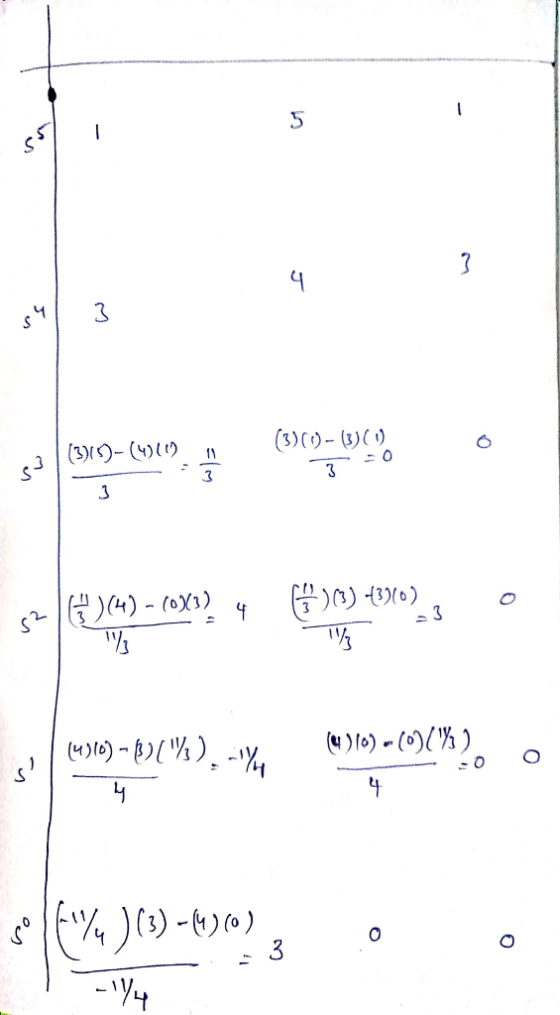

P(s)=s5 +3s4 +5s3 +4s2 + s + 3 (1)

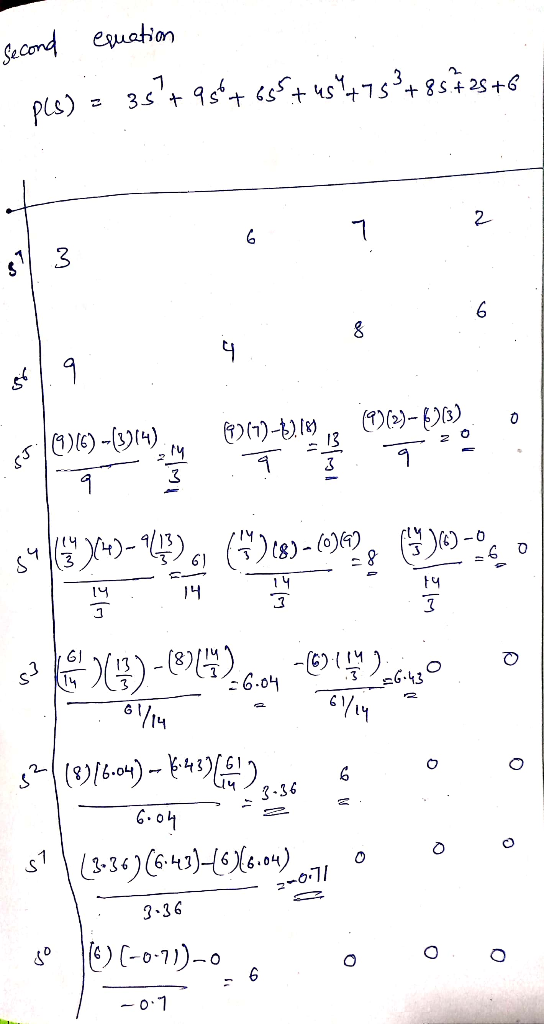

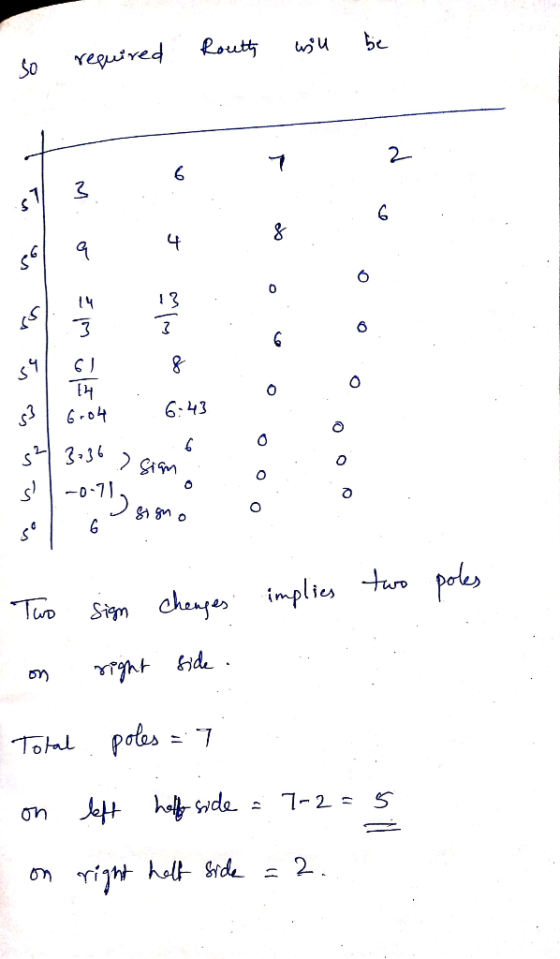

P(s)=3 s7 +9s6 +6s5 +4s4 +7s3 +8s2 +2s + 6 (2)
Please show all calculation in detail to the last detail

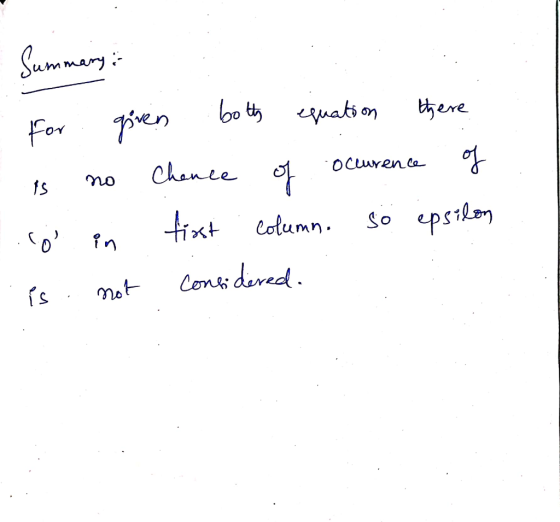

Use epsilon for zero
Thanks
Homework Answers
Add Answer to:
Make Routh tables and tell how many roots of the following two
polynomials are in the...
Make a Routh table and tell how many roots of the following polynomial are in the...

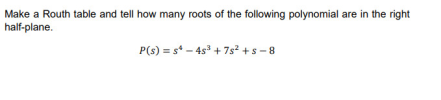

Make a Routh table and tell how many roots of the following polynomial are in the right half-plane. P(s) = s4 - 453 + 7s2 +s - 8
