Derive formula for diffraction of two slits in far field approximation. The width of each slit...

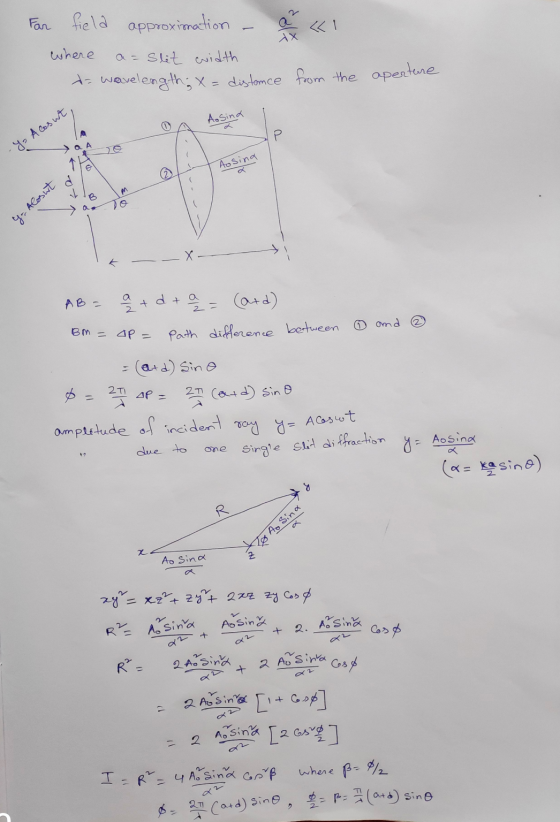

Derive formula for diffraction of two slits in far field approximation. The width of each slit is a, the distance between the slit centers d and a screen is placed at distance X from the slits where the diffraction pattern is observed (X>>a,d). Slits are illuminated with a plane wave that has wavelength lambda (lambda<<a,d).
Homework Answers
Add Answer to:
Derive formula for diffraction of two slits in far field
approximation. The width of each slit...
A system of vertical slits is illuminated by a laser of the wavelength 600 nm. The diffraction pattern is observed on a screen at a distance of 2.4 m. The intensity distribution is shown in the figur...
A system of vertical slits is illuminated by a laser of the wavelength 600 nm. The diffraction pattern is observed on a screen at a distance of 2.4 m. The intensity distribution is shown in the figure right. The horizontal distance of the screen is 160 mm. a) How many slits were illuminated? b) What was the distance between the slits? c) Calculate the width of the slits d) Calculate the width of the central maximum. 5.
A system of...
Consider double slit experiment with two slits are separated by d=0,715 mm
Consider double slit experiment with two slits are separated by d=0.715 mm and each slit width is 0.00321 mm. Screen is placed L=1.28 m away from the slits. a) Derive an algebraic equation to find linear distance of interference bright fringe on the screen from central bright (central maxima) fringe? b) Consider interference pattern due to light of unknown wavelength and linear separation between 2 and 5" bright fringes is 3.05 mm. Find the wavelength of the light? c) Now consider double slit...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 697 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.67 m and the distance between the two slits is 0.104 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 517 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.3 m and the distance between the two slits is 0.118 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
Light of wavelength lambda and frequency f passes through a single slit of width a. The...
Light of wavelength lambda and frequency f passes through a single slit of width a. The diffraction pattern is observed on a screen a distance x from the slit. Winch of the following will decrease the width of the central maximum? Decrease the slit width; decrease the frequency f of the light; decrease the wavelength lambda of the light; decrease the distance x of the screen from the slit. In each case justify your answer.
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is...
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...
A screen is placed 49.0 cm from a single slit, which is illuminated with light of...
A screen is placed 49.0 cm from a single slit, which is
illuminated with light of wavelength 684 nm. If the distance
between the first and third minima in the diffraction pattern is
2.80 mm, what is the width of the slit?
A screen is placed 49.0 cm from a single slit, which is illuminated with light of wavelength 684 nm. If the distance between the first and third minima in the diffraction pattern is 2.80 mm, what is the...
The single-slit diffraction pattern shown in the Figure was produced with red light of wavelength lambda...
The single-slit diffraction pattern shown in the Figure was produced with red light of wavelength lambda = 633 nm. The screen on which the pattern was projected was located a distance D = 2.0m from the slit. The slit has a width of a = 0.30mm. What is the width w of the central maximum? (The width is equal to the distance between the two first diffraction minima located on either side of the center.)
*Question 246: Interference/Diffraction Two Slits A two slit Fraunhoffer diffraction-interference pattern is observed with light of...
*Question 246: Interference/Diffraction Two Slits A two slit Fraunhoffer diffraction-interference pattern is observed with light of wavelength 700 nm. The slits have a width a = 0.01 mm and a separation d = 0.2 mm. How many bright fringes will be seen in the central diffraction maximum? Select one a. 38 b. 19 ec. 20 d. 3 e. 39
1) Two narrow slits are 0.25mm apart. They are illuminated by light from a helium–neon laser...
1) Two narrow slits are 0.25mm apart. They are illuminated by light from a helium–neon laser with a wavelength of 633nm, and the interference pattern is observed on a screen 49cm from the slits. (a) What is the angle between the zero-order maximum and one of the first-order images? (b) What is the distance between the two first-order images? 2) The m=3 maximum is located 3cm from the m=0 image when monochromatic radiation illuminates a double slit. The screen is...
A system of vertical slits is illuminated by a laser of the wavelength 600 nm. The diffraction pattern is observed on a screen at a distance of 2.4 m. The intensity distribution is shown in the figure right. The horizontal distance of the screen is 160 mm. a) How many slits were illuminated? b) What was the distance between the slits? c) Calculate the width of the slits d) Calculate the width of the central maximum. 5.
A system of...
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...
A screen is placed 49.0 cm from a single slit, which is
illuminated with light of wavelength 684 nm. If the distance
between the first and third minima in the diffraction pattern is
2.80 mm, what is the width of the slit?
A screen is placed 49.0 cm from a single slit, which is illuminated with light of wavelength 684 nm. If the distance between the first and third minima in the diffraction pattern is 2.80 mm, what is the...
The single-slit diffraction pattern shown in the Figure was produced with red light of wavelength lambda = 633 nm. The screen on which the pattern was projected was located a distance D = 2.0m from the slit. The slit has a width of a = 0.30mm. What is the width w of the central maximum? (The width is equal to the distance between the two first diffraction minima located on either side of the center.)
*Question 246: Interference/Diffraction Two Slits A two slit Fraunhoffer diffraction-interference pattern is observed with light of wavelength 700 nm. The slits have a width a = 0.01 mm and a separation d = 0.2 mm. How many bright fringes will be seen in the central diffraction maximum? Select one a. 38 b. 19 ec. 20 d. 3 e. 39
