A group of students are using resonance to determine the temperature of the air in their...

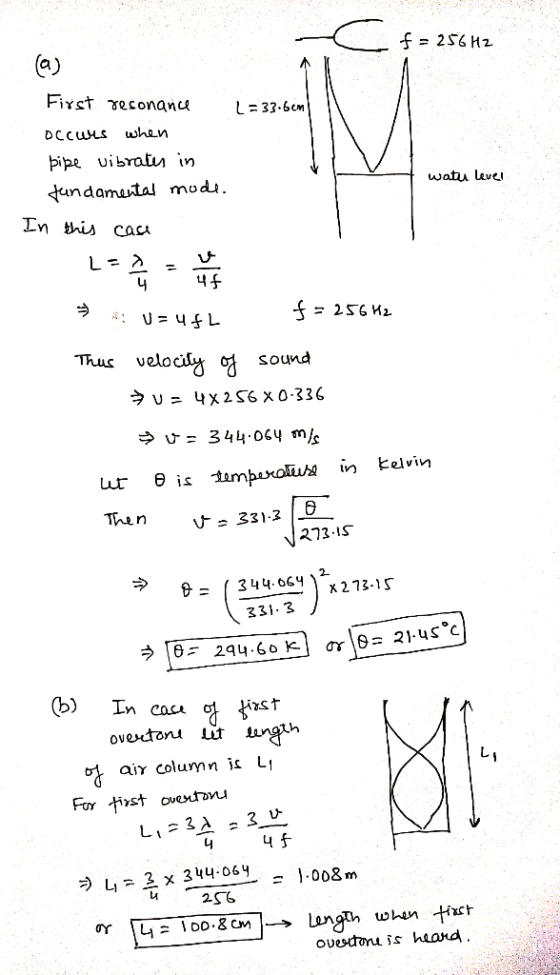

A group of students are using resonance to determine the temperature of the air in their laboratory. They use a tunning fork producing a 256 Hz tone. The fork is placed near the opening of a tube filled with water. The water is slowly let out until a resonant mode is heard. (a) Calculate the air temperature if the height of the water level is 33.6 cm at rst resonance. (b) Find the height of the water level when the first overtone is heard.
Thank you in advance!
Homework Answers
Add Answer to:
A group of students are using resonance to determine the
temperature of the air in their...
A resonance tube can be used to measure the speed of sound in air. A tuning...
A resonance tube can be used to measure the speed of sound in air. A tuning fork is held above the opening of the tube and struck, while the far end of the tube is lengthened or shortened. Resonances (loudnesses) are heard at a series of tube lengths, L, which are carefully measured. resonance tube The speed of sound in air is determined by measuring the distance between two consecutive resonances. A data set for a tuning fork with a...
1. Students in a physics lab are asked to find the length of an air column...
1. Students in a physics lab are asked to find the length of an air column in a tube close at one end that has a fundamental frequency of 341.3 Hz They hold the tube vertically and fill it with water to the top, then lower the water while a 341.3 Hz tuning fork is rung and listen for the first resonance. A. What is the air temperature if the resonance occurs for a length of 0.2483 m? (use velocity...
A tuning fork with a frequency of f = 536 Hz is placed near the top...
A tuning fork with a frequency of f = 536 Hz is placed near the top of the tube shown below. The water level is lowered so that the length L slowly increases from an initial value of 20.0 cm. Determine the next two values of L that correspond to resonant modes. (Assume that the speed of sound in air is 343 m/s.) shorter length m longer length m
Thank you and I appreciate your help and time in advance! L = N (l/4), N...
Thank you and I appreciate your help and time in advance!
L = N (l/4), N = 1, 3, 5
…
(1)
Where L is the length of the air column and N is an odd
integer.
When N = 1, the column has a length one quarter of wavelength
with a node at the water surface and an antinode at the opening.
Then the wavelength
L1= (1/4) l, or l=
4L1.
(2)
When N = 3, with...
