There are limitations to using Bernoulli's equation to solve engineering problems. Which of the following situations...

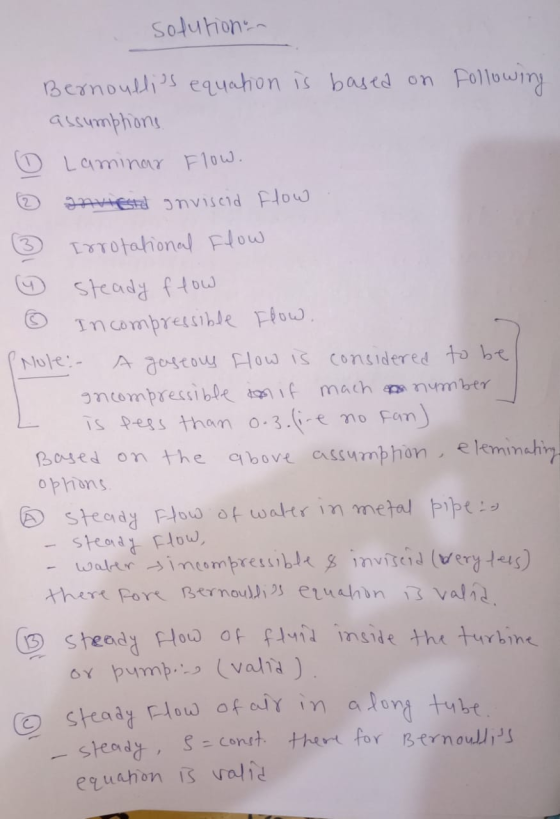

There are limitations to using Bernoulli's equation to solve engineering problems. Which of the following situations will not give a valid answer for quantities in Bernoulli's Equation?
A. Steady flow of water in a metal pipe
B. Steady flow of fluid inside of a turbine or pump
C. Steady flow of air in a long tube

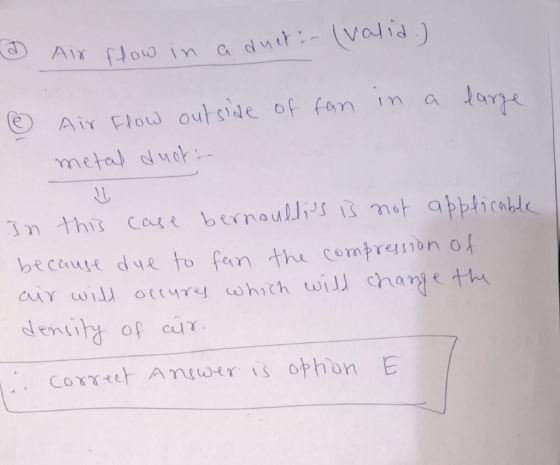

D. Air flow in a duct with a pitot tube present
E. Air flow outside of a fan in a large metal duct
Homework Answers
