For the pair of vectors A = (2.00î + 6.00ĵ) and B = (9.00î − 2.00ĵ)...

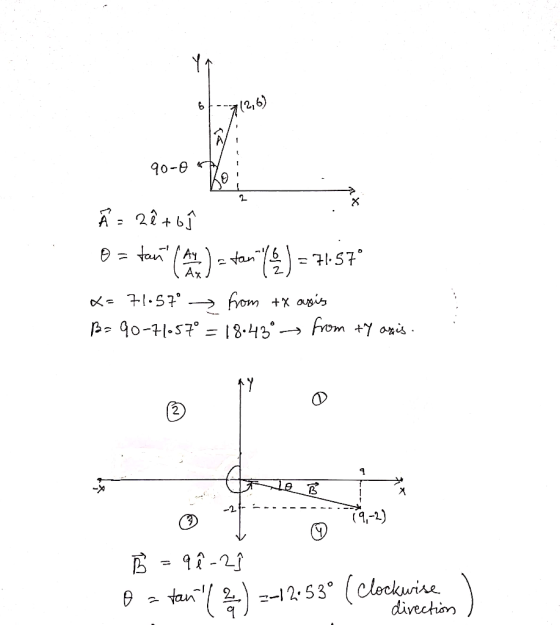

For the pair of vectors A = (2.00î + 6.00ĵ) and B = (9.00î − 2.00ĵ) in the xy plane, determine the following. (Enter all angle answers between 0 and 180°.)
(a) The scalar product A · B =
(b) The angle θ between the vectors θ = °
(c) The angles α and β which are respectively the (smallest) angles between the vector A and the positive x and positive y axes α = ° β = °
(d) The angles γ and δ, which are respectively the (smallest) angles between the vector B and the positive x and positive y axes γ = ° δ = °
