You are to design an enclosure for a power electronics apparatus. You know the interference frequency...

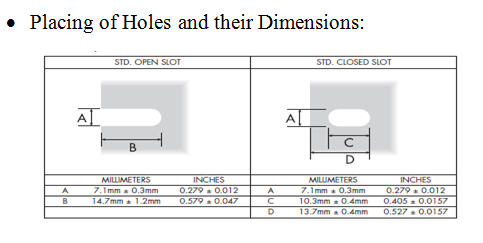

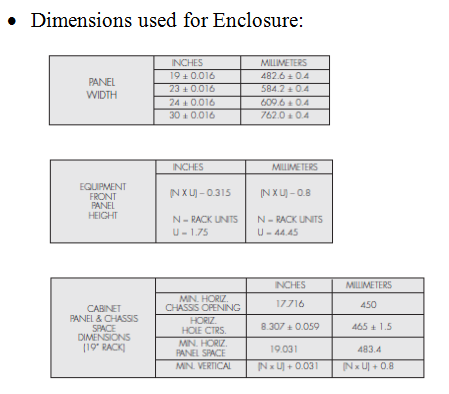

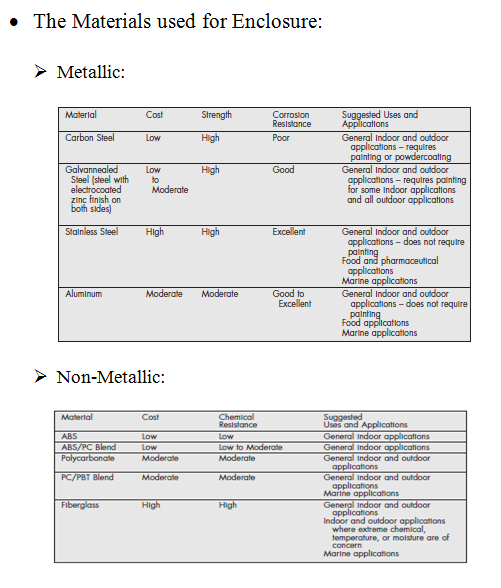

You are to design an enclosure for a power electronics apparatus. You know the interference frequency content inside the enclosure. The main task is to prevent radiated EMI. What are the important basic rules in the enclosure design? Consider: The material of enclosure and wall thickness, size and placing of holes

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
You are to design an enclosure for a power electronics apparatus. You know the interference frequency...
