Consider a series RC circuit (Fig. 21.25) for which R = 6.00 M, C = 3.00...

Question

Question

Consider a series RC circuit (Fig. 21.25) for which R = 6.00 M, C = 3.00 µF, and e m f = 31.0 V. Figure 21.25

(a) Find the time constant of the circuit after the switch is closed. Correct: Your answer is correct.

18s

(b) Find the maximum charge on the capacitor after the switch is closed. Correct: Your answer is correct.

93µC

(c) Find the charge in the capacitor 10.0 s after the switch is closed.

NEED HELP ON PART C ALL STEPS PLEASE...

science physics

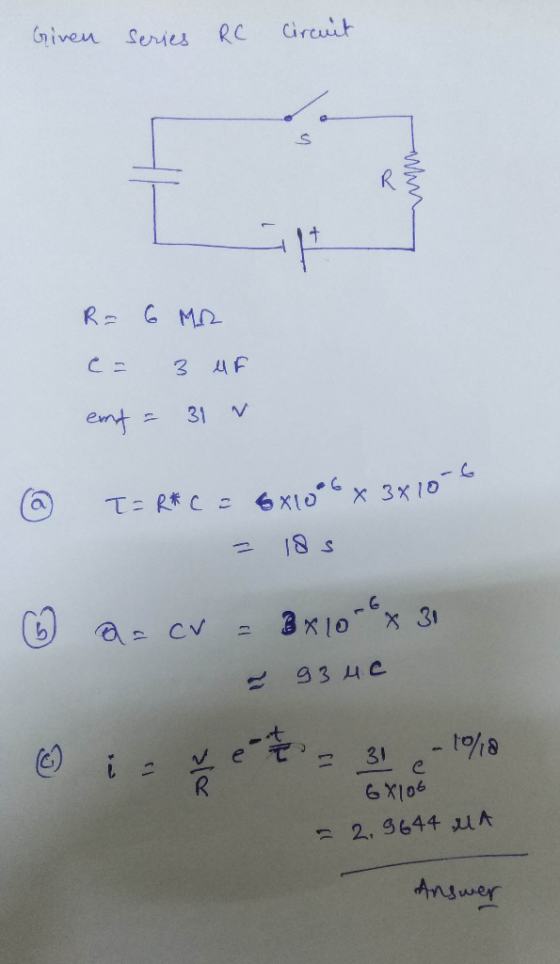

Answer 1

Answer #1

Answer 2
