A flywheel(disk) initially spinning at 1850 rpm counterclockwise is brought to rest in 3.00 minutes. a)...

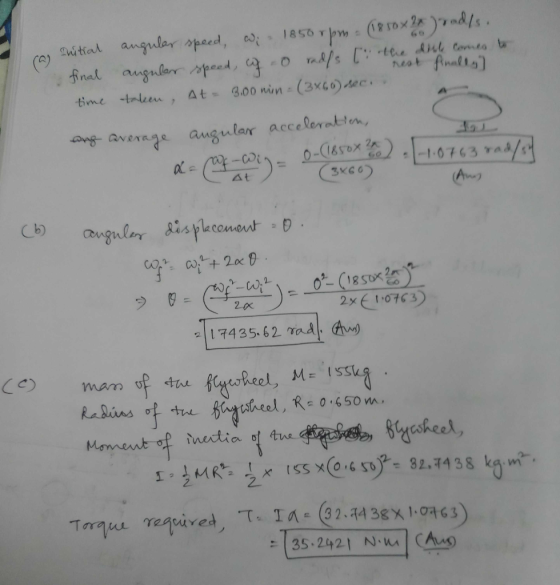

A flywheel(disk) initially spinning at 1850 rpm counterclockwise is brought to rest in 3.00 minutes. a) What is the wheel’s average angular acceleration? b) What is the angular displacement of the flywheel during this acceleration? c) If the flywheel has a mass of 155 kg and a radius of 0.650 m, what torque was required to accelerate it?
Homework Answers
Add Answer to:
A flywheel(disk) initially spinning at 1850 rpm counterclockwise
is brought to rest in 3.00 minutes. a)...
While spinning down from 500.0 rpm to rest, a solid uniform flywheel does 3.2 kJ of...
While spinning down from 500.0 rpm to rest, a solid uniform flywheel does 3.2 kJ of work. If the radius of the disk is 1.2 m, what is its mass? While spinning down from 500.0 rpm to rest, a solid uniform flywheel does 3.2 kJ of work. If the radius of the disk is 1.2 m, what is its mass? 2.7 kg 3.7 kg 4.2 kg 3.2 kg
A flywheel in the form of a uniformly thick disk of radius 1.23 m has a...
A flywheel in the form of a uniformly thick disk of radius 1.23 m has a mass of 83.6 kg and spins counterclockwise at 137 rpm. Calculate the constant torque required to stop it in 2.75 min. constant torque: ______ Nm
1.A flywheel rotating at 12 rev/s is brought to rest in 5 s. The magnitude of...
1.A flywheel rotating at 12 rev/s is brought to rest in 5 s. The magnitude of the average angular acceleration in rad/s2 of the wheel during this process is: 2.The coefficient of static friction between a certain cylinder and a horizontal floor is 0.50. If the rotational inertia of the cylinder about its symmetry axis is given by I = (1/2)MR2, then the magnitude of the maximum acceleration in m/s2 the cylinder can have without sliding is: 3.A playground merry-go-round...
A flywheel in the form of a uniformly thick disk of radius 1.88 m, has a...
A flywheel in the form of a uniformly thick disk of radius 1.88 m, has a mass of 36.6 kg and spins counterclockwise at 371 rpm. Calculate the constant torque required to stop it in 2.75 min.
A flywheel in the form of a uniformly thick disk of radius 2.03 m has a...
A flywheel in the form of a uniformly thick disk of radius 2.03 m has a mass of 14.1 kg and spins counterclockwise at 213 rpm. Calculate the constant torque required to stop it in 4.50 min.
A flywheel in the form of a uniformly thick disk of radius 1.08 m has a...
A flywheel in the form of a uniformly thick disk of radius 1.08 m has a mass of 72.6 kg and spins counterclockwise at 413 rpm. Calculate the constant torque required to stop it in 1.25 min.
A flywheel in the form of a uniformly thick disk of radius 1.73 m has a...
A flywheel in the form of a uniformly thick disk of radius 1.73 m has a mass of 28.6 kg and spins counterclockwise at 283 rpm . Calculate the constant torque required to stop it in 2.25 min .
A flywheel in the form of a uniformly thick disk of radius 1.53 m has a...
A flywheel in the form of a uniformly thick disk of radius 1.53 m has a mass of 32.6 kg and spins counterclockwise at 113 rpm . Calculate the constant torque required to stop it in 2.25 min .
an 8kg flywheel of radius r is initially at rest. assume the radius of the gyration kG= 0.12m and the radius of the flywheel r = 0.125m. an object B also of mass 8 kg is attached to a cord that is wra...
an 8kg flywheel of radius r is
initially at rest. assume the radius of the gyration kG= 0.12m and
the radius of the flywheel r = 0.125m. an object B also of mass 8
kg is attached to a cord that is wrapped around a periphery of the
flywheel. the fly wheel starts to rotate clockwise with angular
velocity. the rotation is resisted by a constant frictional torque
mf in the bearing 1Nm. use the work energy principle to determine...
A flywheel is a solid, rotating disk that is sometimes used to store energy. The moment...
A flywheel is a solid, rotating disk that is sometimes used to store energy. The moment of inertia for a solid disk is 1/2MR^2 where M is the mass and R is the radius. If a flywheel weighs 15kg and has a radius of 0.8m, determine the following. A) If a point on the outside of the disk is moving at 6 m/s, what is the angular velocity of the flywheel? B) If the flywheel starts from rest...
an 8kg flywheel of radius r is
initially at rest. assume the radius of the gyration kG= 0.12m and
the radius of the flywheel r = 0.125m. an object B also of mass 8
kg is attached to a cord that is wrapped around a periphery of the
flywheel. the fly wheel starts to rotate clockwise with angular
velocity. the rotation is resisted by a constant frictional torque
mf in the bearing 1Nm. use the work energy principle to determine...
