A flywheel in the form of a uniformly thick disk of radius 1.23 m has a...

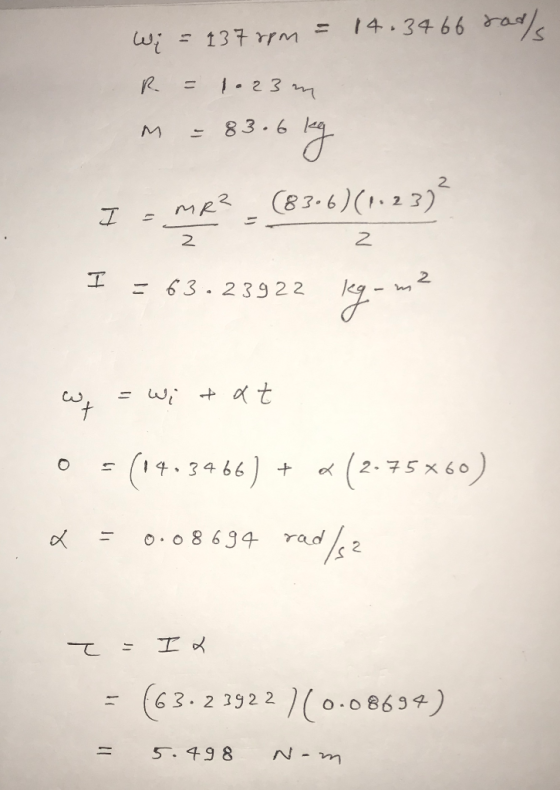

A flywheel in the form of a uniformly thick disk of radius 1.23 m has a mass of 83.6 kg and spins counterclockwise at 137 rpm. Calculate the constant torque required to stop it in 2.75 min.
constant torque: ______ Nm
Homework Answers
Add Answer to:
A flywheel in the form of a uniformly thick disk of radius 1.23
m has a...
A flywheel in the form of a uniformly thick disk of radius 1.88 m, has a...
A flywheel in the form of a uniformly thick disk of radius 1.88 m, has a mass of 36.6 kg and spins counterclockwise at 371 rpm. Calculate the constant torque required to stop it in 2.75 min.
A flywheel in the form of a uniformly thick disk of radius 2.03 m has a...
A flywheel in the form of a uniformly thick disk of radius 2.03 m has a mass of 14.1 kg and spins counterclockwise at 213 rpm. Calculate the constant torque required to stop it in 4.50 min.
A flywheel in the form of a uniformly thick disk of radius 1.08 m has a...
A flywheel in the form of a uniformly thick disk of radius 1.08 m has a mass of 72.6 kg and spins counterclockwise at 413 rpm. Calculate the constant torque required to stop it in 1.25 min.
A flywheel in the form of a uniformly thick disk of radius 1.73 m has a...
A flywheel in the form of a uniformly thick disk of radius 1.73 m has a mass of 28.6 kg and spins counterclockwise at 283 rpm . Calculate the constant torque required to stop it in 2.25 min .
A flywheel in the form of a uniformly thick disk of radius 1.53 m has a...
A flywheel in the form of a uniformly thick disk of radius 1.53 m has a mass of 32.6 kg and spins counterclockwise at 113 rpm . Calculate the constant torque required to stop it in 2.25 min .
A flywheel(disk) initially spinning at 1850 rpm counterclockwise is brought to rest in 3.00 minutes. a)...
A flywheel(disk) initially spinning at 1850 rpm counterclockwise is brought to rest in 3.00 minutes. a) What is the wheel’s average angular acceleration? b) What is the angular displacement of the flywheel during this acceleration? c) If the flywheel has a mass of 155 kg and a radius of 0.650 m, what torque was required to accelerate it?
The 40-lb flywheel A has a radius of gyration about its center of 4 in. Disk...
The 40-lb flywheel A has a radius of gyration about its center of 4 in. Disk B weighs 55 lb and is coupled to the flywheel by means of a belt which does not slip at its contacting surfaces. A motor supplies a counterclockwise torque to the flywheel of M = (50t) lb. ft, where t is in seconds. (Figure 1) Figure < 1 of 1 M = (501) lb. ft 9 in. 6 in. А B Part A Determine...
A grinding wheel is in the form of a uniform solid disk of radius 6.93 cm...
A grinding wheel is in the form of a uniform solid disk of radius 6.93 cm and mass 2.02 kg. It starts from rest and accelerates uniformly under the action of the constant torque of 0.597 N · m that the motor exerts on the wheel. How long does the wheel take to reach its final operating speed of 1300 rev/min? Through how many revolutions does it turn while accelerating?
A grinding wheel in the form of a uniform solid disk of radius 6 cm and...
A grinding wheel in the form of a uniform solid disk of radius 6 cm and mass 1.2 kg. It starts from rest and accelerates uniformly under the action of the constant torque of 0.879 N*m. (a) How long does it take the wheel to reach its operating speed of 1200 rev/min? (b) How many full rotations does it make before coming to its operating speed?
A solid cast iron disk 1m in diameter & 0.2 m thick, is used as a...
A solid cast iron disk 1m in diameter & 0.2 m thick, is used as a flywheel. it is rotating at 350 rpm. it is brought to rest in 1.5 s by means of a brake. calculate : 1. the energy absorbed by the brake 2. torque capacity of brake
The 40-lb flywheel A has a radius of gyration about its center of 4 in. Disk B weighs 55 lb and is coupled to the flywheel by means of a belt which does not slip at its contacting surfaces. A motor supplies a counterclockwise torque to the flywheel of M = (50t) lb. ft, where t is in seconds. (Figure 1) Figure < 1 of 1 M = (501) lb. ft 9 in. 6 in. А B Part A Determine...
